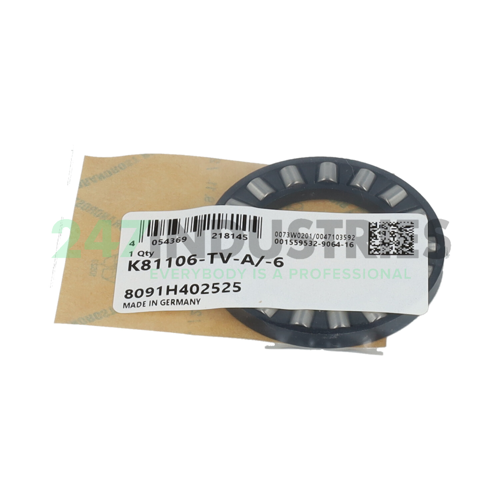

K81106-TV-A/0-8 INA

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 47
3. Width (B) MM 5
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.1969
7. Cage outer diameter (D c) mm 47

Suffix description

1. TN Solid Cage Of Glass-Fibre Reinforced Polyamide, Ball Riding
2. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
3. /0-8 Micron - Needle Sort

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number K81106-TV-A/0-8 INA
4. Also known as 0015595329064

5. EAN 4054369218145
6. Category Cylindrical Roller Bearing with Cage (assembly)

Weight and Dimensions

1. Weight (kg) 0.017

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision Standard Precision

Data from Schaeffler (medias)

1. Axial Static Load Rating C0a (N) 86000
2. Axial Dynamic Load Rating Ca (N) 35500
3. Limiting speed (n G) 7500
4. Reference speed (n ϑr) 3050
5. ECLASS number 23-05-11-90
6. ECLASS2 number 23-05-11-90
7. Medias description Axial cylindrical roller and cage assembly K811, single direction, suitable for combination with axial bearing washers
