K81110-TV-A/0-8 INA

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 70
3. Width (B) MM 6
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 2.7559
6. Width (B) Inch 0.2362
7. Cage outer diameter (D c) mm 70

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number K81110-TV-A/0-8 INA
4. Also known as 0015658859064

5. EAN 4012802369267
6. Category Cylindrical Roller Bearing with Cage (assembly)

Weight and Dimensions

1. Weight (kg) 0.052

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision Standard Precision

Data from Schaeffler (medias)

1. Axial Static Load Rating C0a (N) 177000
2. Axial Dynamic Load Rating Ca (N) 62000
3. Limiting speed (n G) 4900
4. Reference speed (n ϑr) 1840
5. ECLASS number 23-05-11-90
6. ECLASS2 number 23-05-11-90

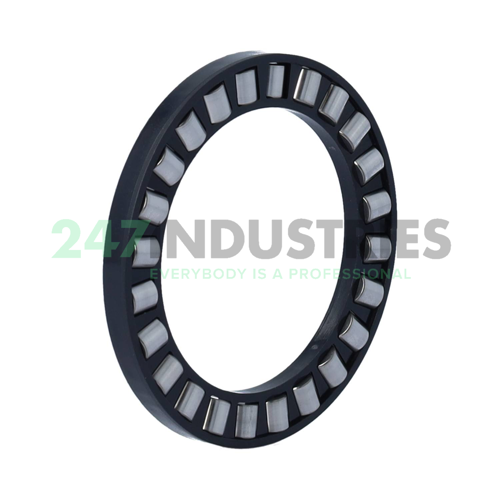

7. Medias description Axial cylindrical roller and cage assembly K811, single direction, suitable for combination with axial bearing washers
