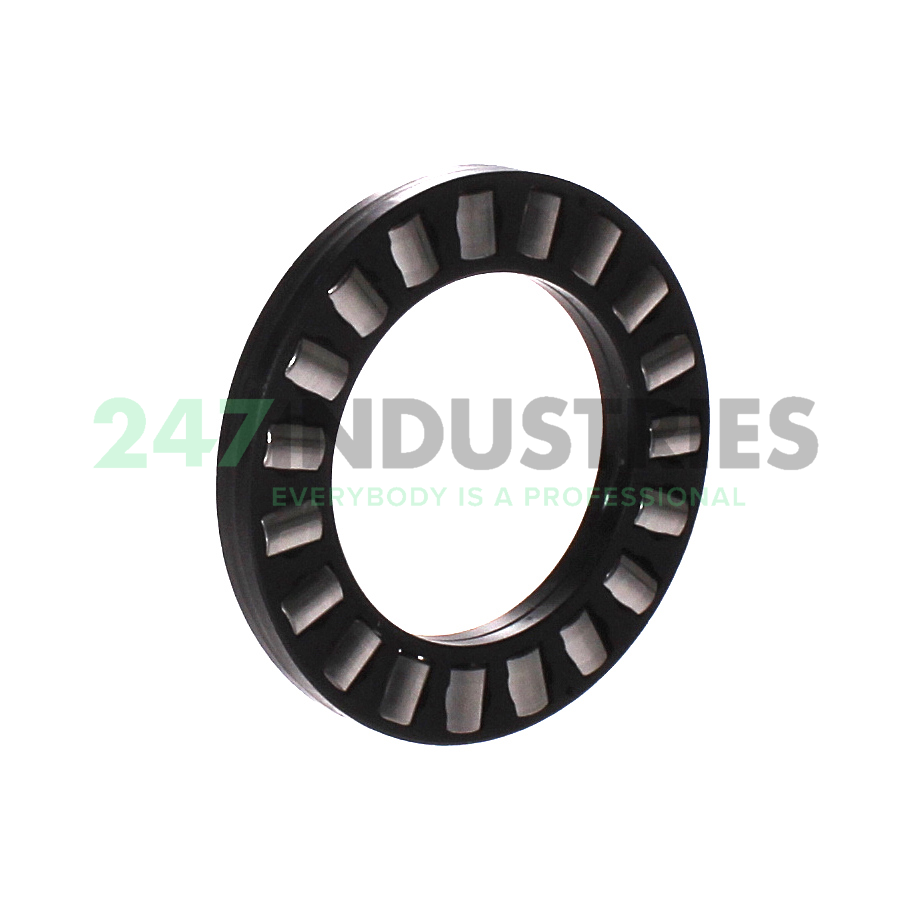

K81210-TV/0-8 INA

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 78
3. Width (B) MM 9
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 3.0709
6. Width (B) Inch 0.3543
7. Cage outer diameter (D c) mm 78

Suffix description

1. TV Solid Cage Of Glass-Fibre Reinforced Polyamide, Ball Riding
2. /0-8 Micron - Needle Sort

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number K81210-TV/0-8 INA
4. Also known as 0006064569064
   K81210TN

5. EAN 4047643187558
6. Category Cylindrical Roller Bearing with Cage (assembly)

Weight and Dimensions

1. Weight (kg) 0.098

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision Standard Precision

Data from Schaeffler (medias)

1. Axial Static Load Rating C0a (N) 315000
2. Axial Dynamic Load Rating Ca (N) 118000
3. Limiting speed (n G) 4500
4. Reference speed (n ϑr) 1550
5. ECLASS number 23-05-11-90
6. ECLASS2 number 23-05-11-90
7. Medias description Axial cylindrical roller and cage assembly K812, single direction, suitable for combination with axial bearing washers
