KB12-PP-RROC-AS INA

KB12-PP-RROC-AS

Stock
2 pcs in stock and ready for shipment
Brand INA
Article number KB12-PP-RROC-AS INA
Inside diameter 12mm
Outside diameter 22mm
Width 32mm
Product description

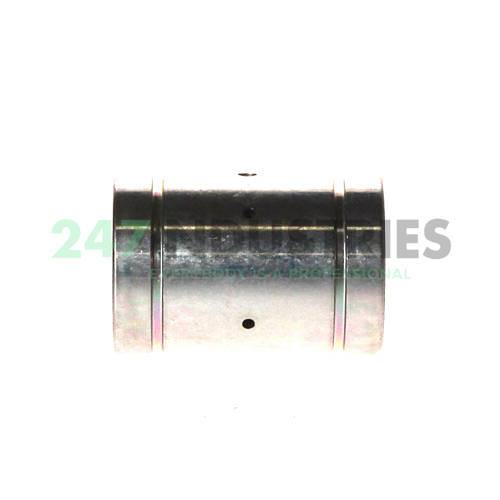

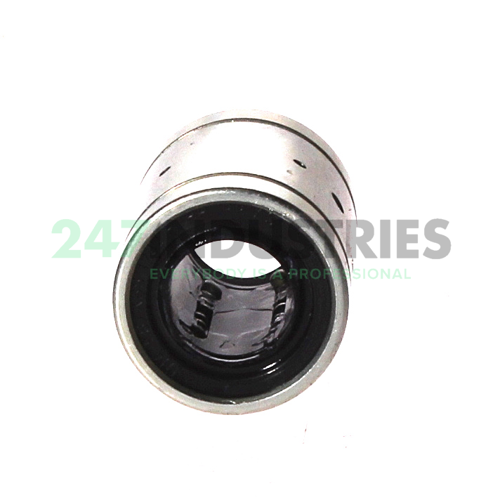

The KB12-PP-RROC-AS INA is a ball bushing or linear ball bearing from INA's machined range. These ball bushings are particularly durable and they have a high running accuracy. The balls run with great precision thanks to a special spring washer. The result is low and even displacement resistance, also under severe operating conditions and regardless of the installed position.

This ball bushing has a Corrotect finish protecting against corrosion. The closed design makes this bearing suitable for use on unsupported shafts. The outer ring accommodates a plastic cage and balls. When the ball bushing is in motion, the rolling elements follow a trajectory returning through openings in the outer ring.

Read more Show less
Help with this product

Downloads and links

Similar to: KB12-PP-RROC-AS INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 12
  2. Outer (D) MM 22
  3. Width (B) MM 32
  4. Inner (d) Inch 0.4724
  5. Outer (D) Inch 0.8661
  6. Width (B) Inch 1.2598

Suffix description

  1. PP Lip Seal On Both Sides Of Bearing
  2. RROC Protected Against Corrosion By Corrotect® Special Coating - Cr(VI)-Free
  3. AS Lubrication Holes In The Outer Ring Or Lubrication Groove In The Housing

Technical details

  1. Availability 2 pcs
  2. Brand INA
  3. Item number KB12-PP-RROC-AS INA
  4. Also known as 0606394580000
    KB1232PP RROC AS
  5. EAN 4047643198882
  6. Category Linear Ball Bearing

Weight and Dimensions

  1. Weight (kg) 0.036

Product Properties

  1. Seal 2L - LS-seal at Both Sides

Data from Schaeffler (medias)

  1. ECLASS number 23-30-03-01
  2. ECLASS2 number 23-30-03-01

Downloads and links

  1. Link to manufacturer Link to manufacturer
