KB40-PP-AS INA

Stock
45 pcs available
Brand INA
Article number KB40-PP-AS INA
Inside diameter 40mm
Outside diameter 62mm
Width 80mm
Product description

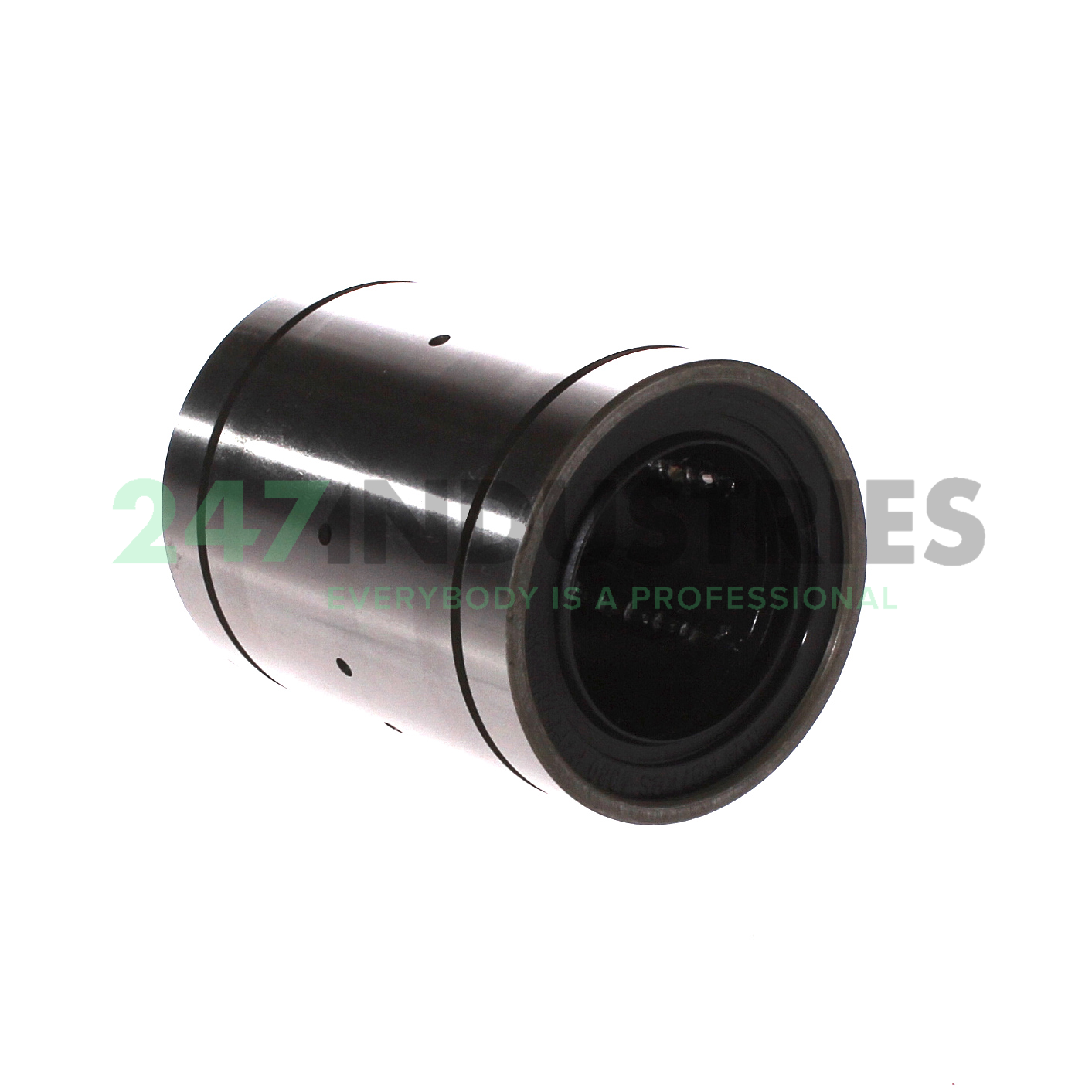

The KB40-PP-AS INA is a ball bushing or linear ball bearing from INA's machined range. These ball bushings are particularly durable and they have a high running accuracy. The balls run with great precision thanks to a special spring washer. The result is low and even displacement resistance, also under severe operating conditions and regardless of the installed position.

The closed design makes this bearing suitable for use on unsupported shafts. The outer ring accommodates a plastic cage and balls. When the ball bushing is in motion, the rolling elements follow a trajectory returning through openings in the outer ring.

Read more Show less
Help with this product

Downloads and links

Similar to: KB40-PP-AS INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 40
  2. Outer (D) MM 62
  3. Width (B) MM 80
  4. Inner (d) Inch 1.5748
  5. Outer (D) Inch 2.4409
  6. Width (B) Inch 3.1496
  7. Length (L) mm 80

Suffix description

  1. PP Lip Seal On Both Sides Of Bearing
  2. AS Lubrication Holes In The Outer Ring Or Lubrication Groove In The Housing

Technical details

  1. Availability 45 pcs
  2. Brand INA
  3. Item number KB40-PP-AS INA
  4. Also known as 0015242080000
  5. EAN 4012802458596
  6. Category Linear Ball Bearing

Weight and Dimensions

  1. Weight (kg) 0.686

Product Properties

  1. Seal 2L - LS-seal at Both Sides

Data from Schaeffler (medias)

  1. Load capacity dyn. (C min) 6000
  2. Load capacity stat. (C 0 min) 4400
  3. Load capacity stat. (C 0 max) 5600
  4. ECLASS number 23-30-03-01
  5. ECLASS2 number 23-30-03-01
  6. Medias description Linear ball bearings KB..-PP-AS, machined range, sealed on all sides, with relubrication facility, corrosion-resistant design possible
