KBO12-P INA

39,63 ex VAT
€ 47,96 incl. VAT
€ 47,96 incl. VAT
39,63 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

KBO12-P INA

Stock
4 pcs in stock and ready for shipment
Brand INA
Article number KBO12-P INA
Inside diameter 12mm
Outside diameter 22mm
Width 32mm
Product description

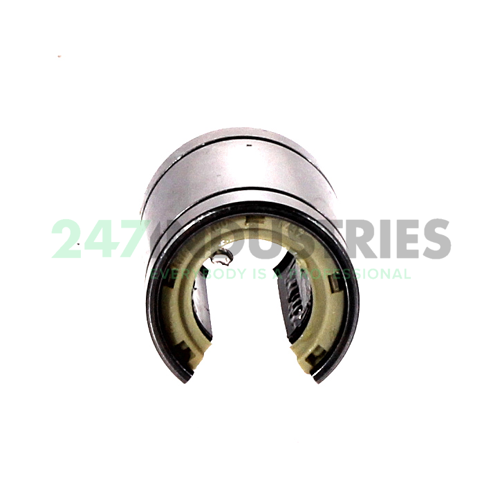

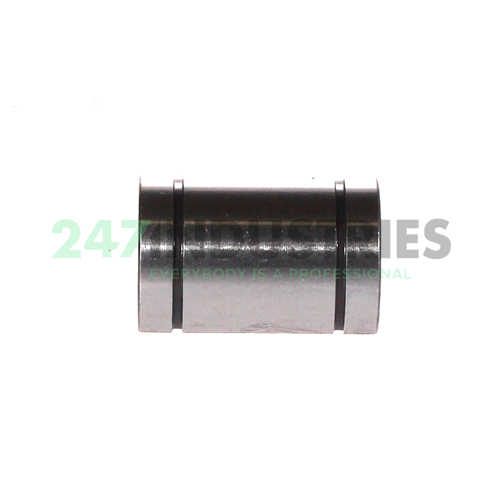

The KBO12-P INA is a ball bushing or linear ball bearing from INA's machined range. These ball bushings are particularly durable and they have a high running accuracy. The balls run with great precision thanks to a special spring washer. The result is low and even displacement resistance, also under severe operating conditions and regardless of the installed position.

The open design makes this bearing suitable for use on a supported shafts. The outer ring accommodates a plastic cage and balls. When the ball bushing is in motion, the rolling elements follow a trajectory returning through openings in the outer ring.

Read more Show less
Help with this product

Downloads and links

Similar to: KBO12-P INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 12
  2. Outer (D) MM 22
  3. Width (B) MM 32
  4. Inner (d) Inch 0.4724
  5. Outer (D) Inch 0.8661
  6. Width (B) Inch 1.2598

Suffix description

  1. P Lip Seal On One Side Of The Bearing

Technical details

  1. Availability 4 pcs
  2. Brand INA
  3. Item number KBO12-P INA
  4. Also known as 0017188350000
    KBO1232P
    LBAT12-LS
  5. EAN 4054362430391
  6. Category Linear Ball Bearing

Weight and Dimensions

  1. Weight (kg) 0.029

Product Properties

  1. Seal L - LS-seal at One Side

Data from Schaeffler (medias)

  1. ECLASS number 23-30-03-01
  2. ECLASS2 number 23-30-03-01

Downloads and links

  1. Link to manufacturer Link to manufacturer
Show all details Show less
