KBO16-PP INA

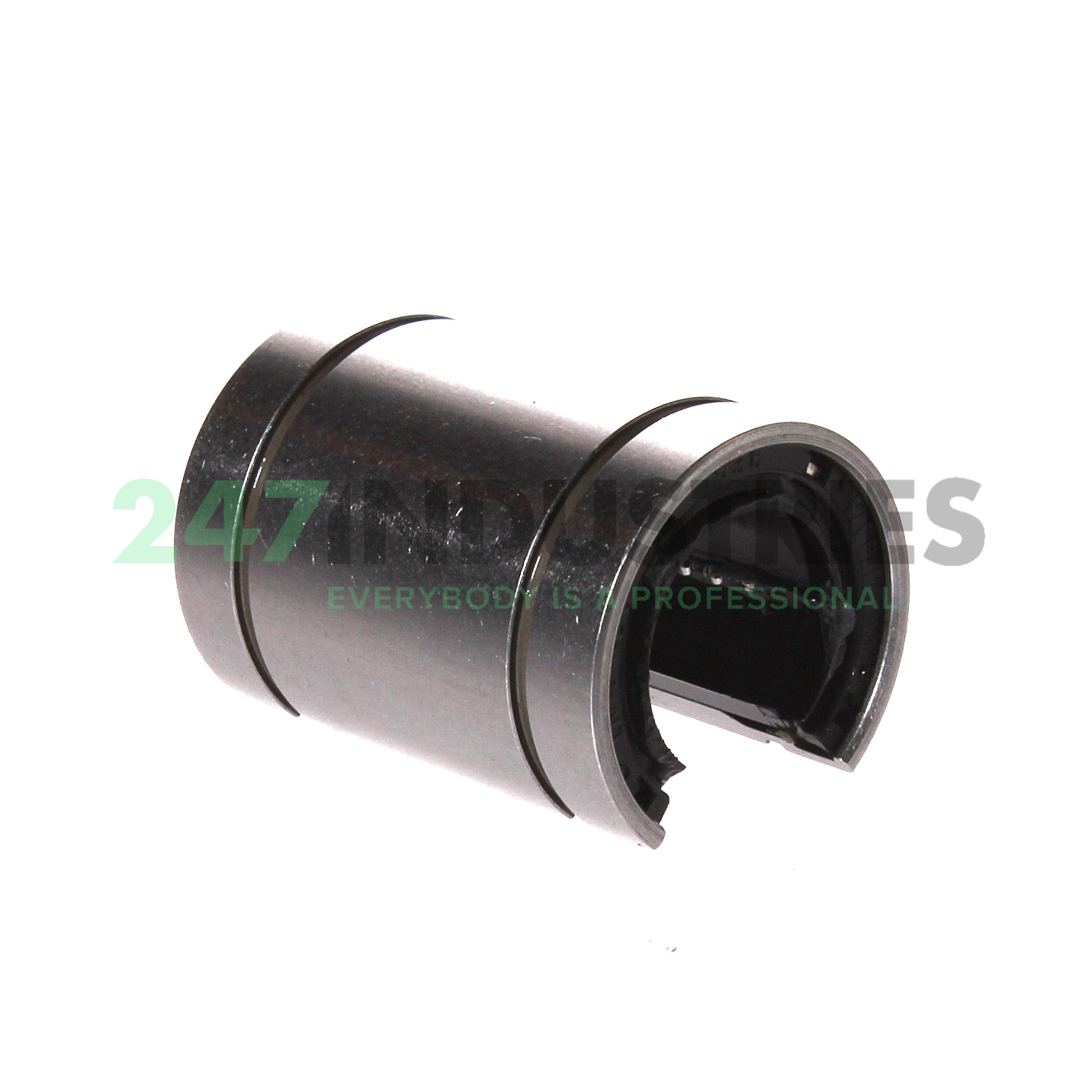

Linear ball bearings (heavy range) KBO..PP, open design, sealed on all sides

Stock
2 pcs in stock and ready for shipment
Brand INA
Article number KBO16-PP INA
Inside diameter 16mm
Outside diameter 26mm
Width 36mm
Product description

The KBO16-PP INA is a ball bushing or linear ball bearing from INA's machined range. These ball bushings are particularly durable and they have a high running accuracy. The balls run with great precision thanks to a special spring washer. The result is low and even displacement resistance, also under severe operating conditions and regardless of the installed position.

The open design makes this bearing suitable for use on a supported shafts. The outer ring accommodates a plastic cage and balls. When the ball bushing is in motion, the rolling elements follow a trajectory returning through openings in the outer ring.

Read more Show less
Help with this product

Downloads and links

Similar to: KBO16-PP INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 16
  2. Outer (D) MM 26
  3. Width (B) MM 36
  4. Inner (d) Inch 0.6299
  5. Outer (D) Inch 1.0236
  6. Width (B) Inch 1.4173
  7. Length (L) mm 36

Suffix description

  1. PP Lip Seal On Both Sides Of The Bearing

Technical details

  1. Availability 2 pcs
  2. Brand INA
  3. Item number KBO16-PP INA
  4. Also known as 0013928830000
    KBO1636PP
    LBCT16
  5. EAN 4012802101263
  6. Category Linear Ball Bearing

Weight and Dimensions

  1. Weight (kg) 0.04

Product Properties

  1. Seal 2L - LS-seal at Both Sides

Data from Schaeffler (medias)

  1. Load capacity stat. (C 0 max) 620
  2. ECLASS number 23-30-03-01
  3. ECLASS2 number 23-30-03-01
  4. Medias description Linear ball bearings KBO..-PP, machined range, open design, sealed on all sides, corrosion-resistant design possible
