KBO2558PP AS INA

Stock
1 pc in stock and ready for shipment
Brand INA
Article number KBO2558PP AS INA
Inside diameter 25mm
Outside diameter 40mm
Width 58mm
Product description

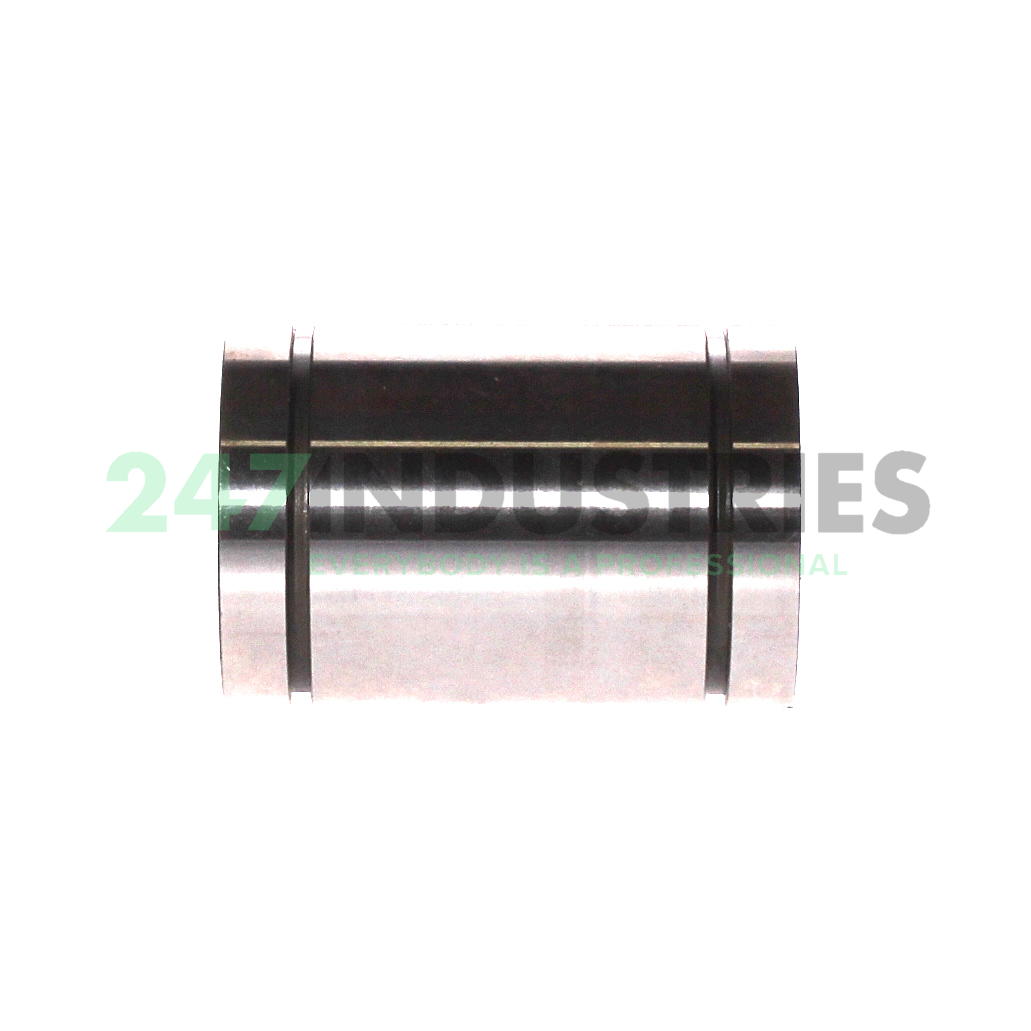

The KBO2558PP AS INA is a ball bushing or linear ball bearing from INA's machined range. These ball bushings are particularly durable and they have a high running accuracy. The balls run with great precision thanks to a special spring washer. The result is low and even displacement resistance, also under severe operating conditions and regardless of the installed position.

The open design makes this bearing suitable for use on a supported shafts. The outer ring accommodates a plastic cage and balls. When the ball bushing is in motion, the rolling elements follow a trajectory returning through openings in the outer ring.

Read more Show less
Help with this product

Similar to: KBO2558PP AS INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 25
  2. Outer (D) MM 40
  3. Width (B) MM 58
  4. Inner (d) Inch 0.9843
  5. Outer (D) Inch 1.5748
  6. Width (B) Inch 2.2835

Suffix description

  1. PP Lip Seal On Both Sides Of Bearing
  2. AS Lubrication Holes In The Outer Ring Or Lubrication Groove In The Housing

Technical details

  1. Availability 1 pc
  2. Brand INA
  3. Item number KBO2558PP AS INA
  4. Category Linear Ball Bearing

Weight and Dimensions

  1. Weight (kg) 0.12

Product Properties

  1. Seal 2L - LS-seal at Both Sides
