KBO40-P INA

Stock
2 pcs in stock and ready for shipment
Brand INA
Article number KBO40-P INA
Inside diameter 40mm
Outside diameter 62mm
Width 80mm
Product description

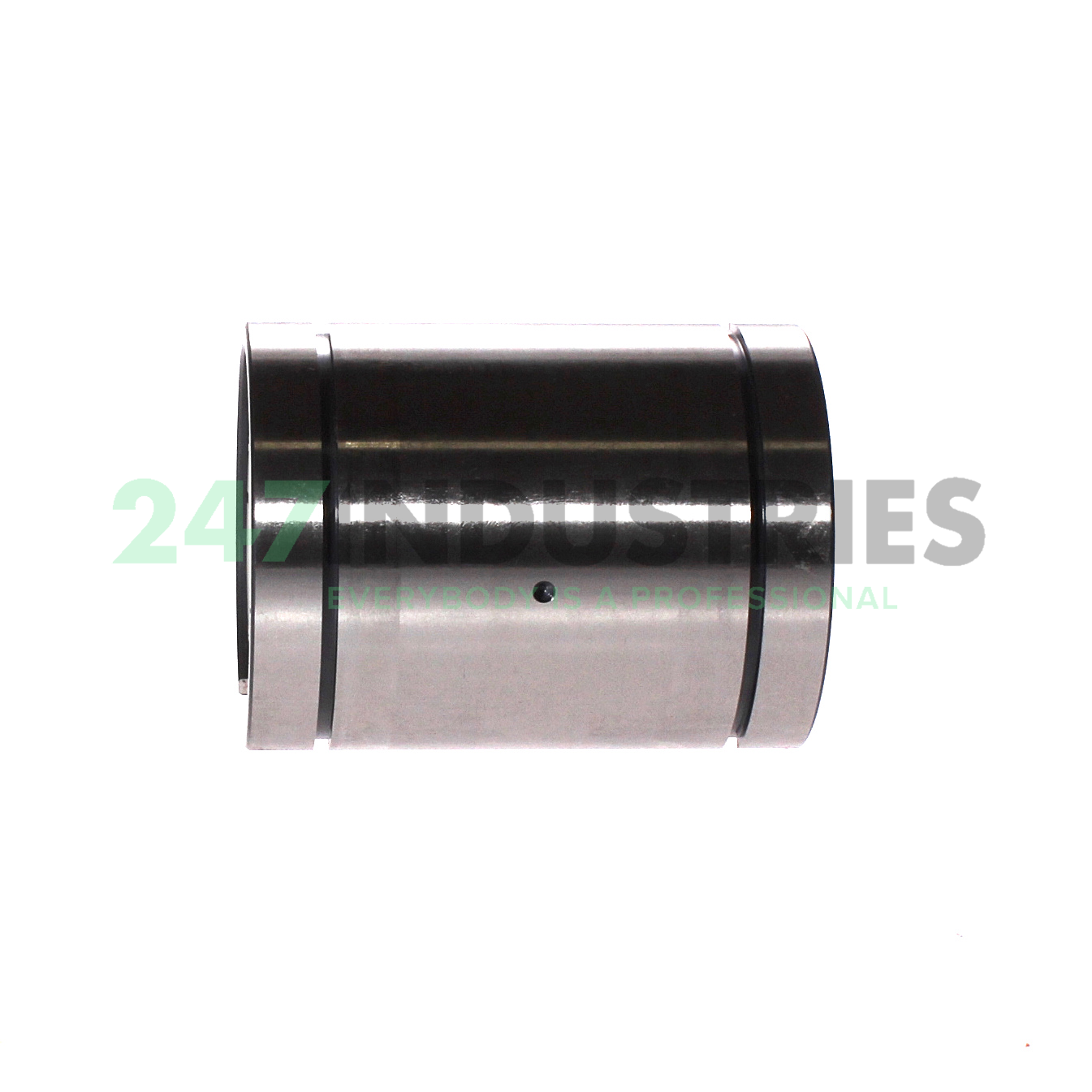

The KBO40-P INA is a ball bushing or linear ball bearing from INA's machined range. These ball bushings are particularly durable and they have a high running accuracy. The balls run with great precision thanks to a special spring washer. The result is low and even displacement resistance, also under severe operating conditions and regardless of the installed position.

The open design makes this bearing suitable for use on a supported shafts. The outer ring accommodates a plastic cage and balls. When the ball bushing is in motion, the rolling elements follow a trajectory returning through openings in the outer ring.

Read more Show less
Help with this product

Downloads and links

Similar to: KBO40-P INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 40
  2. Outer (D) MM 62
  3. Width (B) MM 80
  4. Inner (d) Inch 1.5748
  5. Outer (D) Inch 2.4409
  6. Width (B) Inch 3.1496

Suffix description

  1. P Lip Seal On One Side Of The Bearing

Technical details

  1. Availability 2 pcs
  2. Brand INA
  3. Item number KBO40-P INA
  4. Also known as 0014574540000
    KBO4080P
    LBAT40-LS
  5. EAN 4054362430490
  6. Category Linear Ball Bearing

Weight and Dimensions

  1. Weight (kg) 0.516

Product Properties

  1. Seal L - LS-seal at One Side

Data from Schaeffler (medias)

  1. ECLASS number 23-30-03-01
  2. ECLASS2 number 23-30-03-01
