KBS12-PP INA

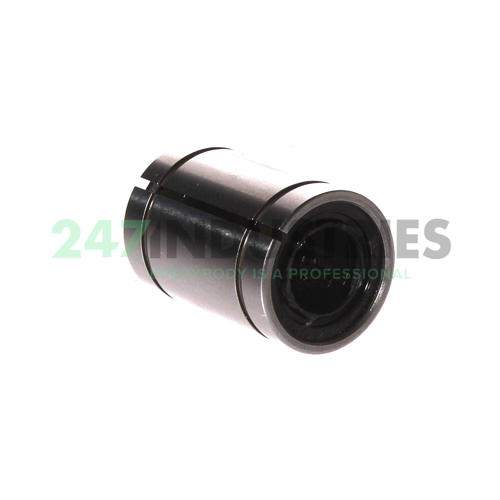

Linear ball bearings (heavy range) KBS..PP, sealed on all sides, adjustable

Stock
104 pcs in stock and ready for shipment
Brand INA
Article number KBS12-PP INA
Inside diameter 12mm
Outside diameter 22mm
Width 32mm
Product description

The KBS12-PP INA is a ball bushing or linear ball bearing from INA's machined range. These ball bushings are particularly durable and they have a high running accuracy. The balls run with great precision thanks to a special spring washer. The result is low and even displacement resistance, also under severe operating conditions and regardless of the installed position.

The closed design makes this bearing suitable for use on unsupported shafts. The outer ring accommodates a plastic cage and balls. When the ball bushing is in motion, the rolling elements follow a trajectory returning through openings in the outer ring. Finally, this bearing is adjustable via a groove for custom radial clearances.

Read more Show less
Help with this product

Downloads and links

Similar to: KBS12-PP INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 12
  2. Outer (D) MM 22
  3. Width (B) MM 32
  4. Inner (d) Inch 0.4724
  5. Outer (D) Inch 0.8661
  6. Width (B) Inch 1.2598
  7. Length (L) mm 32

Suffix description

  1. PP Lip Seal On Both Sides Of The Bearing

Technical details

  1. Availability 104 pcs
  2. Brand INA
  3. Item number KBS12-PP INA
  4. Also known as 0016968070000
    0612-012-10
    KB12G UU AJ
    KBS1232PP
    LAG12X22X32.2RS
    LBAS12-2LS
    LBE12UU AJ
    LME12UU AJ
    MAM12ADJWW
    R0612-012-10
  5. EAN 4012802472271
  6. Category Linear Ball Bearing

Weight and Dimensions

  1. Weight (kg) 0.04

Product Properties

  1. Seal 2L - LS-seal at Both Sides

Data from Schaeffler (medias)

  1. Load capacity dyn. (C min) 540
  2. Load capacity stat. (C 0 min) 385
  3. Load capacity stat. (C 0 max) 570
  4. ECLASS number 23-30-03-01
  5. ECLASS2 number 23-30-03-01
  6. Medias description Linear ball bearings KBS..-PP, machined range, adjustable, sealed on all sides, corrosion-resistant design possible
