KBS20 INA

Linear ball bearings (heavy range) KBS..PP, adjustable

Stock
39 pcs in stock and ready for shipment
Brand INA
Article number KBS20 INA
Inside diameter 20mm
Outside diameter 32mm
Width 45mm
Product description

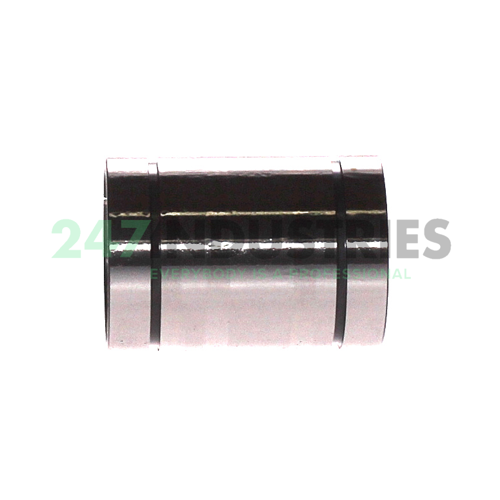

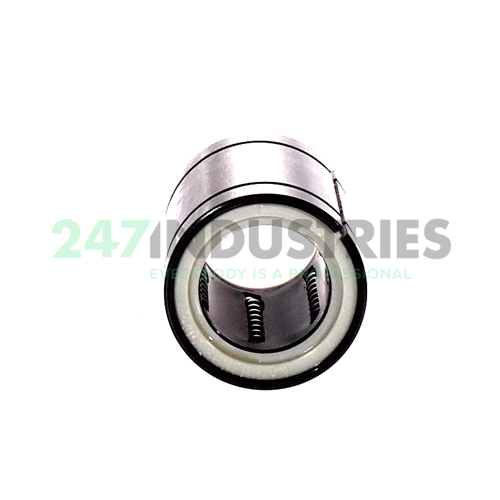

The KBS20 INA is a ball bushing or linear ball bearing from INA's machined range. These ball bushings are particularly durable and they have a high running accuracy. The balls run with great precision thanks to a special spring washer. The result is low and even displacement resistance, also under severe operating conditions and regardless of the installed position.

The closed design makes this bearing suitable for use on unsupported shafts. The outer ring accommodates a plastic cage and balls. When the ball bushing is in motion, the rolling elements follow a trajectory returning through openings in the outer ring. Finally, this bearing is adjustable via a groove for custom radial clearances.

Read more Show less
Help with this product

Downloads and links

Similar to: KBS20 INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 20
  2. Outer (D) MM 32
  3. Width (B) MM 45
  4. Inner (d) Inch 0.7874
  5. Outer (D) Inch 1.2598
  6. Width (B) Inch 1.7717
  7. Length (L) mm 45

Technical details

  1. Availability 39 pcs
  2. Brand INA
  3. Item number KBS20 INA
  4. Also known as 0012756740000
    0610-020-00
    KB20G AJ
    KBS2045
    LAG20X32X45
    LBAS20
    LBE20AJ
    LME20AJ
    MAM20ADJ
    R0610-020-00
  5. EAN 4012802464931
  6. Category Linear Ball Bearing

Weight and Dimensions

  1. Weight (kg) 0.09

Product Properties

  1. Seal No Seal

Data from Schaeffler (medias)

  1. Load capacity dyn. (C min) 1570
  2. Load capacity stat. (C 0 min) 1230
  3. Load capacity stat. (C 0 max) 1570
  4. ECLASS number 23-30-03-01
  5. ECLASS2 number 23-30-03-01
  6. Medias description Linear ball bearings KBS.., machined range, adjustable, corrosion-resistant design possible
