KGBAO16-PP-AS INA

Linear ball bearing and housing units (heavy range) KGBAO..PP AS, open design, s

Stock
2 pcs in stock and ready for shipment
Brand INA
Article number KGBAO16-PP-AS INA
Product description

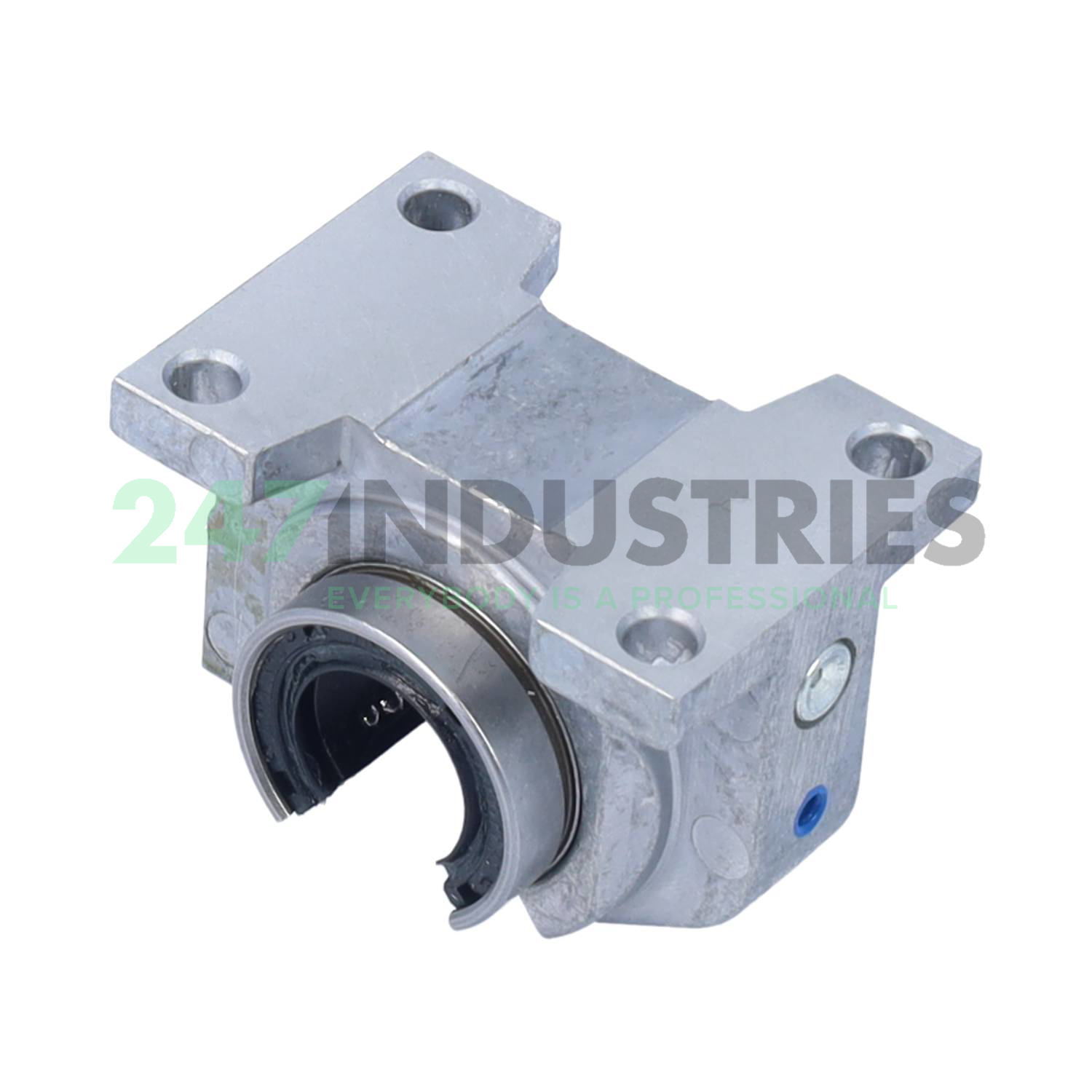

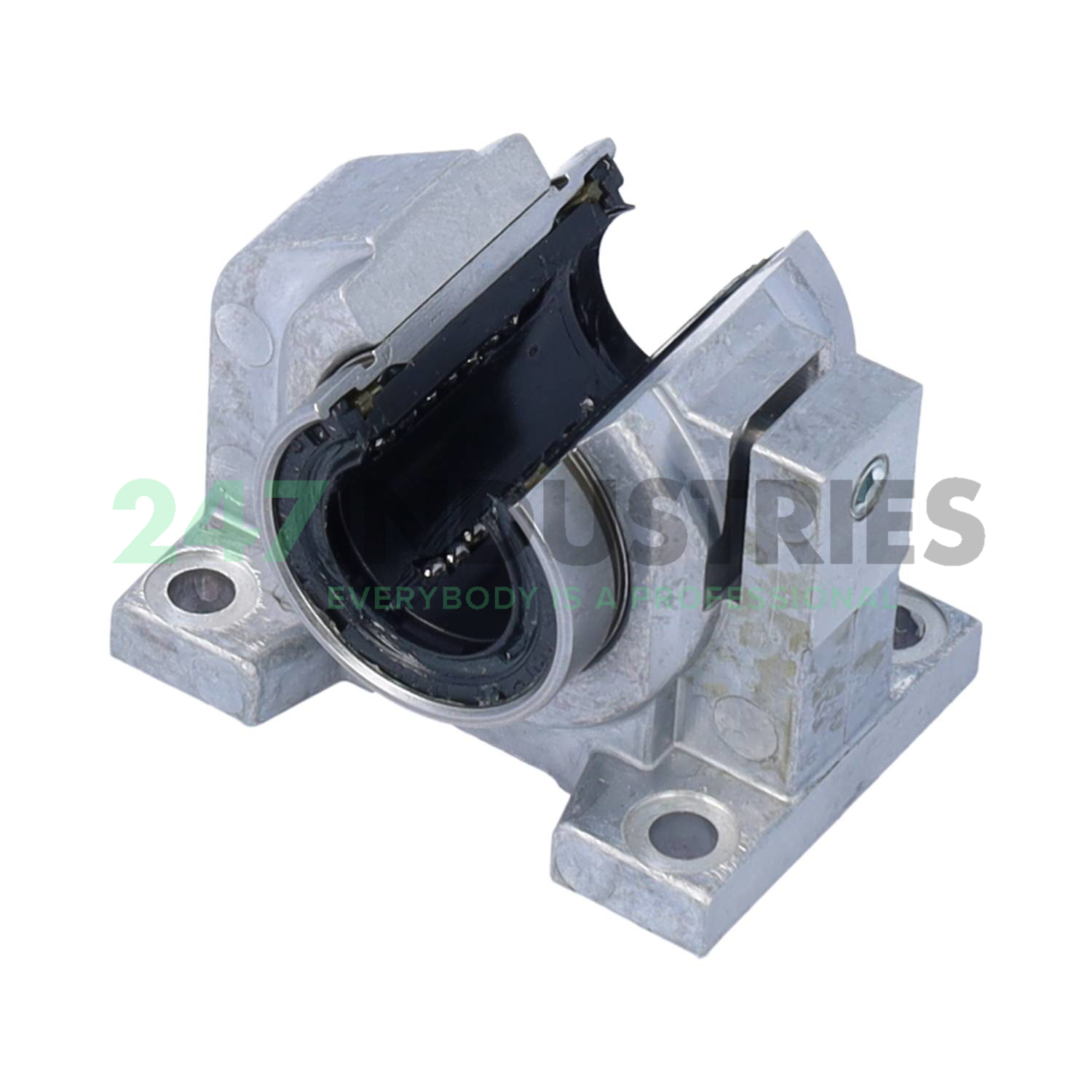

The KGBAO16-PP-AS INA is a linear ball bearing unit or ball bushing unit that is part of INA's machined range. The linear bearing is firmly anchored in its housing. The robust construction of the housing allows use of the full load capacity of the ball bushing.

The open design makes this type suitable for use on a supported shaft. In addition, this linear ball bearing unit is adjustable via a groove for custom radial clearances. Simple screw fastening makes mounting the bearing on the connection construction child's play, and a convenient centering edge on the housing facilitates alignment. Finally, centering holes allow for fast, additional dowel connection.

Read more Show less
Help with this product

Downloads and links

Similar to: KGBAO16-PP-AS INA

Loading similair products

Product specifications

All dimensions

  1. Height (H) mm 37
  2. Length (L) mm 36

Suffix description

  1. PP Lip Seal On Both Sides Of Bearing
  2. AS Lubrication Holes In The Outer Ring Or Lubrication Groove In The Housing

Technical details

  1. Availability 2 pcs
  2. Brand INA
  3. Item number KGBAO16-PP-AS INA
  4. Also known as 0017438210000
    KGBAO16-PP-AS
  5. EAN 4012802430356
  6. Category Linear Ball Bearing Unit

Weight and Dimensions

  1. Weight (kg) 0.1

Product Properties

  1. Seal 2L - LS-seal at Both Sides

Data from Schaeffler (medias)

  1. Load capacity dyn. C (C) 800
  2. ECLASS number 23-30-03-06
  3. ECLASS2 number 23-30-03-06
