| Stock |
|
| Brand | INA |
| Article number | KGBAS16-PP-AS INA |
| Inside diameter | 16mm |
| Outside diameter | 50mm |
| Width | 36mm |

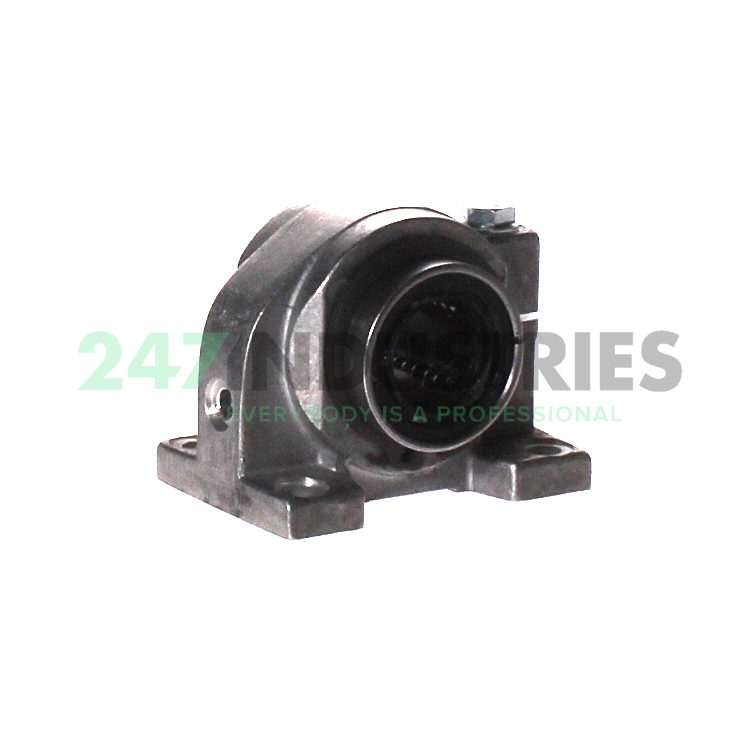

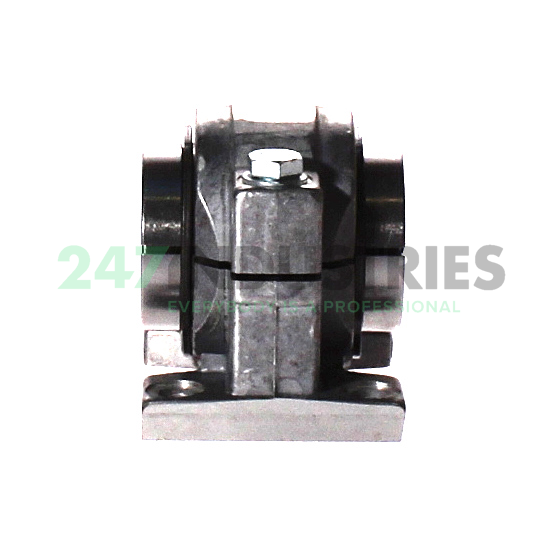

The KGBAS16-PP-AS INA is a linear ball bearing unit or ball bushing unit that is part of INA's machined range. The linear bearing is firmly anchored in its housing. The robust construction of the housing allows use of the full load capacity of the ball bushing.
The closed design makes this type suitable for use on unsupported shafts. In addition, this linear ball bearing unit is adjustable via a groove for custom radial clearances. Simple screw fastening makes mounting the bearing on the connection construction child's play, and a convenient centering edge on the housing facilitates alignment. Finally, centering holes allow for fast, additional dowel connection.
