KGBS16-PP-AS INA

Linear ball bearing and housing units (heavy range) KGBS..PP AS, adjustable, sea

Stock
15 pcs in stock and ready for shipment
Brand INA
Article number KGBS16-PP-AS INA
Inside diameter 16mm
Product description

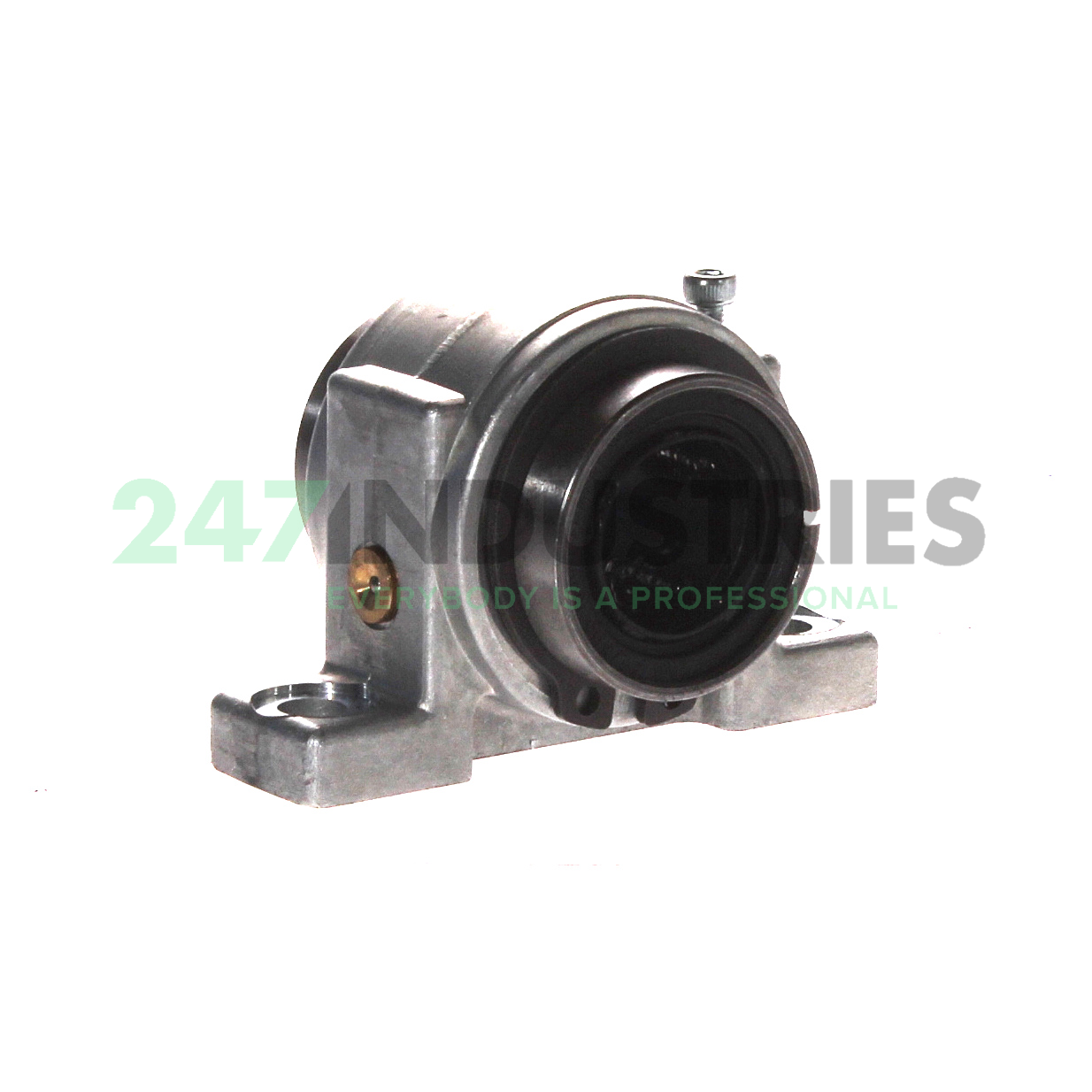

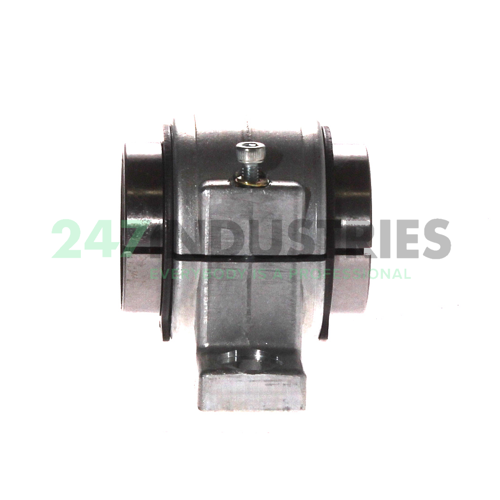

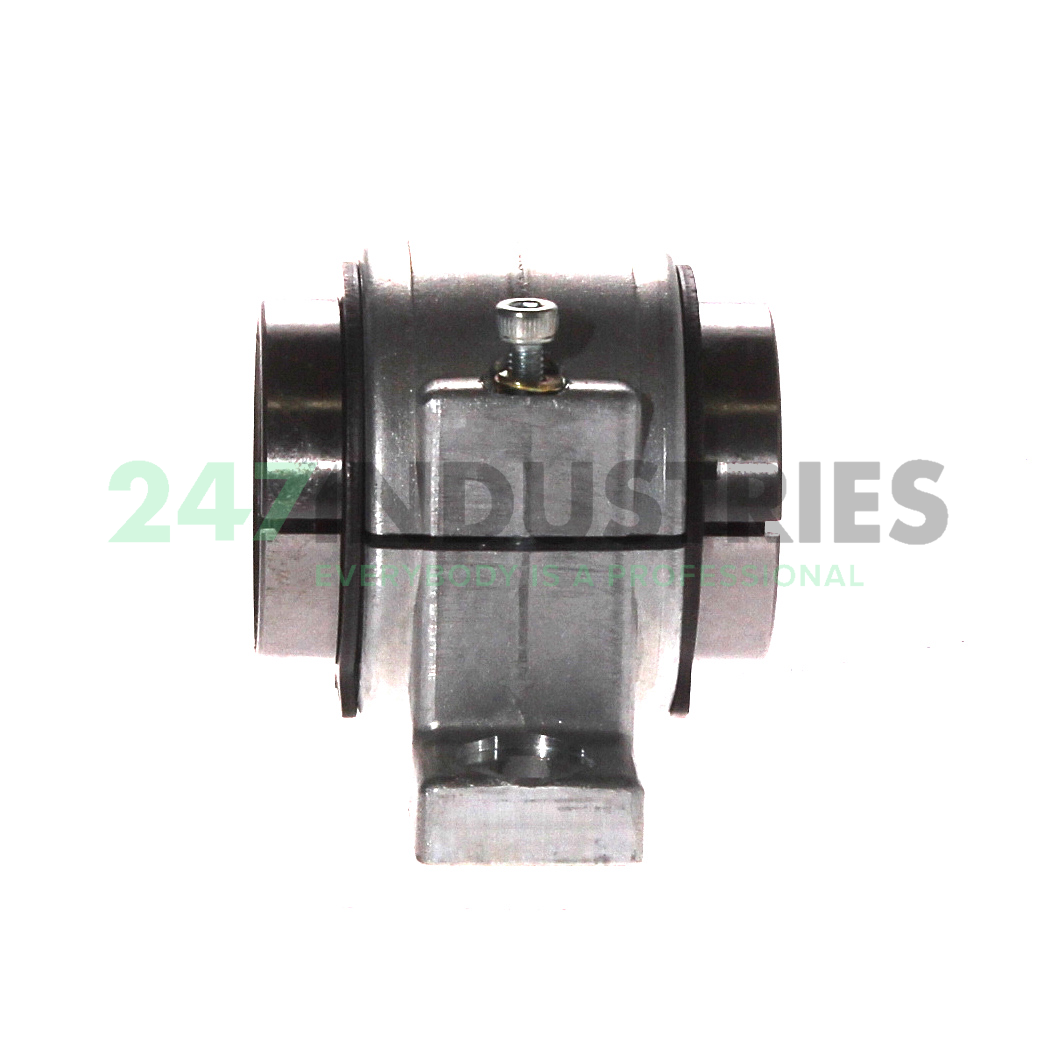

The KGBS16-PP-AS INA is a linear ball bearing unit or ball bushing unit that is part of INA's machined range. The linear bearing is firmly anchored in its housing. The robust construction of the housing allows use of the full load capacity of the ball bushing.

The closed design makes this type suitable for use on unsupported shafts. In addition, this linear ball bearing unit is adjustable via a groove for custom radial clearances. Simple screw fastening makes mounting the bearing on the connection construction child's play, and a convenient centering edge on the housing facilitates alignment. Finally, centering holes allow for fast, additional dowel connection.

Read more Show less
Help with this product

Downloads and links

Similar to: KGBS16-PP-AS INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 16
  2. Inner (d) Inch 0.6299
  3. Height (H) mm 37,5
  4. Length (L) mm 36
  5. Width (b) mm 56

Suffix description

  1. PP Lip Seal On Both Sides Of Bearing
  2. AS Lubrication Holes In The Outer Ring Or Lubrication Groove In The Housing

Technical details

  1. Availability 15 pcs
  2. Brand INA
  3. Item number KGBS16-PP-AS INA
  4. Also known as 0015664310000
    KGBS1636PP AS
  5. EAN 4012802130515
  6. Category Linear Ball Bearing Unit

Weight and Dimensions

  1. Weight (kg) 0.14

Product Properties

  1. Seal 2L - LS-seal at Both Sides

Data from Schaeffler (medias)

  1. ECLASS number 23-30-03-06
  2. ECLASS2 number 23-30-03-06
