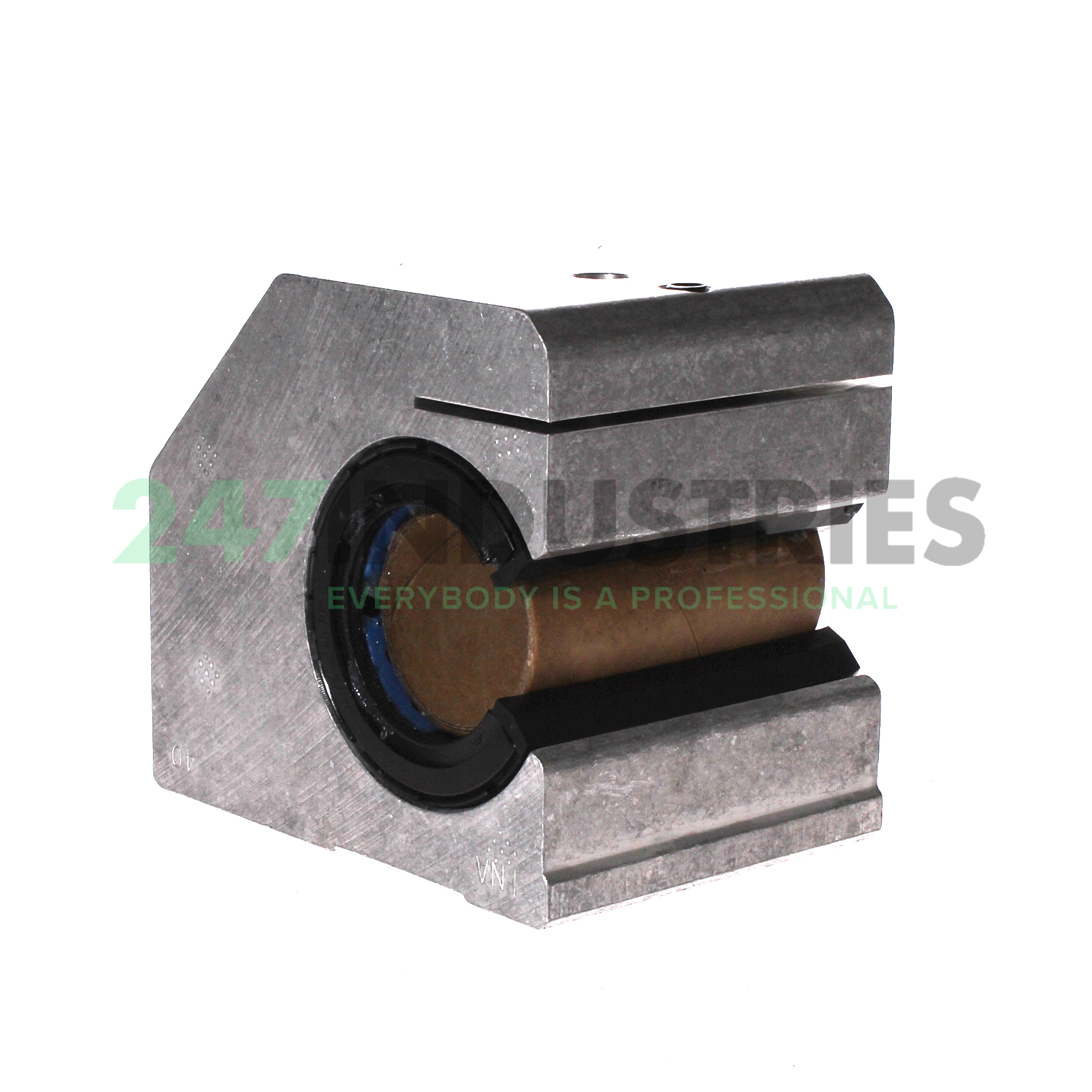

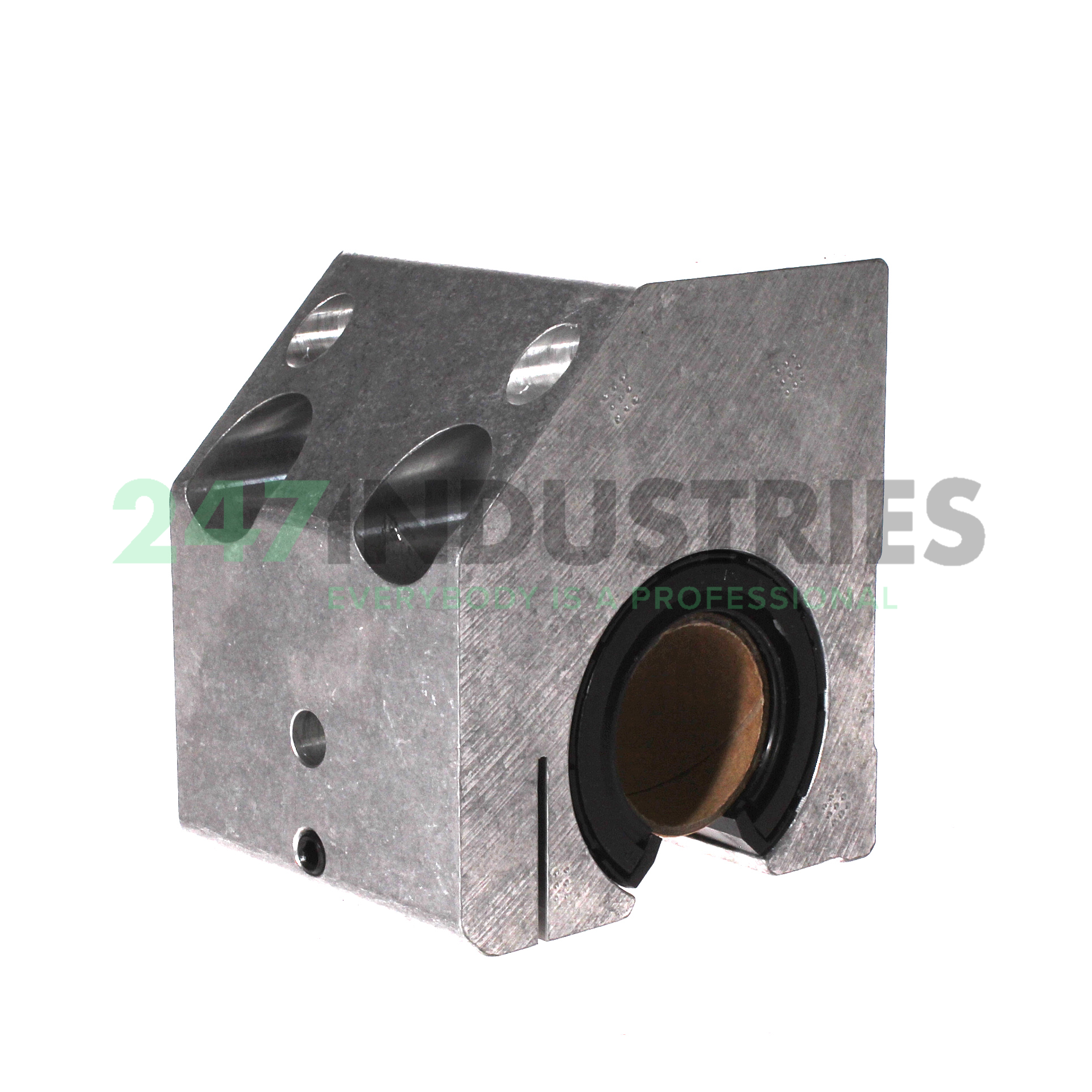

KGSCS40-PP-AS INA

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 110
3. Width (B) MM 80
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 4.3307
6. Width (B) Inch 3.1496
7. Height (H) mm 100
8. Length (L) mm 80
9. Width (b) mm 110

Suffix description

1. PP Lip Seal On Both Sides Of Bearing
2. AS Lubrication Holes In The Outer Ring Or Lubrication Groove In The Housing

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number KGSCS40-PP-AS INA
4. Also known as 0101920340000

5. EAN 4054364120764
6. Category Linear Ball Bearing Unit

Weight and Dimensions

1. Weight (kg) 1.8

Product Properties

1. Seal 2L - LS-seal at Both Sides

Data from Schaeffler (medias)

1. Load capacity stat. C0 max 9600

Downloads and links

1. Link to manufacturer Link to manufacturer
