KH06-PP INA

Linear ball bearings (compact range) KH..PP, sealed on all sides

Stock
126 pcs in stock and ready for shipment
Brand INA
Article number KH06-PP INA
Inside diameter 6mm
Outside diameter 12mm
Width 22mm
Product description

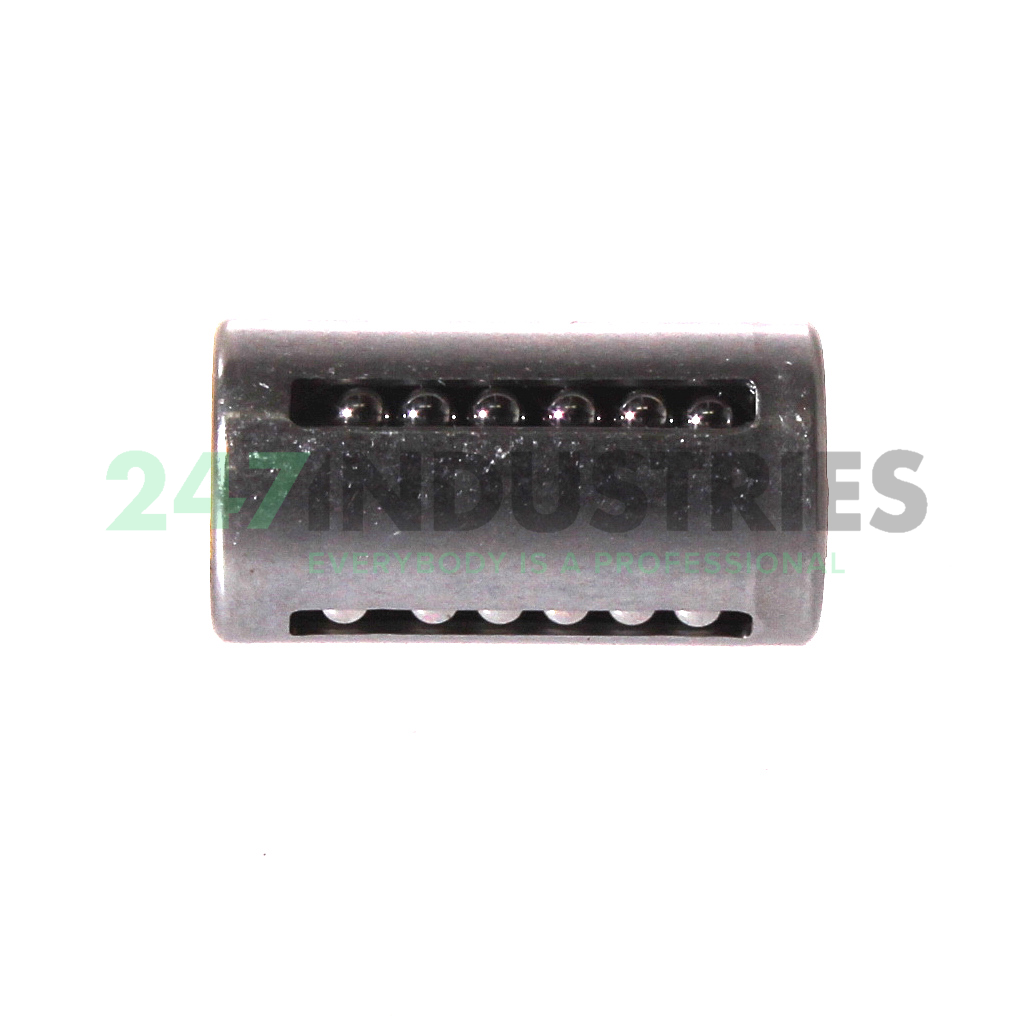

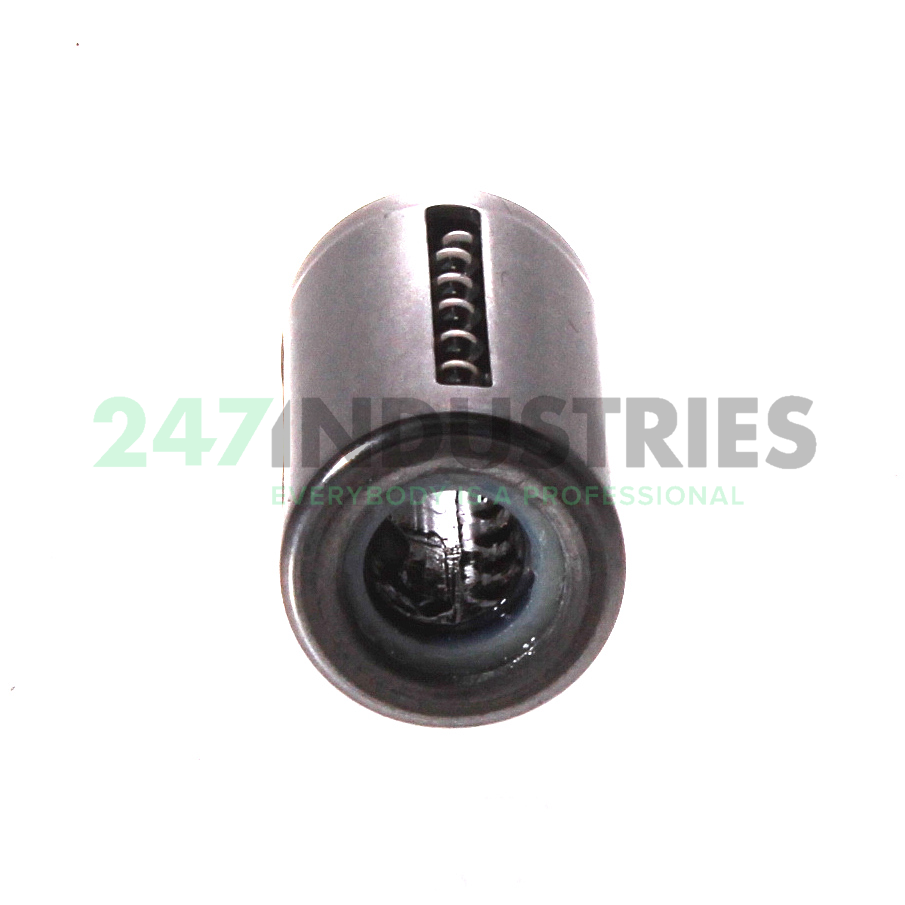

The KH06-PP INA is a ball bushing or linear ball bearing from INA's compact design series. These ball bushings have low radial heights. This makes them very suitable for applications with limited radial clearance. This is often the case in machines for the food and packaging industry. Like all other linear bearings in this compact range, the KH06-PP INA has a sealed design for use on unsupported shafts.

The metal outer ring of the bearing contains a plastic cage. When the ball bushing is in motion, the rolling elements follow a trajectory returning through openings in the outer ring. INA linear ball bearings in the compact design series offer a remarkably good price/performance ratio.

Read more Show less
Help with this product

Downloads and links

Similar to: KH06-PP INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 6
  2. Outer (D) MM 12
  3. Width (B) MM 22
  4. Inner (d) Inch 0.2362
  5. Outer (D) Inch 0.4724
  6. Width (B) Inch 0.8661
  7. Length (L) mm 22
  8. Outer diameter (D) mm 12

Suffix description

  1. PP Lip Seal On Both Sides Of The Bearing

Technical details

  1. Availability 126 pcs
  2. Brand INA
  3. Item number KH06-PP INA
  4. Also known as 0002127410000
    KH0622PP
  5. EAN 4047643176316
  6. Category Linear Ball Bearing

Weight and Dimensions

  1. Weight (kg) 0.007

Product Properties

  1. Seal 2L - LS-seal at Both Sides

Data from Schaeffler (medias)

  1. Load capacity dyn. (C min) 340
  2. Load capacity stat. (C 0 min) 240
  3. Load capacity stat. (C 0 max) 340
  4. ECLASS number 23-30-03-01
  5. ECLASS2 number 23-30-03-01
  6. Medias description Linear ball bearings with initial greasing, sealed on both sides, with relubrication facility
