KH10-B INA

Linear ball bearing (compact range) KH

Stock
47 pcs in stock and ready for shipment
Brand INA
Article number KH10-B INA
Inside diameter 10mm
Outside diameter 17mm
Width 26mm
Product description

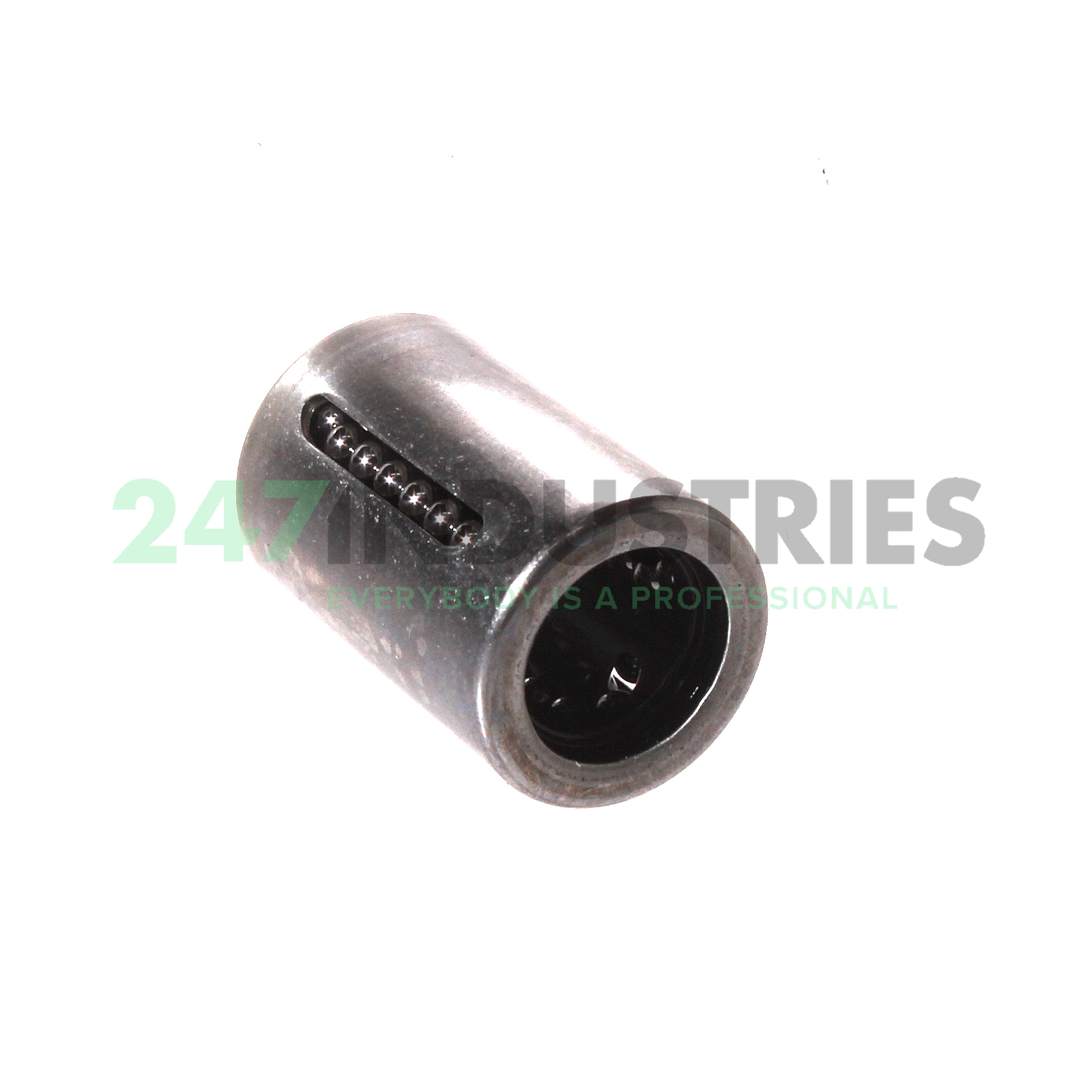

The KH10-B INA is a ball bushing or linear ball bearing from INA's compact design series. These ball bushings have low radial heights. This makes them very suitable for applications with limited radial clearance. This is often the case in machines for the food and packaging industry. Like all other linear bearings in this compact range, the KH10-B INA has a sealed design for use on unsupported shafts.

The metal outer ring of the bearing contains a plastic cage. When the ball bushing is in motion, the rolling elements follow a trajectory returning through openings in the outer ring. INA linear ball bearings in the compact design series offer a remarkably good price/performance ratio.

Read more Show less
Help with this product

Downloads and links

Similar to: KH10-B INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 10
  2. Outer (D) MM 17
  3. Width (B) MM 26
  4. Inner (d) Inch 0.3937
  5. Outer (D) Inch 0.6693
  6. Width (B) Inch 1.0236
  7. Length (L) mm 26
  8. Outer diameter (D) mm 17

Suffix description

  1. B Guideways And Carriages May Only Be Combined With Each Other Within The Same Accuracy And Interchangeability Class, So A Can Only Be Combined With A, And B Can Only Be Combined With B

Technical details

  1. Availability 47 pcs
  2. Brand INA
  3. Item number KH10-B INA
  4. Also known as 0003421730000
    KH1026
  5. EAN 4012802049855
  6. Category Linear Ball Bearing

Weight and Dimensions

  1. Weight (kg) 0.0145

Product Properties

  1. Seal No Seal

Data from Schaeffler (medias)

  1. Load capacity dyn. (C min) 510
  2. Load capacity stat. (C 0 min) 370
  3. Load capacity stat. (C 0 max) 520
  4. ECLASS number 23-30-03-01
  5. ECLASS2 number 23-30-03-01
  6. Medias description Linear ball bearings with preservative, not sealed, with relubrication facility
