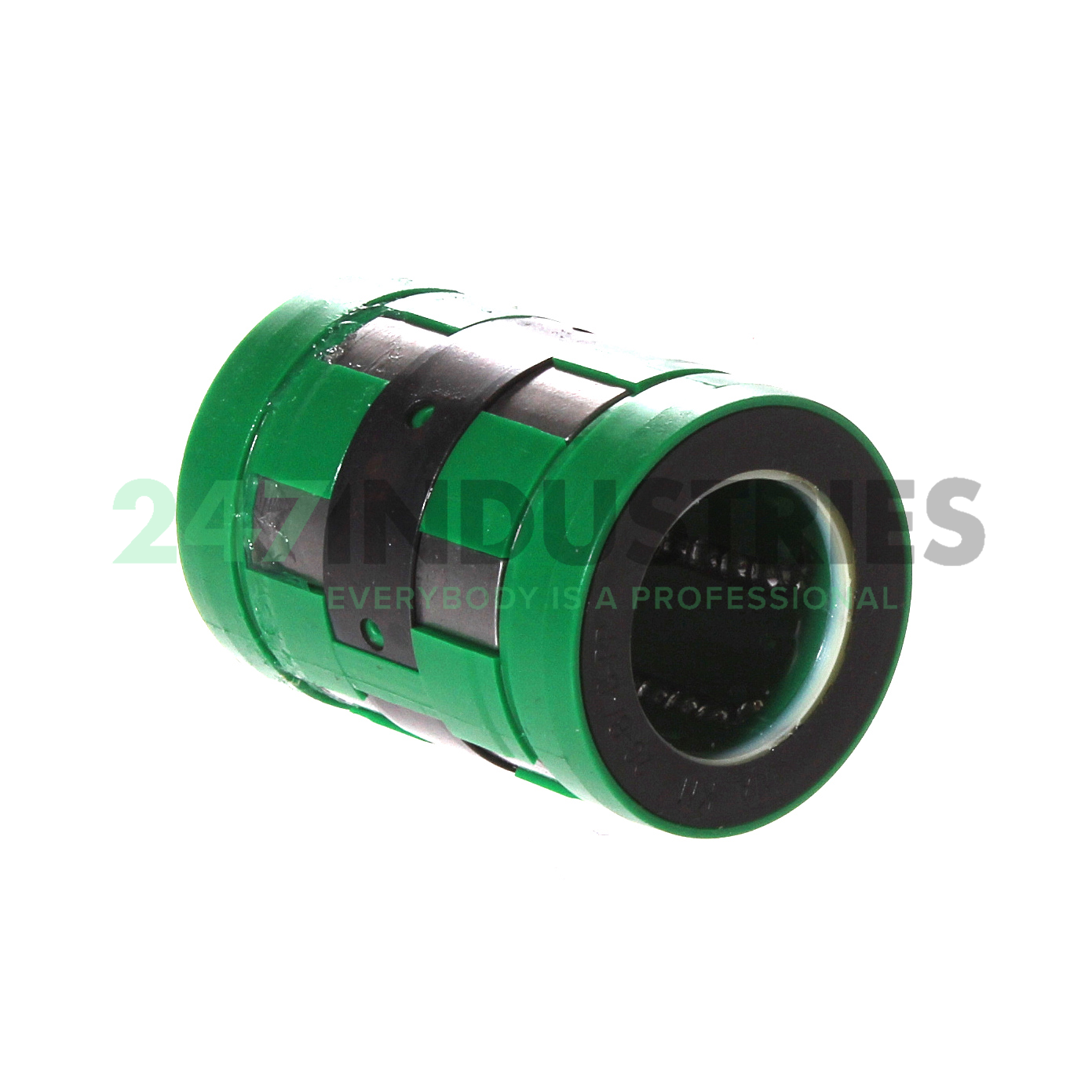

KN20-B-PP INA

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 32
3. Width (B) MM 45
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.2598
6. Width (B) Inch 1.7717
7. Length (L) mm 45

Suffix description

1. B Guideways And Carriages May Only Be Combined With Each Other Within The Same Accuracy And Interchangeability Class, So A Can Only Be Combined With A, And B Can Only Be Combined With B
2. PP Lip Seal On Both Sides Of Bearing

Technical details

1. Availability 44 pcs
2. Brand INA
3. Item number KN20-B-PP INA
4. Also known as 0193187150000
   KN2045PP
   LBCD20A-2LS
   LMES20UU
   R0670-220-40
   SPM20WW
   TK20UU

5. EAN 4012802422191
6. Category Linear Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.042

Product Properties

1. Seal 2L - LS-seal at Both Sides

Data from Schaeffler (medias)

1. Load capacity dyn. (C min) 1730
2. Load capacity stat. (C 0 min) 1230
3. Load capacity stat. (C 0 max) 1570
4. ECLASS number 23-30-03-01
5. ECLASS2 number 23-30-03-01
6. Medias description Linear ball bearings KN..-B-PP, Lightweight range, closed design, sealed on all sides, with relubrication facility, adjustable angle

Downloads and links

1. Link to manufacturer Link to manufacturer
