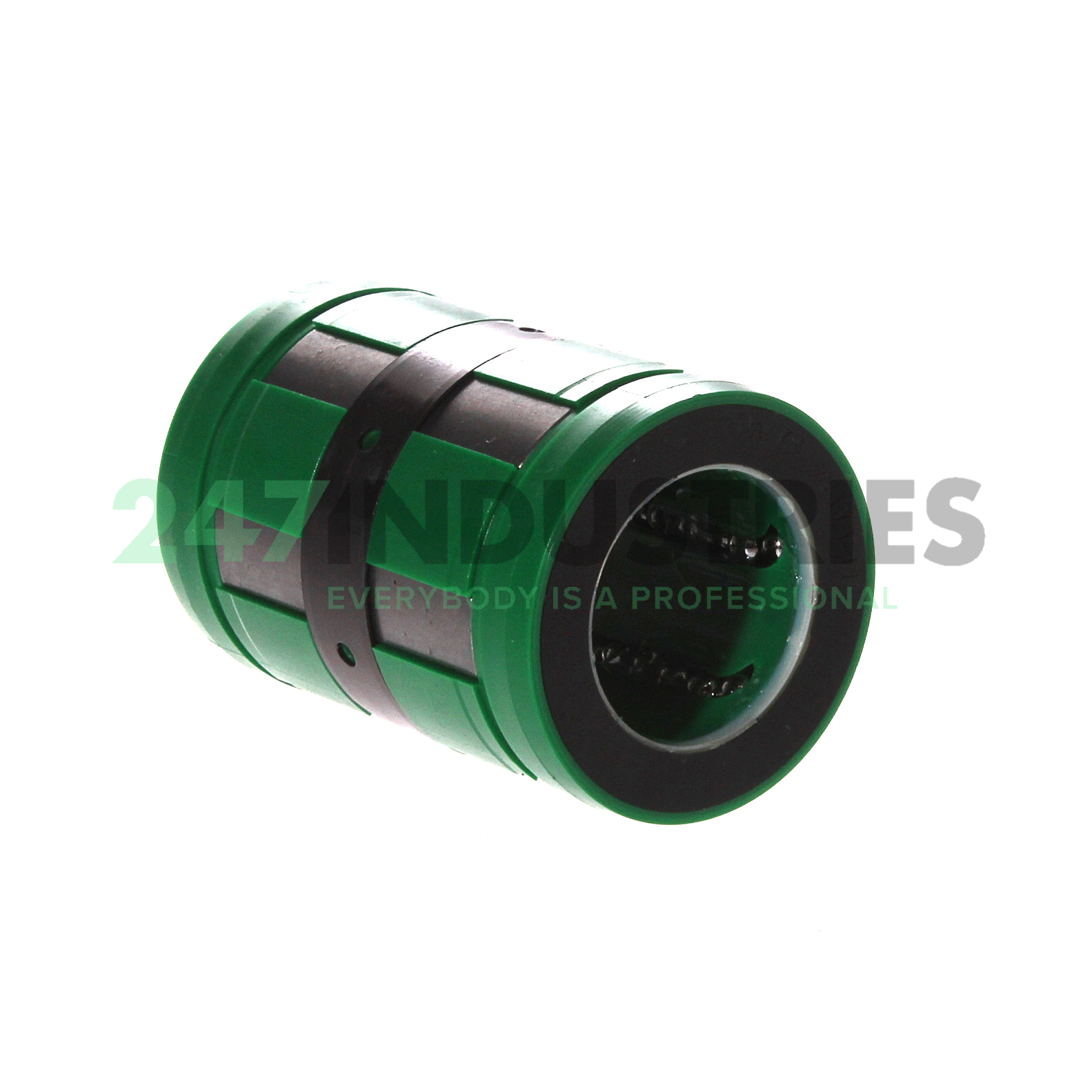

KN25-B-PP INA

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 40
3. Width (B) MM 58
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 1.5748
6. Width (B) Inch 2.2835
7. Length (L) mm 58

Suffix description

1. B Guideways And Carriages May Only Be Combined With Each Other Within The Same Accuracy And Interchangeability Class, So A Can Only Be Combined With A, And B Can Only Be Combined With B
2. PP Lip Seal On Both Sides Of Bearing

Technical details

1. Availability 43 pcs
2. Brand INA
3. Item number KN25-B-PP INA
4. Also known as 0173755410000
   KN2558PP
   LBCD25A-2LS
   LMES25UU
   R0670-225-40
   SPM25WW
   TK25UU

5. EAN 4047643207409
6. Category Linear Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.083

Product Properties

1. Seal 2L - LS-seal at Both Sides

Data from Schaeffler (medias)

1. Load capacity dyn. (C min) 3100
2. Load capacity stat. (C 0 min) 2220
3. Load capacity stat. (C 0 max) 2850
4. ECLASS number 23-30-03-01
5. ECLASS2 number 23-30-03-01
6. Medias description Linear ball bearings KN..-B-PP, Lightweight range, closed design, sealed on all sides, with relubrication facility, adjustable angle
