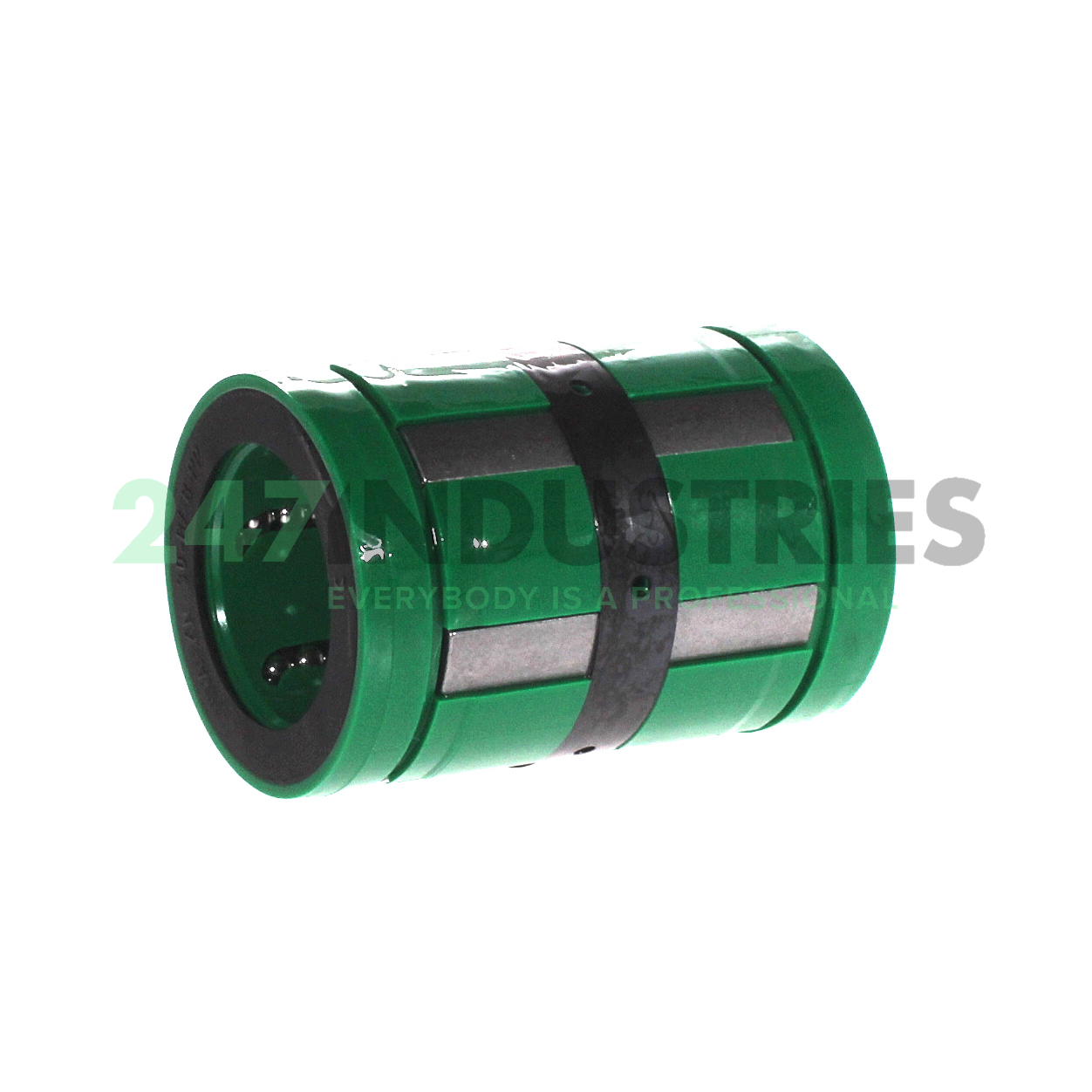

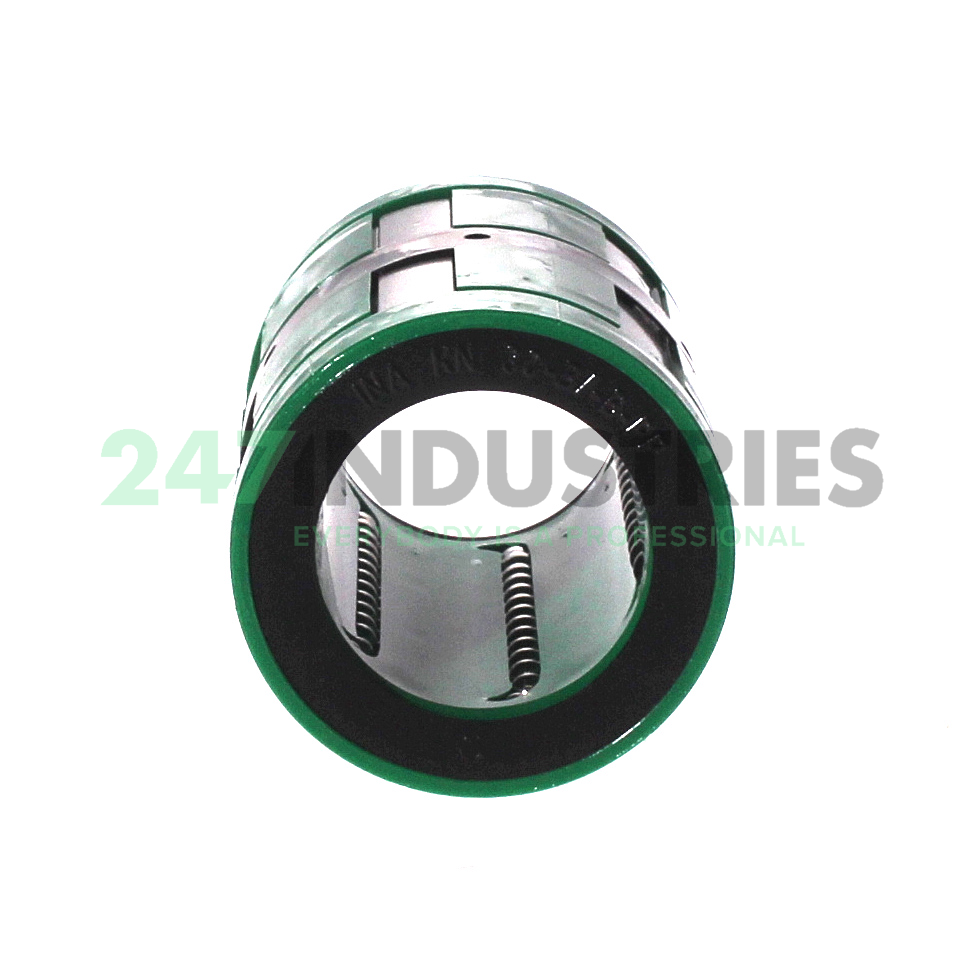

KN30-B INA

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 47
3. Width (B) MM 68
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 1.8504
6. Width (B) Inch 2.6772
7. Length (L) mm 68

Suffix description

1. B Guideways And Carriages May Only Be Combined With Each Other Within The Same Accuracy And Interchangeability Class, So A Can Only Be Combined With A, And B Can Only Be Combined With B

Technical details

1. Availability 9 pcs
2. Brand INA
3. Item number KN30-B INA
4. Also known as 0296806890000
   KN3068
   LBCD30A
   LMES30
   R0670-030-00
   SPM30
   TK30

5. EAN 4054362444800
6. Category Linear Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.13

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Load capacity dyn. (C min) 3750
2. Load capacity stat. (C 0 min) 2850
3. Load capacity stat. (C 0 max) 3650
4. ECLASS number 23-30-03-01
5. ECLASS2 number 23-30-03-01
6. Medias description Linear ball bearings KN..-B, Lightweight range, closed design, with relubrication facility, adjustable angle
