KNO12-B INA

All dimensions

1. Inner (d) MM 12
2. Outer (D) MM 22
3. Width (B) MM 32
4. Inner (d) Inch 0.4724
5. Outer (D) Inch 0.8661
6. Width (B) Inch 1.2598
7. Length (L) mm 32

Suffix description

1. B Guideways And Carriages May Only Be Combined With Each Other Within The Same Accuracy And Interchangeability Class, So A Can Only Be Combined With A, And B Can Only Be Combined With B

Technical details

1. Availability 4 pcs
2. Brand INA
3. Item number KNO12-B INA
4. Also known as 0296807190000
   KNO1232
   LBCF12A
   LMES12OP
   R0671-012-00
   SPM12OPN
   TK12OP

5. EAN 4047643206693
6. Category Linear Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.012

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Load capacity stat. (C 0 max) 640
2. ECLASS number 23-30-03-01
3. ECLASS2 number 23-30-03-01

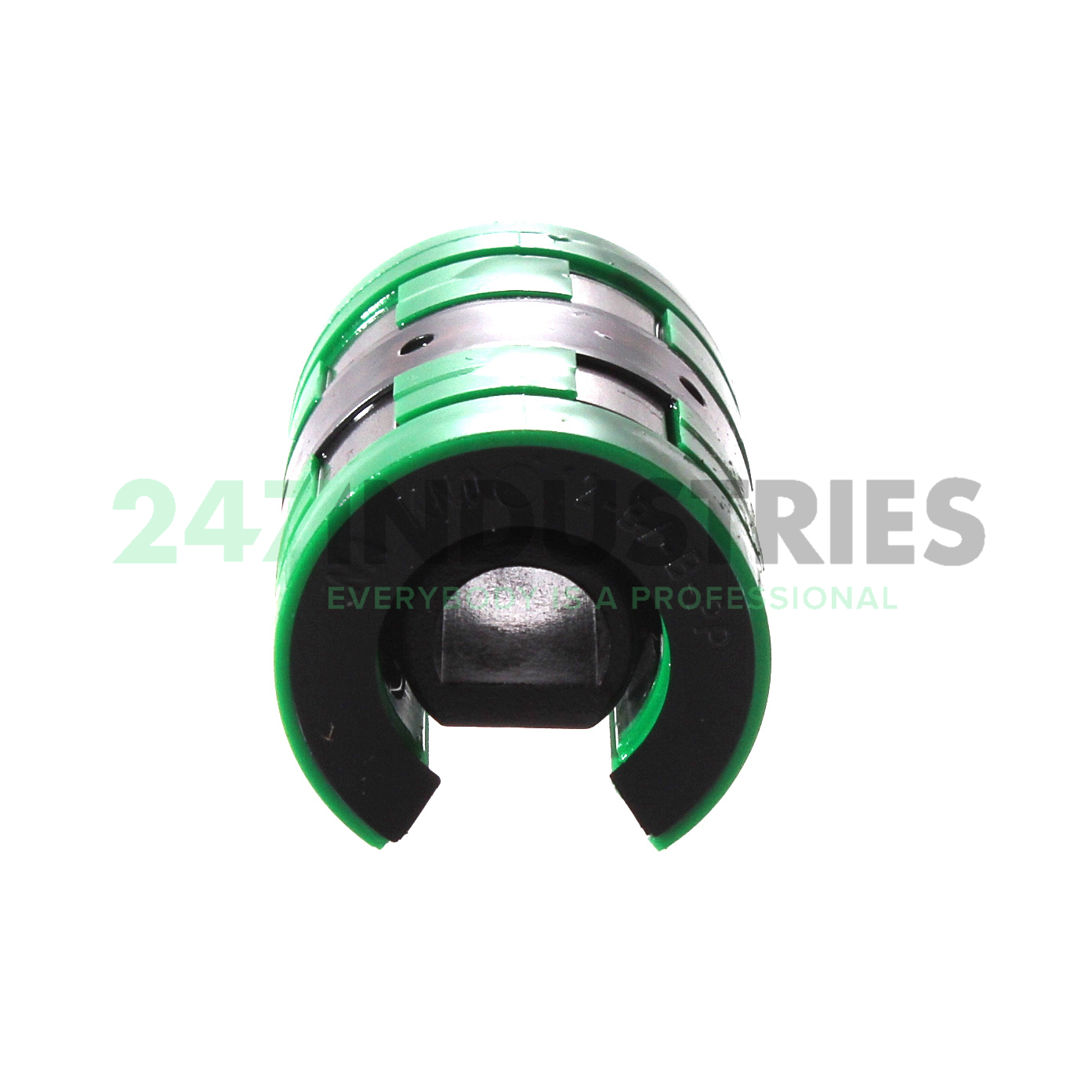

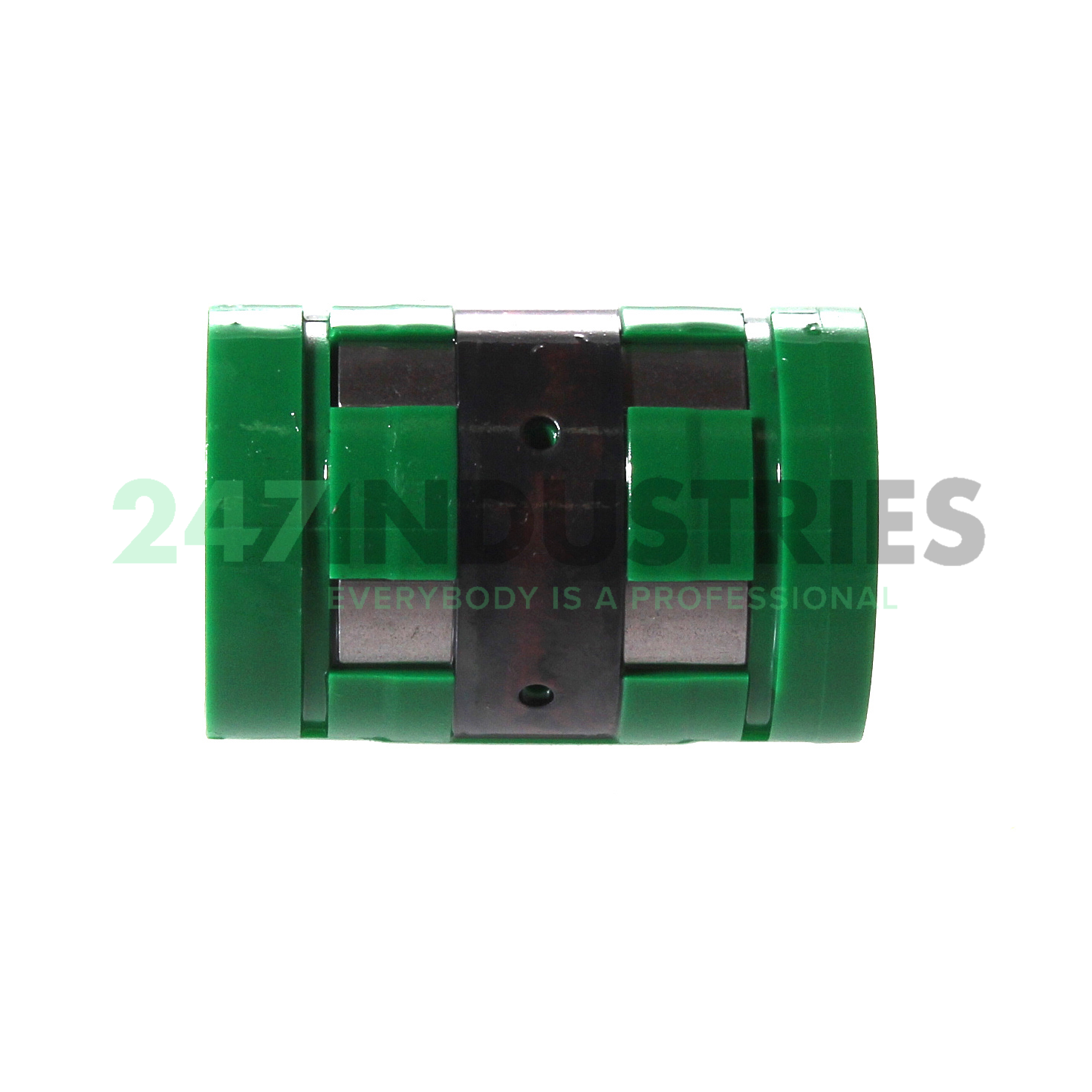

4. Medias description Linear ball bearings KNO..-B, Lightweight range, open design, with relubrication facility, adjustable angle
