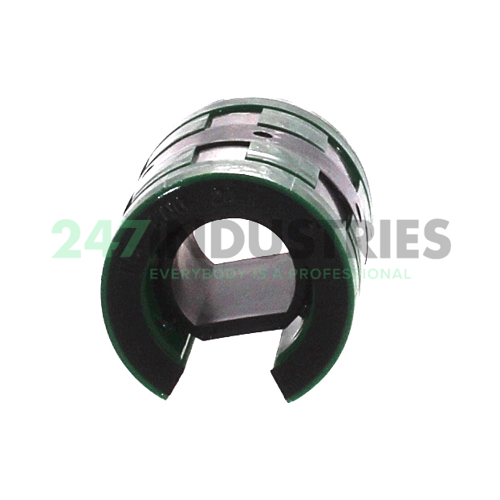

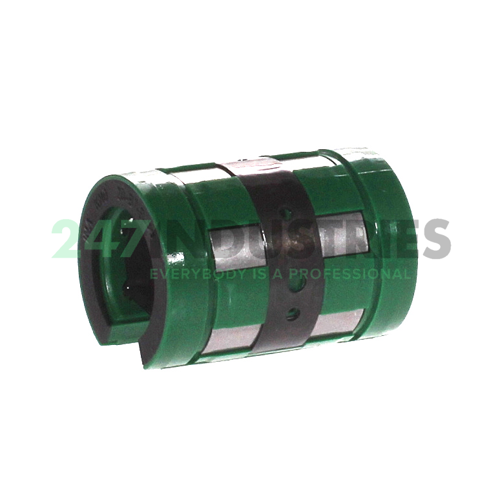

KNO20-B INA

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 32
3. Width (B) MM 45
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.2598
6. Width (B) Inch 1.7717
7. Length (L) mm 45

Suffix description

1. B Guideways And Carriages May Only Be Combined With Each Other Within The Same Accuracy And Interchangeability Class, So A Can Only Be Combined With A, And B Can Only Be Combined With B

Technical details

1. Availability 34 pcs
2. Brand INA
3. Item number KNO20-B INA
4. Also known as 0296807780000
   KNO2045
   LBCF20A
   LMES20OP
   R0671-020-00
   SPM20OPN
   TK20OP

5. EAN 4054362444824
6. Category Linear Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.035

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Load capacity stat. (C 0 max) 1240
2. ECLASS number 23-30-03-01
3. ECLASS2 number 23-30-03-01
4. Medias description Linear ball bearings KNO..-B, Lightweight range, open design, with relubrication facility, adjustable angle

Downloads and links

1. Link to manufacturer Link to manufacturer
