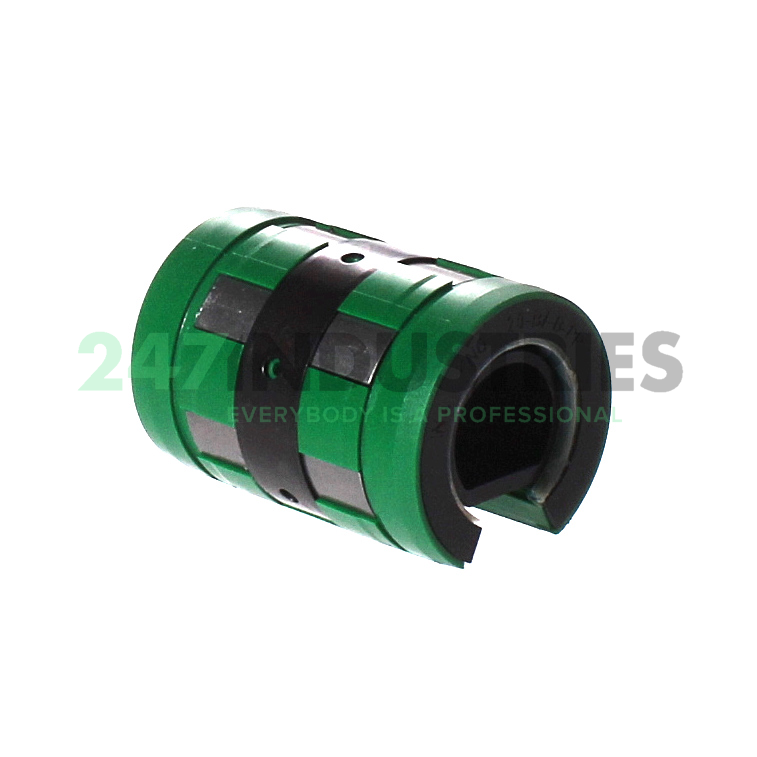

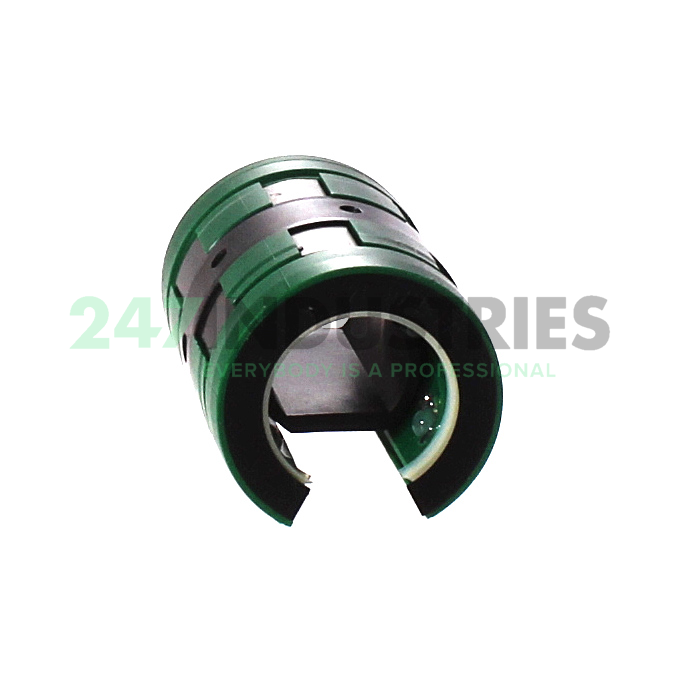

KNO20-B-PP INA

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 32
3. Width (B) MM 45
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.2598
6. Width (B) Inch 1.7717
7. Length (L) mm 45

Suffix description

1. B Guideways And Carriages May Only Be Combined With Each Other Within The Same Accuracy And Interchangeability Class, So A Can Only Be Combined With A, And B Can Only Be Combined With B
2. PP Lip Seal On Both Sides Of Bearing

Technical details

1. Availability 35 pcs
2. Brand INA
3. Item number KNO20-B-PP INA
4. Also known as 0193233870000
   BCF20A-2LS
   KNO2045PP
   LMES20UUOP
   R0671-220-40
   SPM20OPNWW
   TK20UUOP

5. EAN 4012802442564
6. Category Linear Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.035

Product Properties

1. Seal 2L - LS-seal at Both Sides

Data from Schaeffler (medias)

1. Load capacity stat. (C 0 max) 1240
2. ECLASS number 23-30-03-01
3. ECLASS2 number 23-30-03-01
4. Medias description Linear ball bearings KNO..-B-PP, Lightweight range, open design, sealed on all sides, with relubrication facility, adjustable angle
