KNO40-B-PP INA

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 62
3. Width (B) MM 80
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 2.4409
6. Width (B) Inch 3.1496
7. Length (L) mm 80

Suffix description

1. B Guideways And Carriages May Only Be Combined With Each Other Within The Same Accuracy And Interchangeability Class, So A Can Only Be Combined With A, And B Can Only Be Combined With B
2. PP Lip Seal On Both Sides Of Bearing

Technical details

1. Availability 15 pcs
2. Brand INA
3. Item number KNO40-B-PP INA
4. Also known as 0244575400000
   KNO4080PP
   LBCF40A-2LS
   LMES40UUOP
   R0671-240-40
   SPM40OPNWW
   TK40UUOP

5. EAN 4047643206815
6. Category Linear Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.22

Product Properties

1. Seal 2L - LS-seal at Both Sides

Data from Schaeffler (medias)

1. Load capacity stat. (C 0 max) 4350
2. ECLASS number 23-30-03-01
3. ECLASS2 number 23-30-03-01

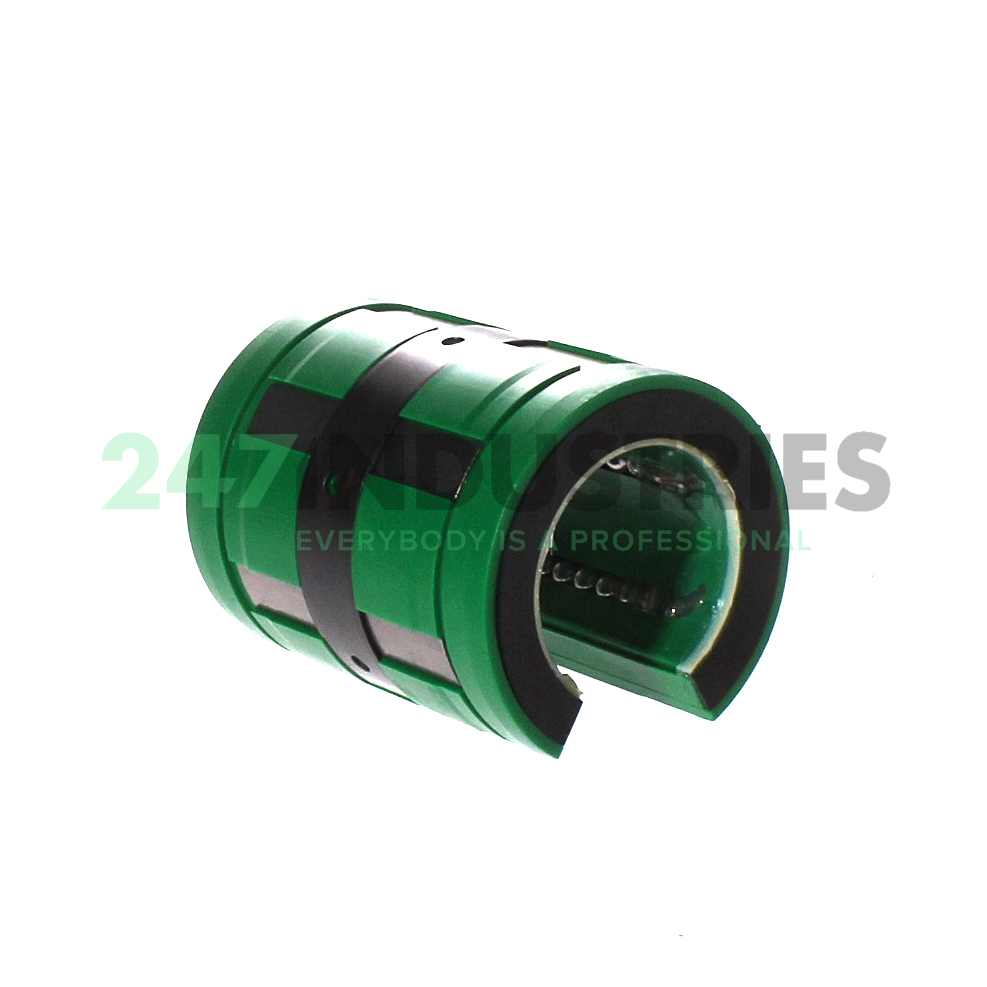

4. Medias description Linear ball bearings KNO..-B-PP, Lightweight range, open design, sealed on all sides, with relubrication facility, adjustable angle

Downloads and links

1. Link to manufacturer Link to manufacturer
