KR16-SK-PP-A INA

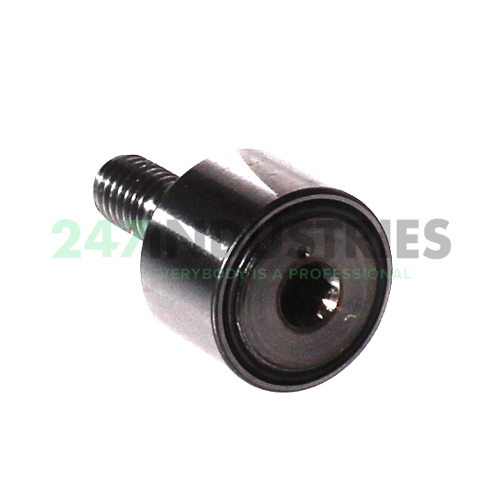

Cam follower with needle rollers

Stock
75 pcs in stock and ready for shipment
Brand INA
Article number KR16-SK-PP-A INA
Inside diameter 6mm
Outside diameter 16mm
Width 11mm
Product description

The KR16-SK-PP-A INA is a cam follower with needle rollers. These rolling elements combine high load capacity with a compact design. Cam followers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Instead of an inner ring, they feature a solid, threaded stud, enabling easy mounting. Axial loads due to alignment errors or misalignment can be absorbed in both directions. They are not mounted in a housing bore, but a flat (counter) track provides support.

The KR16-SK-PP-A INA is equipped with a cage that prevents the rolling elements from coming into contact with each other. This design allows for a controlled movement of the rolling elements. There is lower friction compared to full complement cam followers, allowing for higher rotational speeds and less heat generation. Common applications of cam followers include conveyor systems, linear guidance systems, and cam mechanisms.

Read more Show less
Help with this product

Downloads and links

Similar to: KR16-SK-PP-A INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 6
  2. Outer (D) MM 16
  3. Width (B) MM 11
  4. Inner (d) Inch 0.2362
  5. Outer (D) Inch 0.6299
  6. Width (B) Inch 0.4331
  7. Fit diameter of roller stud / stud (d 1) mm 6
  8. Width of the roller stud (B) mm 28

Suffix description

  1. SK Stud Type Cam Follower, With Hexagonal Socket
  2. PP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded), Temperature Range -30 ~ 100℃
  3. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Technical details

  1. Availability 75 pcs
  2. Brand INA
  3. Item number KR16-SK-PP-A INA
  4. Also known as 0057351060000
  5. EAN 4012802420463
  6. Category Cam Follower

Weight and Dimensions

  1. Weight (kg) 0.01785

Product Properties

  1. Seal 2L - LS-seal at Both Sides
  2. Excenterring Other Mounting Method
  3. Running Surface Standard

Data from Schaeffler (medias)

  1. Basic dynamic load rating, radial (C r w) 3200
  2. Basic static load rating, radial (C 0r) 3450
  3. Speed on permanent grease lubrication (n D G) 14000
  4. ECLASS number 23-05-15-02
  5. ECLASS2 number 23-05-15-02
  6. Medias description Yoke type track roller KR..-SK-PP-A, with cage, with axial guidance, no eccentric
