KR32PPX INA

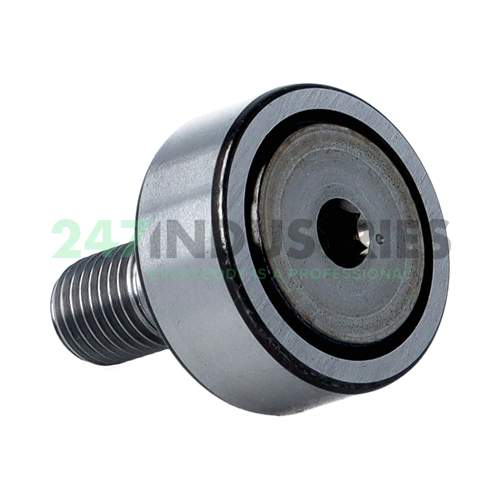

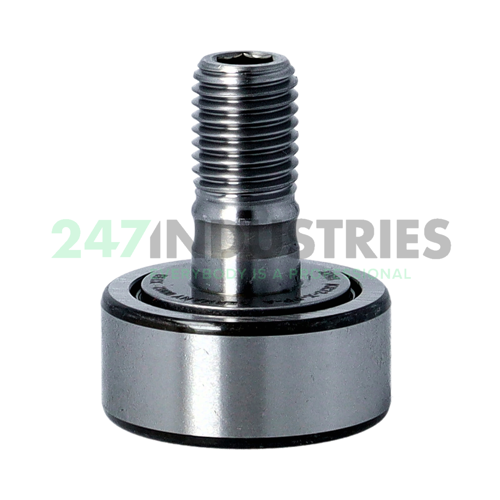

Cam follower with needle rollers

Stock
1 pc in stock and ready for shipment
Brand INA
Article number KR32PPX INA
Inside diameter 12mm
Outside diameter 32mm
Width 14mm
Product description

The KR32PPX INA is a cam follower with needle rollers. These rolling elements combine high load capacity with a compact design. Cam followers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Instead of an inner ring, they feature a solid, threaded stud, enabling easy mounting. Axial loads due to alignment errors or misalignment can be absorbed in both directions. They are not mounted in a housing bore, but a flat (counter) track provides support.

The KR32PPX INA is equipped with a cage that prevents the rolling elements from coming into contact with each other. This design allows for a controlled movement of the rolling elements. There is lower friction compared to full complement cam followers, allowing for higher rotational speeds and less heat generation. Common applications of cam followers include conveyor systems, linear guidance systems, and cam mechanisms.

Read more Show less
Help with this product

Similar to: KR32PPX INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 12
  2. Outer (D) MM 32
  3. Width (B) MM 14
  4. Inner (d) Inch 0.4724
  5. Outer (D) Inch 1.2598
  6. Width (B) Inch 0.5512

Suffix description

  1. PP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded), Temperature Range -30 ~ 100℃
  2. X Cylindrical Running Surface

Technical details

  1. Availability 1 pc
  2. Brand INA
  3. Item number KR32PPX INA
  4. Also known as KR32.2RSDZ
  5. Category Cam Follower

Weight and Dimensions

  1. Weight (kg) 0.105

Product Properties

  1. Seal 2L - LS-seal at Both Sides
  2. Excenterring Other Mounting Method
  3. Running Surface Cylindrical
