KR35-PP-A-NMT INA

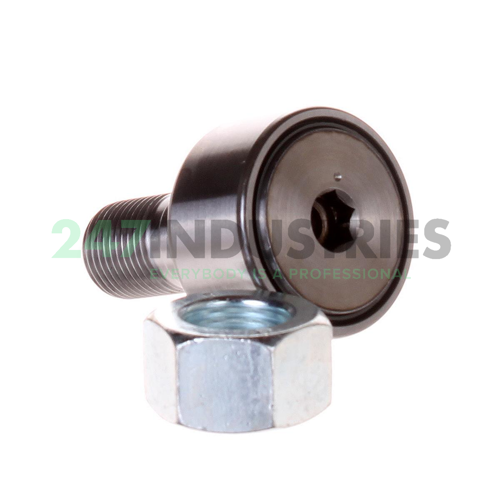

Cam follower with needle rollers

Stock
23 pcs in stock and ready for shipment
Brand INA
Article number KR35-PP-A-NMT INA
Inside diameter 16mm
Outside diameter 35mm
Width 18mm
Product description

The KR35-PP-A-NMT INA is a cam follower with needle rollers. These rolling elements combine high load capacity with a compact design. Cam followers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Instead of an inner ring, they feature a solid, threaded stud, enabling easy mounting. Axial loads due to alignment errors or misalignment can be absorbed in both directions. They are not mounted in a housing bore, but a flat (counter) track provides support.

The KR35-PP-A-NMT INA is equipped with a cage that prevents the rolling elements from coming into contact with each other. This design allows for a controlled movement of the rolling elements. There is lower friction compared to full complement cam followers, allowing for higher rotational speeds and less heat generation. Common applications of cam followers include conveyor systems, linear guidance systems, and cam mechanisms.

Read more Show less
Help with this product

Downloads and links

Similar to: KR35-PP-A-NMT INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 16
  2. Outer (D) MM 35
  3. Width (B) MM 18
  4. Inner (d) Inch 0.6299
  5. Outer (D) Inch 1.378
  6. Width (B) Inch 0.7087
  7. Fit diameter of roller stud / stud (d 1) mm 16
  8. Width of the roller stud (B) mm 52

Suffix description

  1. PP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded), Temperature Range -30 ~ 100℃
  2. A Alteration In Internal Construction. Identical To Old Notation
  3. NMT Hexagon Nut

Technical details

  1. Availability 23 pcs
  2. Brand INA
  3. Item number KR35-PP-A-NMT INA
  4. Also known as 0056658840078
  5. EAN 4047643178983
  6. Category Cam Follower

Weight and Dimensions

  1. Weight (kg) 0.17

Product Properties

  1. Seal 2L - LS-seal at Both Sides
  2. Excenterring Other Mounting Method
  3. Running Surface Standard

Data from Schaeffler (medias)

  1. Basic dynamic load rating, radial (C r w) 9700
  2. Basic static load rating, radial (C 0r) 14500
  3. Speed on permanent grease lubrication (n D G) 3600
  4. ECLASS number 23-05-15-02
  5. ECLASS2 number 23-05-15-02
  6. Medias description Stud type track rollers KR..-PP, with axial guidance, plastic axial plain washers on both sides
