KR80-X-PP-A-NMT INA

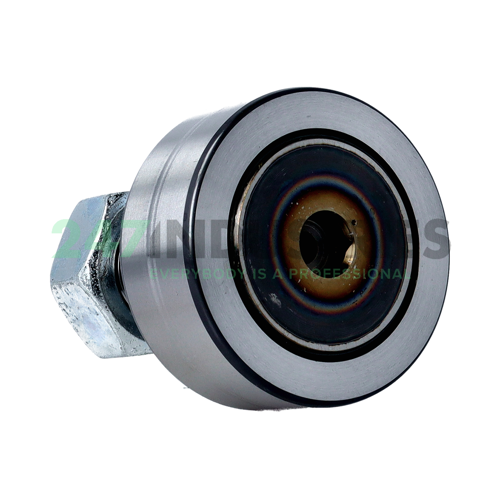

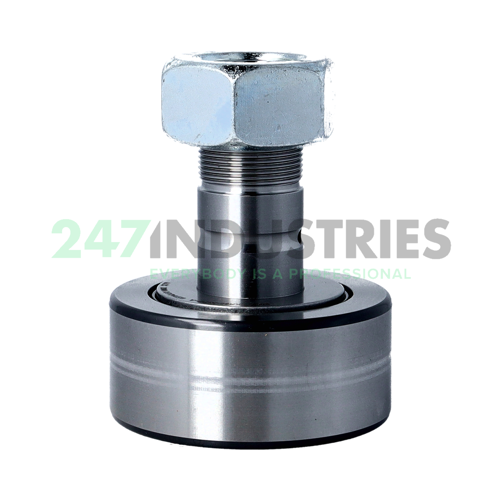

Cam follower with needle rollers

Stock
1 pc in stock and ready for shipment
Brand INA
Article number KR80-X-PP-A-NMT INA
Inside diameter 30mm
Outside diameter 80mm
Width 35mm
Product description

The KR80-X-PP-A-NMT INA is a cam follower with needle rollers. These rolling elements combine high load capacity with a compact design. Cam followers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Instead of an inner ring, they feature a solid, threaded stud, enabling easy mounting. Axial loads due to alignment errors or misalignment can be absorbed in both directions. They are not mounted in a housing bore, but a flat (counter) track provides support.

The KR80-X-PP-A-NMT INA is equipped with a cage that prevents the rolling elements from coming into contact with each other. This design allows for a controlled movement of the rolling elements. There is lower friction compared to full complement cam followers, allowing for higher rotational speeds and less heat generation. Common applications of cam followers include conveyor systems, linear guidance systems, and cam mechanisms.

Read more Show less
Help with this product

Downloads and links

Similar to: KR80-X-PP-A-NMT INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 30
  2. Outer (D) MM 80
  3. Width (B) MM 35
  4. Inner (d) Inch 1.1811
  5. Outer (D) Inch 3.1496
  6. Width (B) Inch 1.378
  7. Fit diameter of roller stud / stud (d 1) mm 30
  8. Width of the roller stud (B) mm 100

Suffix description

  1. X Cylindrical Running Surface
  2. PP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded), Temperature Range -30 ~ 100℃
  3. A Design Modification
  4. NMT Hexagon Nut

Technical details

  1. Availability 1 pc
  2. Brand INA
  3. Item number KR80-X-PP-A-NMT INA
  4. Also known as 0057525580078
  5. EAN 4054362446231
  6. Category Cam Follower

Weight and Dimensions

  1. Weight (kg) 1.87

Product Properties

  1. Seal 2L - LS-seal at Both Sides
  2. Excenterring Other Mounting Method
  3. Running Surface Cylindrical

Data from Schaeffler (medias)

  1. Basic dynamic load rating, radial (C r w) 38500
  2. Basic static load rating, radial (C 0r) 78000
  3. Speed on permanent grease lubrication (n D G) 1300
  4. ECLASS number 23-05-15-02
  5. ECLASS2 number 23-05-15-02
  6. Medias description Stud type track rollers KR..-PP, with axial guidance, plastic axial plain washers on both sides

Downloads and links

  1. Link to manufacturer Link to manufacturer
