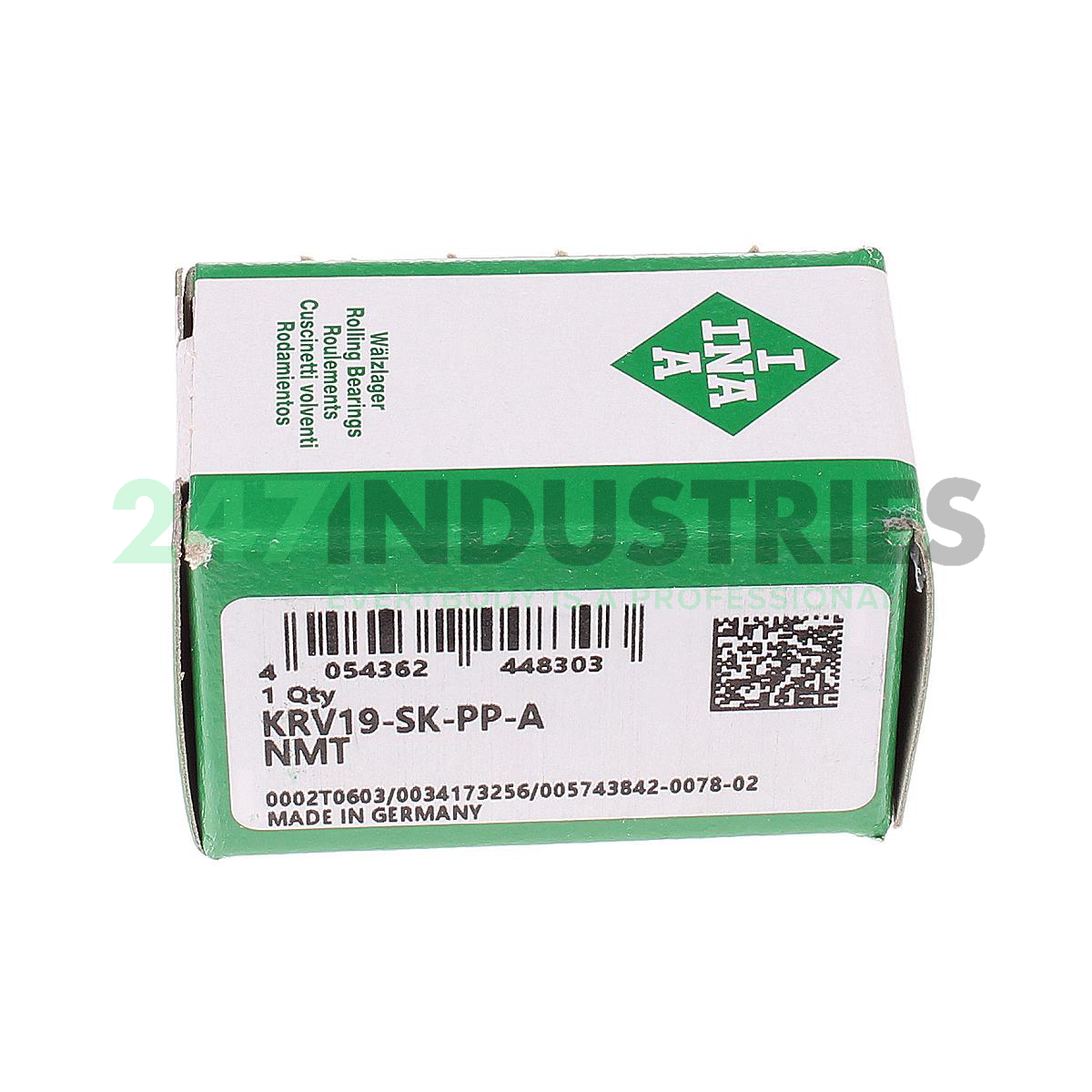

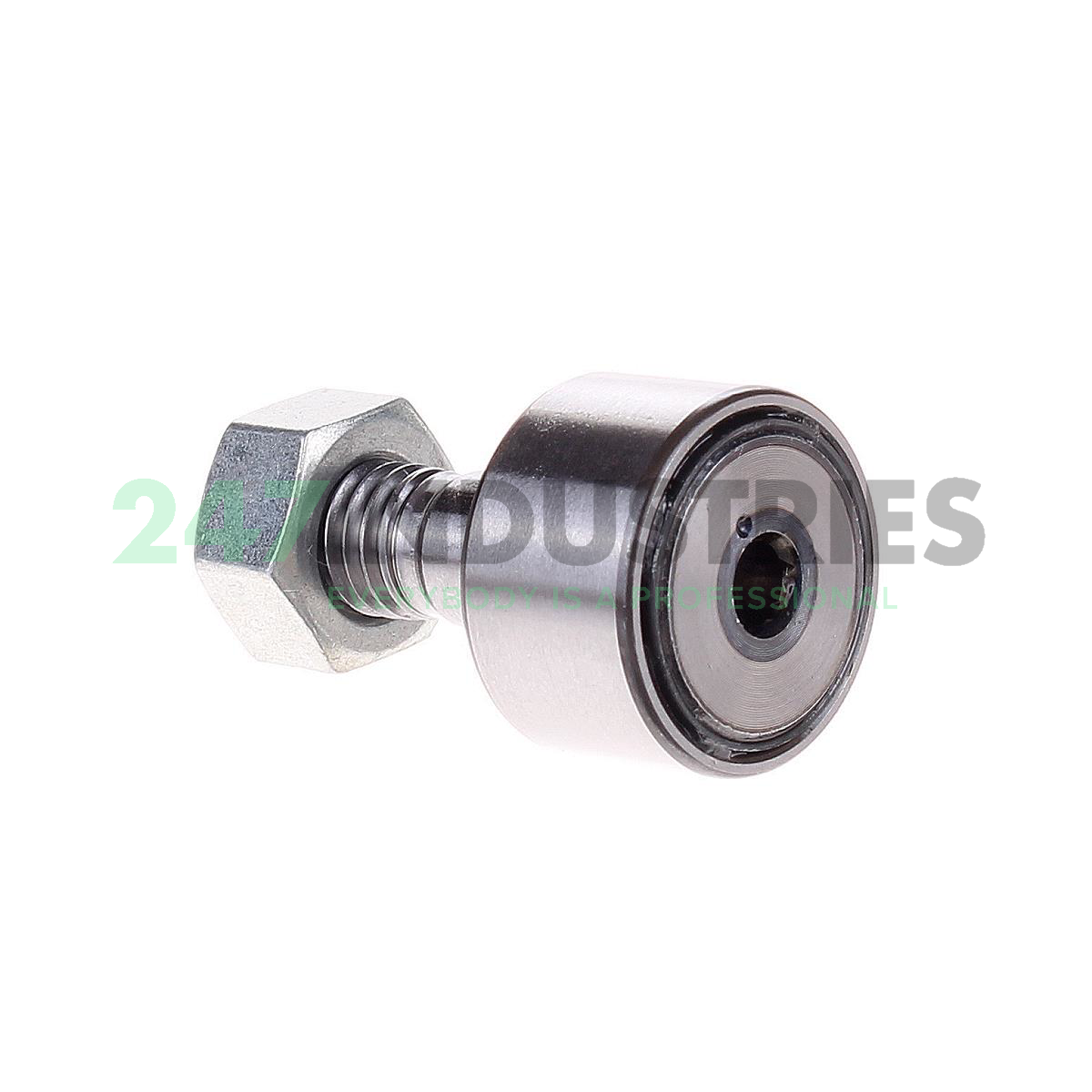

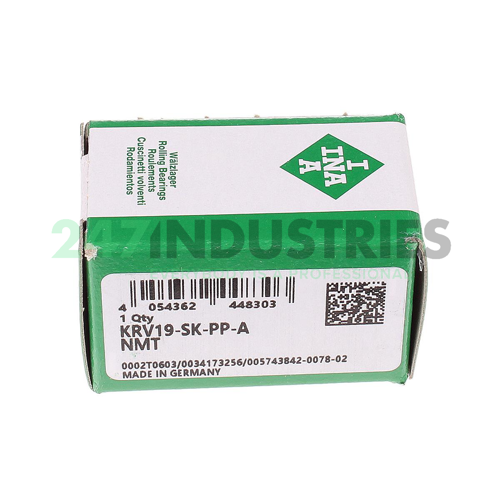

KRV19-SK-PP-A-NMT INA

Full complement cam follower with needle rollers

Stock
93 pcs in stock and ready for shipment
Brand INA
Article number KRV19-SK-PP-A-NMT INA
Inside diameter 8mm
Outside diameter 19mm
Width 32mm
Product description

The KRV19-SK-PP-A-NMT INA is a cam follower with needle rollers. These rolling elements combine high load capacity with a compact design. Cam followers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Instead of an inner ring, they feature a solid, threaded stud, enabling easy mounting. Axial loads due to alignment errors or misalignment can be absorbed in both directions. They are not mounted in a housing bore, but a flat (counter) track provides support.

The KRV19-SK-PP-A-NMT INA has a full complement design. The absence of a cage allows for a greater number of rolling elements, making this cam follower radially highly loadable. Full complement cam followers are also more shock-resistant than cam followers with a cage. However, the maximum rotational speed is lower than that of caged variants. Common applications of cam followers include conveyor systems, linear guidance systems, and cam mechanisms.

Read more Show less
Help with this product

Downloads and links

Similar to: KRV19-SK-PP-A-NMT INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 8
  2. Outer (D) MM 19
  3. Width (B) MM 32
  4. Inner (d) Inch 0.315
  5. Outer (D) Inch 0.748
  6. Width (B) Inch 1.2598
  7. Fit diameter of roller stud / stud (d 1) mm 8
  8. Width (b) mm 32

Suffix description

  1. SK Stud Type Cam Follower, With Hexagonal Socket
  2. PP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded), Temperature Range -30 ~ 100℃
  3. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
  4. NMT Hexagon Nut

Technical details

  1. Availability 93 pcs
  2. Brand INA
  3. Item number KRV19-SK-PP-A-NMT INA
  4. Also known as 0057438420078
  5. EAN 4054362448303
  6. Category Cam Follower

Weight and Dimensions

  1. Weight (kg) 0.029

Product Properties

  1. Seal 2L - LS-seal at Both Sides
  2. Excenterring Other Mounting Method
  3. Running Surface Standard

Data from Schaeffler (medias)

  1. Basic dynamic load rating, radial (C r w) 5400
  2. Basic static load rating, radial (C 0r) 8100
  3. Speed on permanent grease lubrication (n D G) 3100
  4. ECLASS number 23-05-15-02
  5. ECLASS2 number 23-05-15-02
  6. Medias description Stud type track rollers KRV..-PP, with axial guidance, full complement needle roller set, plastic axial plain washers on both sides
