KRV52PPXA INA

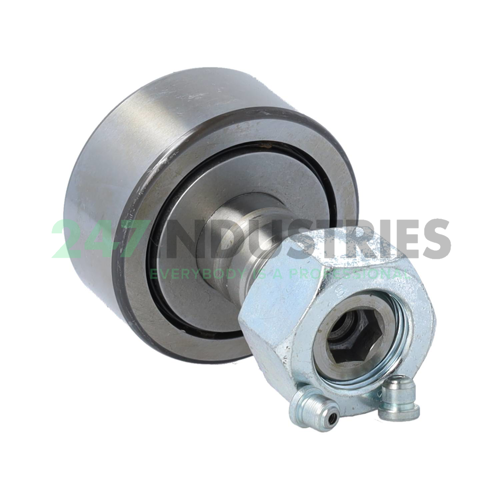

Full complement cam follower with needle rollers

Stock
6 pcs in stock and ready for shipment
Brand INA
Article number KRV52PPXA INA
Inside diameter 20mm
Outside diameter 52mm
Width 24mm
Product description

The KRV52PPXA INA is a cam follower with needle rollers. These rolling elements combine high load capacity with a compact design. Cam followers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Instead of an inner ring, they feature a solid, threaded stud, enabling easy mounting. Axial loads due to alignment errors or misalignment can be absorbed in both directions. They are not mounted in a housing bore, but a flat (counter) track provides support.

The KRV52PPXA INA has a full complement design. The absence of a cage allows for a greater number of rolling elements, making this cam follower radially highly loadable. Full complement cam followers are also more shock-resistant than cam followers with a cage. However, the maximum rotational speed is lower than that of caged variants. Common applications of cam followers include conveyor systems, linear guidance systems, and cam mechanisms.

Read more Show less
Help with this product

Similar to: KRV52PPXA INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 20
  2. Outer (D) MM 52
  3. Width (B) MM 24
  4. Inner (d) Inch 0.7874
  5. Outer (D) Inch 2.0472
  6. Width (B) Inch 0.9449

Suffix description

  1. PP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded), Temperature Range -30 ~ 100℃
  2. X Cylindrical Running Surface
  3. A Alteration In Internal Construction. Identical To Old Notation.Alteration In Internal Construction

Technical details

  1. Availability 6 pcs
  2. Brand INA
  3. Item number KRV52PPXA INA
  4. Category Cam Follower

Weight and Dimensions

  1. Weight (kg) 0.465

Product Properties

  1. Seal 2L - LS-seal at Both Sides
  2. Excenterring Other Mounting Method
  3. Running Surface Cylindrical
