KRVE30-PP-A-NMT INA

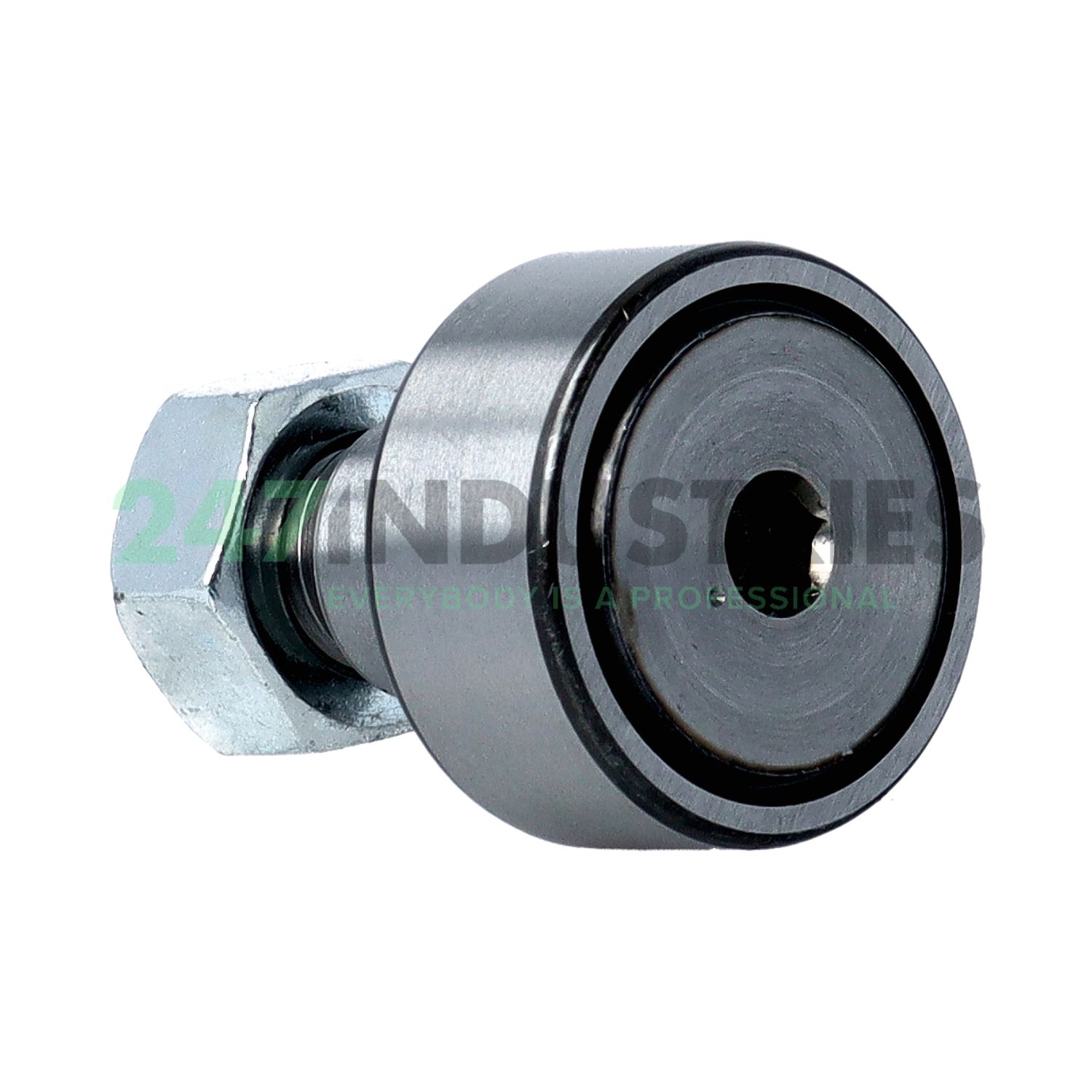

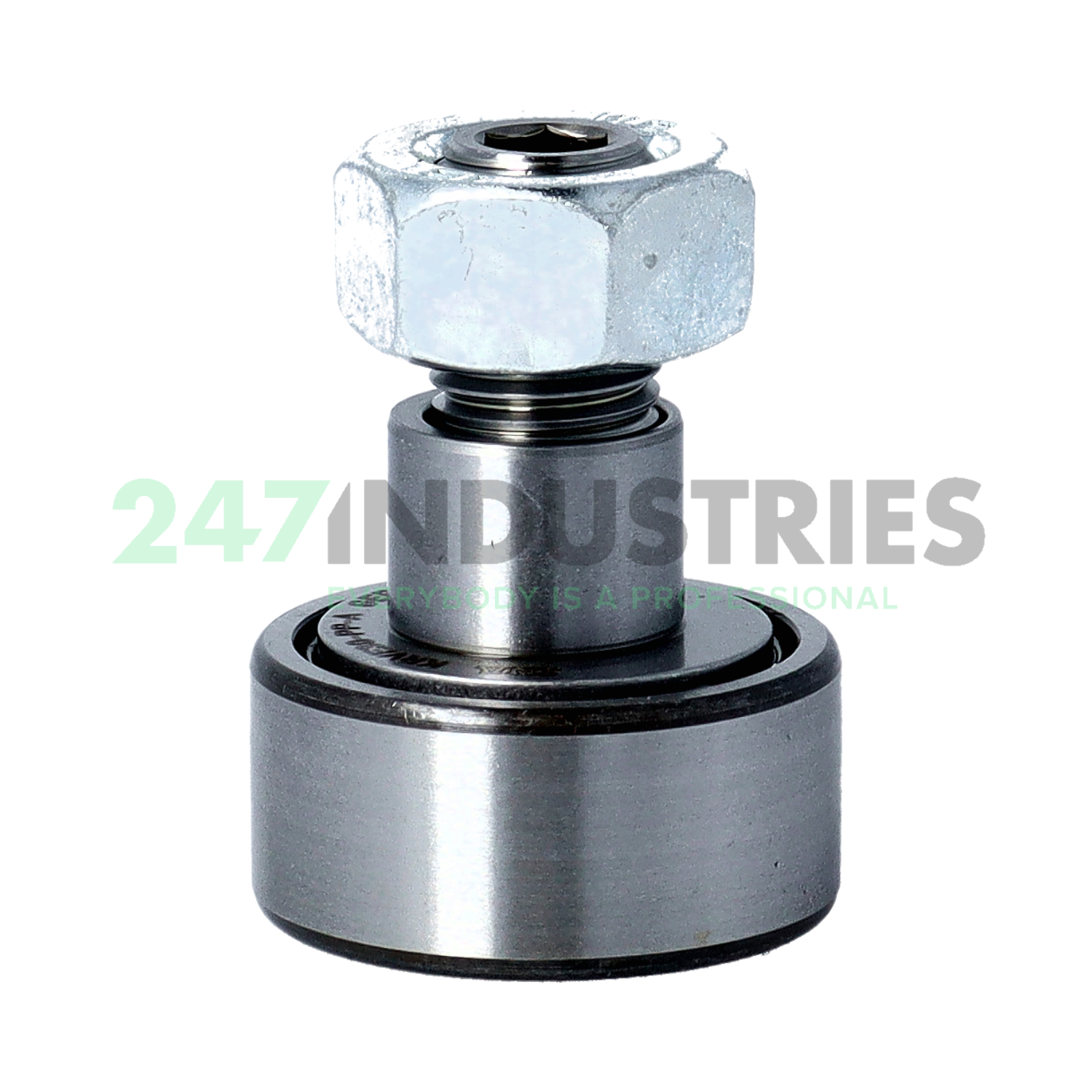

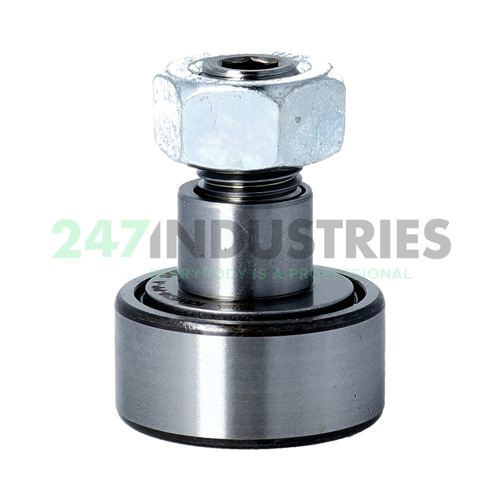

Full complement cam follower with needle rollers

Stock
24 pcs in stock and ready for shipment
Brand INA
Article number KRVE30-PP-A-NMT INA
Inside diameter 15mm
Outside diameter 30mm
Width 14mm
Product description

The KRVE30-PP-A-NMT INA is a cam follower with needle rollers. These rolling elements combine high load capacity with a compact design. Cam followers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Instead of an inner ring, they feature a solid, threaded stud, enabling easy mounting. Axial loads due to alignment errors or misalignment can be absorbed in both directions. They are not mounted in a housing bore, but a flat (counter) track provides support.

The KRVE30-PP-A-NMT INA has a full complement design. The absence of a cage allows for a greater number of rolling elements, making this cam follower radially highly loadable. Full complement cam followers are also more shock-resistant than cam followers with a cage. However, the maximum rotational speed is lower than that of caged variants. Common applications of cam followers include conveyor systems, linear guidance systems, and cam mechanisms.

Read more Show less
Help with this product

Downloads and links

Similar to: KRVE30-PP-A-NMT INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 15
  2. Outer (D) MM 30
  3. Width (B) MM 14
  4. Inner (d) Inch 0.5906
  5. Outer (D) Inch 1.1811
  6. Width (B) Inch 0.5512
  7. Fit diameter of roller stud / stud (d 1) mm 12
  8. Width (b) mm 40

Suffix description

  1. PP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded), Temperature Range -30 ~ 100℃
  2. A Alteration In Internal Construction. Identical To Old Notation
  3. NMT Hexagon Nut

Technical details

  1. Availability 24 pcs
  2. Brand INA
  3. Item number KRVE30-PP-A-NMT INA
  4. Also known as 0055917590078
  5. EAN 4047643179218
  6. Category Cam Follower

Weight and Dimensions

  1. Weight (kg) 0.118

Product Properties

  1. Seal 2L - LS-seal at Both Sides
  2. Excenterring E - Excenterring with Inbus Mount
  3. Running Surface Standard

Data from Schaeffler (medias)

  1. Basic dynamic load rating, radial (C r w) 9500
  2. Basic static load rating, radial (C 0r) 15100
  3. Speed on permanent grease lubrication (n D G) 2100
  4. ECLASS number 23-05-15-02
  5. ECLASS2 number 23-05-15-02
  6. Medias description Yoke type track roller KRVE..-PP-A-NMT, full complement needle roller set, with axial guidance, with eccentric
