KRVE72PPA SKF

Full complement cam follower with needle rollers

Stock
12 pcs in stock and ready for shipment
Brand SKF
Article number KRVE72PPA SKF
Inside diameter 28mm
Outside diameter 72mm
Width 29mm
Product description

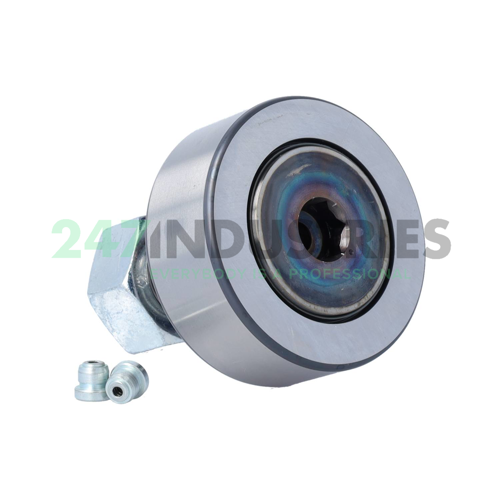

The KRVE72PPA SKF is a cam follower with needle rollers. These rolling elements combine high load capacity with a compact design. Cam followers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Instead of an inner ring, they feature a solid, threaded stud, enabling easy mounting. Axial loads due to alignment errors or misalignment can be absorbed in both directions. They are not mounted in a housing bore, but a flat (counter) track provides support.

The KRVE72PPA SKF has a full complement design. The absence of a cage allows for a greater number of rolling elements, making this cam follower radially highly loadable. Full complement cam followers are also more shock-resistant than cam followers with a cage. However, the maximum rotational speed is lower than that of caged variants. Common applications of cam followers include conveyor systems, linear guidance systems, and cam mechanisms.

Read more Show less
Help with this product

Similar to: KRVE72PPA SKF

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 28
  2. Outer (D) MM 72
  3. Width (B) MM 29
  4. Inner (d) Inch 1.1024
  5. Outer (D) Inch 2.8346
  6. Width (B) Inch 1.1417

Suffix description

  1. PPA NATR Or NATV Design Support Roller With A Polyamide 66 Axial Sliding And Sealing Ring On Both Sides. Improved Crowned Profile Of The Outer Ring Running Surface, KR Design Cam Follower Have The Same Features As NATR Or NATV, Sizes 16 And 19 Have One Slot In The Head Of The Stud As Standard. Sizes ≥ 22 Have A Recessed Hexagon On Both Ends

Technical details

  1. Availability 12 pcs
  2. Brand SKF
  3. Item number KRVE72PPA SKF
  4. EAN 7316571620770
  5. Category Cam Follower

Weight and Dimensions

  1. Weight (kg) 1.18

Product Properties

  1. Seal 2L - LS-seal at Both Sides
  2. Excenterring E - Excenterring with Inbus Mount
  3. Running Surface Standard
