KWSE25-H-V2-G1 INA

All dimensions

1. Inner (d) MM 23
2. Outer (D) MM 48
3. Width (B) MM 81,8
4. Inner (d) Inch 0.9055
5. Outer (D) Inch 1.8898
6. Width (B) Inch 3.2205
7. Width carriage (B) mm 48
8. Overall length carriage (L) mm 81,8

Suffix description

1. H High Carriage
2. V2 Preload Class 2
3. G1 Precision Class 1

Technical details

1. Availability 14 pcs
2. Brand INA
3. Item number KWSE25-H-V2-G1 INA
4. Also known as 0007729840320
   KWSE25-H-G1-V2

5. EAN 4054362945413
6. Category Linear Plain Bearing Unit

Weight and Dimensions

1. Weight (kg) 0.5

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Dynamic load rating, load direction I: compressive load (I C) 28000
2. Static load rating, load direction I: compressive load (I C 0) 67000
3. Dynamic load rating, load direction II: tensile load (II C) 26000
4. Static load rating, load direction II: tensile load (II C 0) 45000
5. Dynamic load rating; basic dynamic load rating, Load direction III: lateral load (III C) 28000
6. Static load rating, Load direction III: lateral load (III C 0) 47000
7. ECLASS number 23-30-04-90
8. ECLASS2 number 23-30-04-90

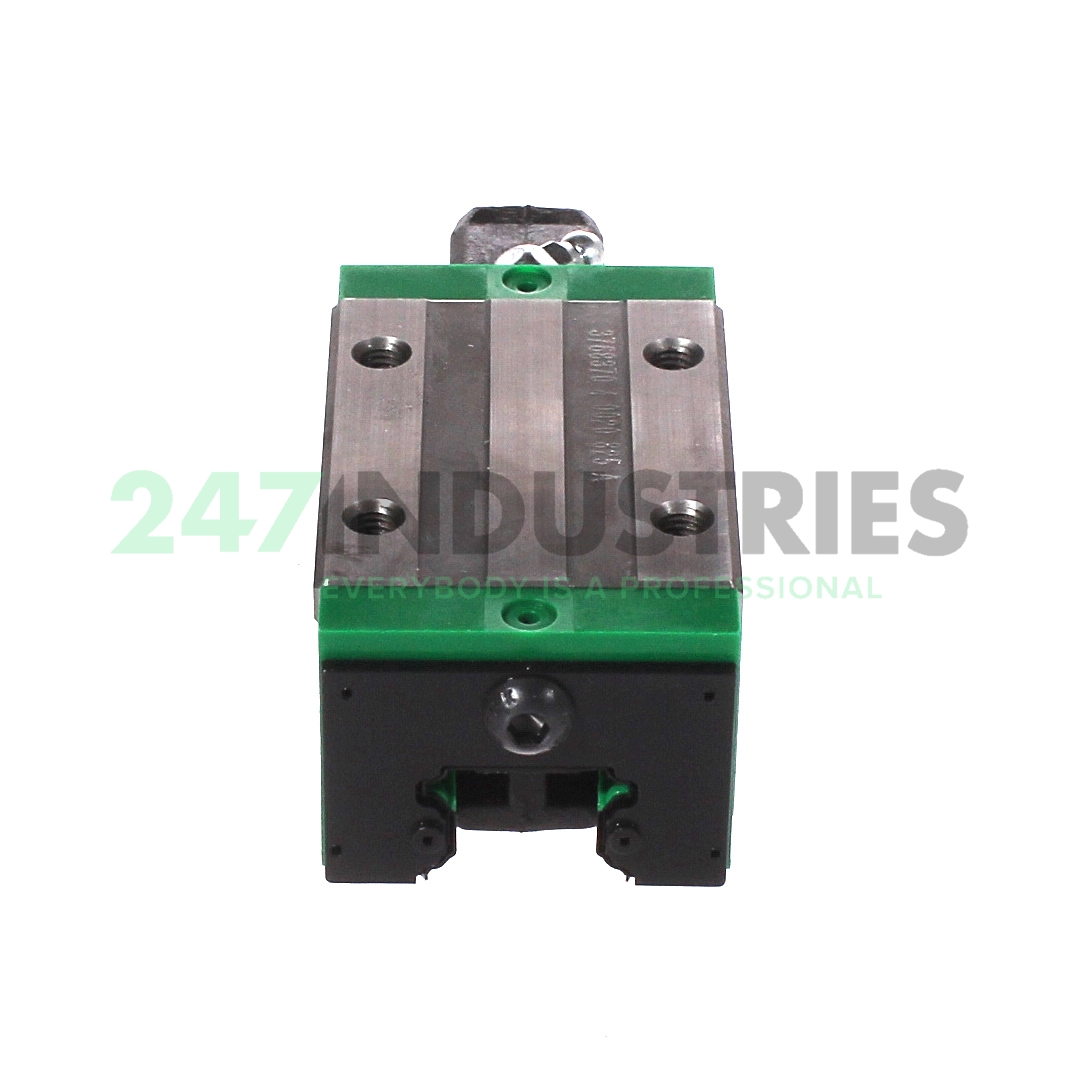

9. Medias description High, narrow carriage for six-row linear recirculating ball bearing and guideway assembly

Downloads and links

1. Link to manufacturer Link to manufacturer
