KWSE30-V2-G2 INA

All dimensions

1. Inner (d) MM 28
2. Outer (D) MM 90
3. Width (B) MM 91,4
4. Inner (d) Inch 1.1024
5. Outer (D) Inch 3.5433
6. Width (B) Inch 3.5984
7. Width carriage (B) mm 90
8. Overall length carriage (L) mm 91,6

Suffix description

1. V2 Preload Class 2
2. G2 Precision Class 2

Technical details

1. Availability 10 pcs
2. Brand INA
3. Item number KWSE30-V2-G2 INA
4. Also known as 0007729920330
   KWSE30-G2-V2

5. EAN 4054362954002
6. Category Linear Plain Bearing Unit

Weight and Dimensions

1. Weight (kg) 1.2

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Dynamic load rating, load direction I: compressive load (I C) 40000
2. Static load rating, load direction I: compressive load (I C 0) 80000
3. Dynamic load rating, load direction II: tensile load (II C) 37800
4. Static load rating, load direction II: tensile load (II C 0) 60000
5. Dynamic load rating; basic dynamic load rating, Load direction III: lateral load (III C) 40000
6. Static load rating, Load direction III: lateral load (III C 0) 62000
7. ECLASS number 23-30-04-90
8. ECLASS2 number 23-30-04-90

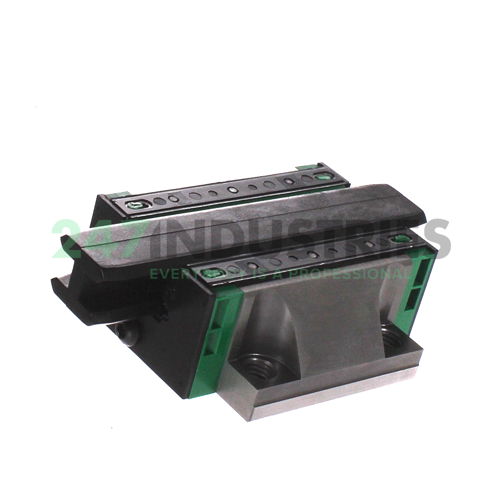

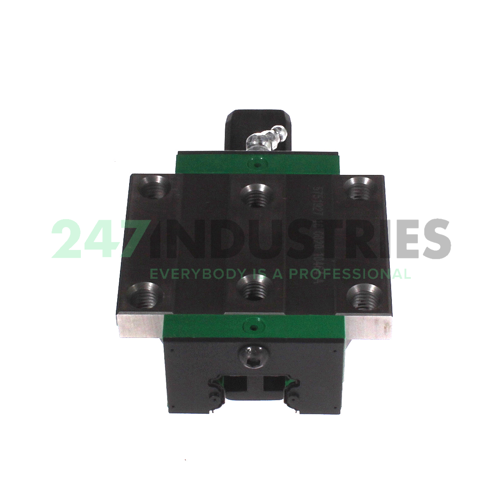

9. Medias description Standard carriage for six-row linear recirculating ball bearing and guideway assembly
