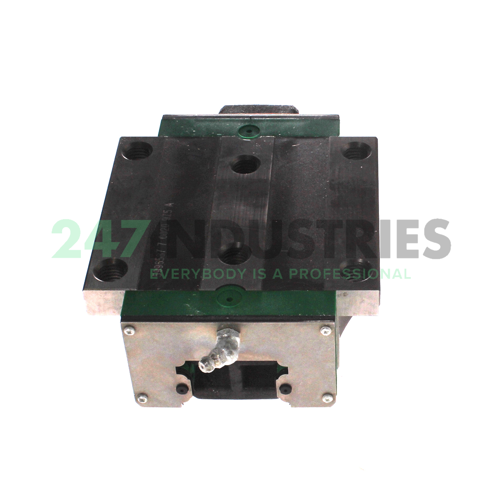

KWSE45-V1-G3 INA

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 120
3. Width (B) MM 136,7
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 4.7244
6. Width (B) Inch 5.3819
7. Width carriage (B) mm 120
8. Overall length carriage (L) mm 138,7

Suffix description

1. V1 Slight Preload
2. G3 Precision Class 3

Technical details

1. Availability 7 pcs
2. Brand INA
3. Item number KWSE45-V1-G3 INA
4. Also known as 0007732120240
   KWSE45-G3-V1

5. EAN 4054362959281
6. Category Linear Plain Bearing Unit

Weight and Dimensions

1. Weight (kg) 3.15

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Dynamic load rating, load direction I: compressive load (I C) 80000
2. Static load rating, load direction I: compressive load (I C 0) 174000
3. Dynamic load rating, load direction II: tensile load (II C) 72300
4. Static load rating, load direction II: tensile load (II C 0) 117400
5. Dynamic load rating; basic dynamic load rating, Load direction III: lateral load (III C) 76900
6. Static load rating, Load direction III: lateral load (III C 0) 121800
7. ECLASS number 23-30-04-90
8. ECLASS2 number 23-30-04-90
9. Medias description Standard carriage for six-row linear recirculating ball bearing and guideway assembly
