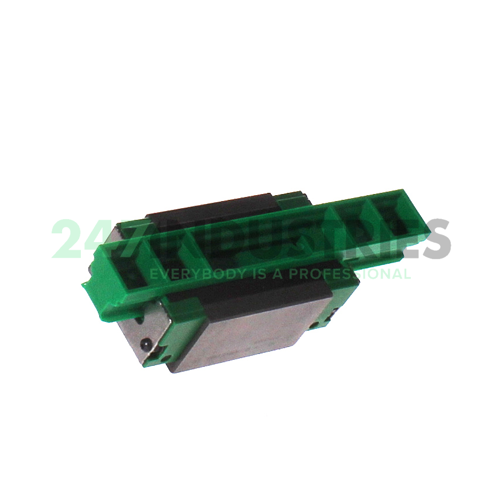

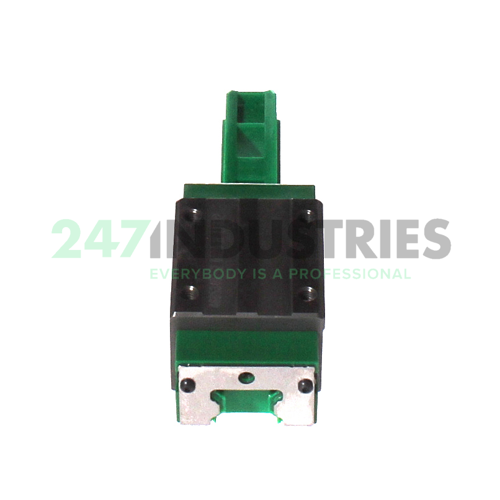

KWVE15-B-H-V2-G4 INA

All dimensions

1. Inner (d) MM 15
2. Outer (D) MM 34
3. Width (B) MM 61,2
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 1.3386
6. Width (B) Inch 2.4094
7. Width carriage (B) mm 34
8. Overall length carriage (L) mm 61,2

Suffix description

1. B Version
2. H High Carriage
3. V2 Preload Class 2
4. G4 Precision Class 4

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number KWVE15-B-H-V2-G4 INA
4. Also known as 0197459580350
   KWVE15-B-H-G4-V2

5. EAN 4054362963639
6. Category Linear Plain Bearing Unit

Weight and Dimensions

1. Weight (kg) 0.2

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Dynamic load rating (C) 7200
2. Static load rating (C 0) 14500
3. Static moment rating about X axis (M 0x) 150
4. Static moment rating about Y axis (M 0y) 100
5. Static moment rating about Z axis (M 0z) 100
6. ECLASS number 23-30-04-90
7. ECLASS2 number 23-30-04-90
8. Medias description Carriages KWVE..-B-H, high, narrow carriage, four-row

Downloads and links

1. Link to manufacturer Link to manufacturer
