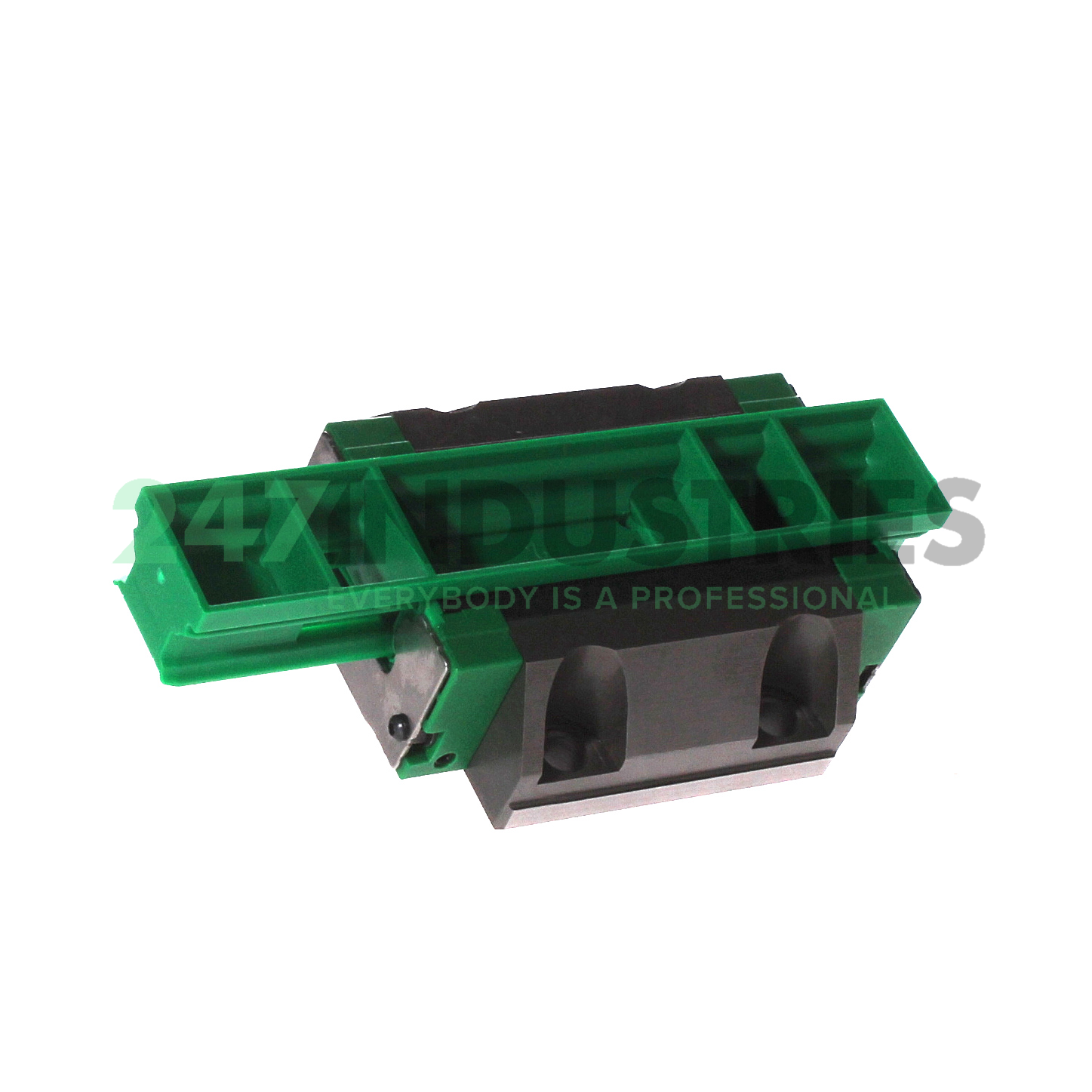

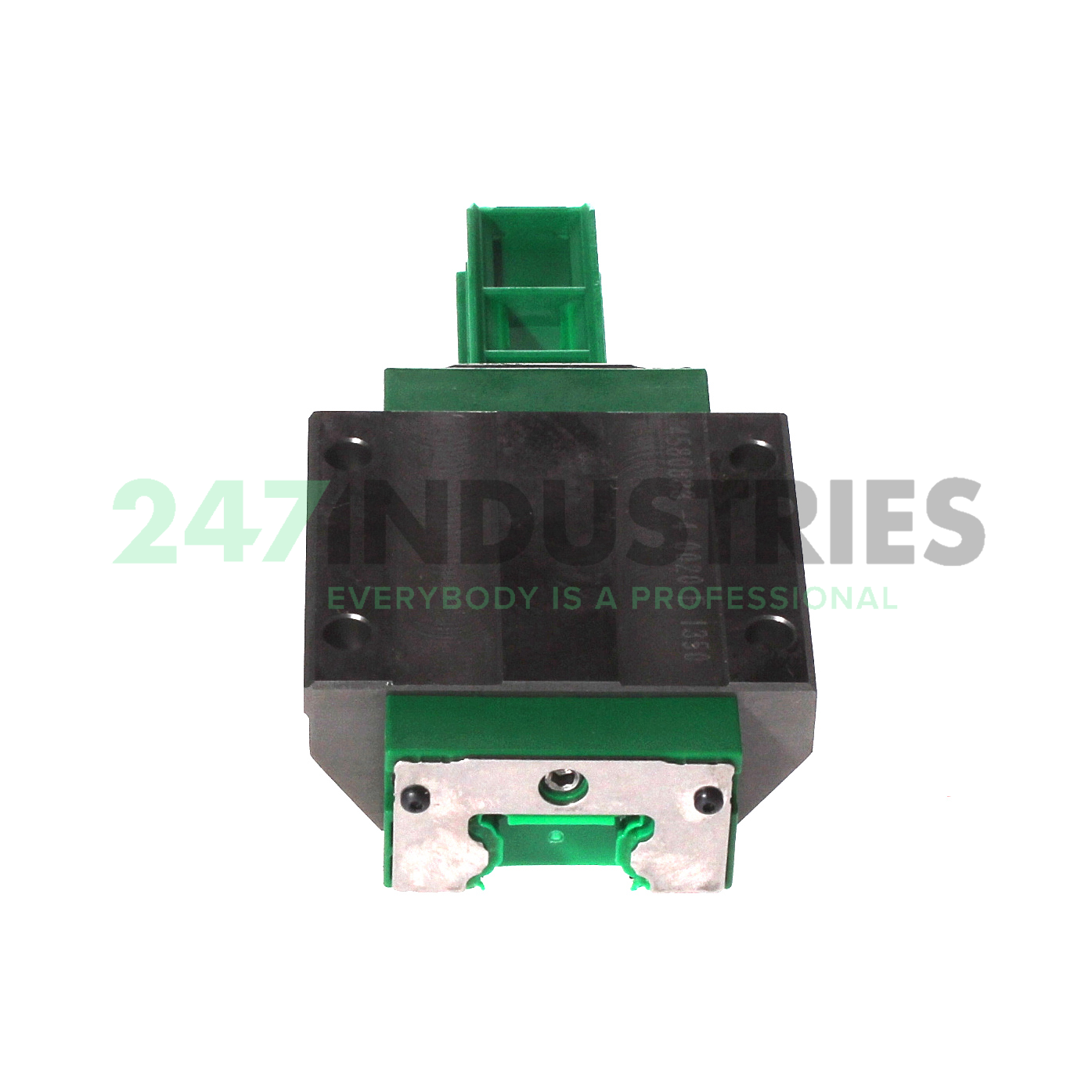

KWVE20-B-E-V0-G1 INA

All dimensions

1. Inner (d) MM 23,5
2. Outer (D) MM 59
3. Width (B) MM 71,4
4. Inner (d) Inch 0.9252
5. Outer (D) Inch 2.3228
6. Width (B) Inch 2.811
7. Width carriage (B) mm 59
8. Overall length carriage (L) mm 71,4

Suffix description

1. B Standard Carriage, Four-Row, Full Complement Ball Set
2. E Expanded Design (Carriage Without Screw Threads)
3. V0 Little To No Preload
4. G1 Precision Class 1

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number KWVE20-B-E-V0-G1 INA
4. Also known as 0658220990120
   KWVE20-B-E-G1-V0

5. EAN 4054362969280
6. Category Linear Plain Bearing Unit

Weight and Dimensions

1. Weight (kg) 0.39

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Dynamic load rating (C) 13100
2. Static load rating (C 0) 27000
3. Static moment rating about X axis (M 0x) 332
4. Static moment rating about Y axis (M 0y) 240
5. Static moment rating about Z axis (M 0z) 240
6. ECLASS number 23-30-04-90
7. ECLASS2 number 23-30-04-90
8. Medias description Carriages KWVE..-B-E, standard carriage, four-row, full complement, expanded type
