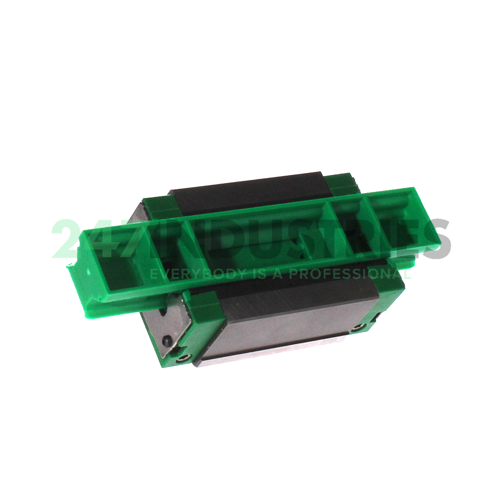

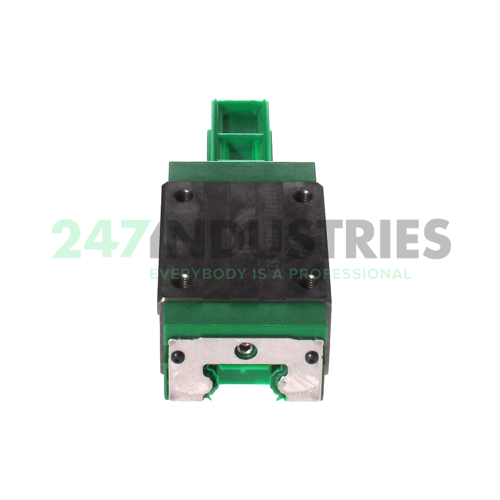

KWVE20-B-S-V1-G1 INA

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 44
3. Width (B) MM 71,4
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.7323
6. Width (B) Inch 2.811
7. Width carriage (B) mm 44
8. Overall length carriage (L) mm 71,4

Suffix description

1. B Version
2. S Narrow Carriage
3. V1 Slight Preload
4. G1 Precision Class 1

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number KWVE20-B-S-V1-G1 INA
4. Also known as 0125089260220
   KWVE20-B-S-G1-V1

5. EAN 4054364003531
6. Category Linear Plain Bearing Unit

Weight and Dimensions

1. Weight (kg) 0.34

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Dynamic load rating (C) 13100
2. Static load rating (C 0) 27000
3. Static moment rating about X axis (M 0x) 332
4. Static moment rating about Y axis (M 0y) 240
5. Static moment rating about Z axis (M 0z) 240
6. ECLASS number 23-30-04-90
7. ECLASS2 number 23-30-04-90
8. Medias description Carriages KWVE..-B-S, narrow carriage, four-row
