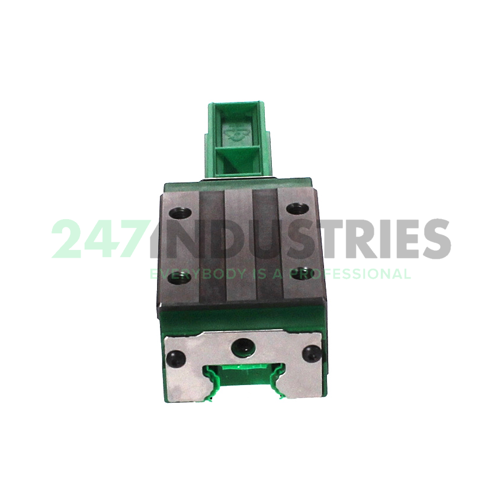

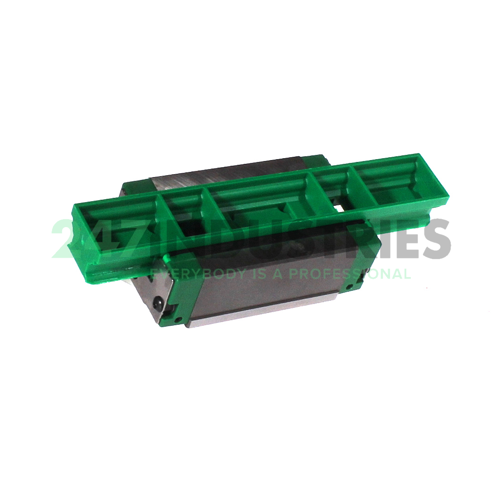

KWVE25-B-ES-V2-G2 INA

All dimensions

1. Inner (d) MM 23
2. Outer (D) MM 48
3. Inner (d) Inch 0.9055
4. Outer (D) Inch 1.8898
5. Width carriage (B) mm 48
6. Overall length carriage (L) mm 83,3

Suffix description

1. B Version
2. ES Expanded Design, Narrow Carriage
3. V2 Preload Class 2
4. G2 Precision Class 2

Technical details

1. Availability 10 pcs
2. Brand INA
3. Item number KWVE25-B-ES-V2-G2 INA
4. Also known as 0570038900330
   KWVE25-B-ES-G2-V2

5. EAN 4054362980896
6. Category Linear Plain Bearing Unit

Weight and Dimensions

1. Weight (kg) 0.522

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Dynamic load rating (C) 17900
2. Static load rating (C 0) 37000
3. Static moment rating about X axis (M 0x) 510
4. Static moment rating about Y axis (M 0y) 395
5. Static moment rating about Z axis (M 0z) 395
6. ECLASS number 23-30-04-90
7. ECLASS2 number 23-30-04-90
8. Medias description Carriages KWVE..-B-ES, carriage for four-row linear ball bearing and guideway assembly, expanded type, narrow design
