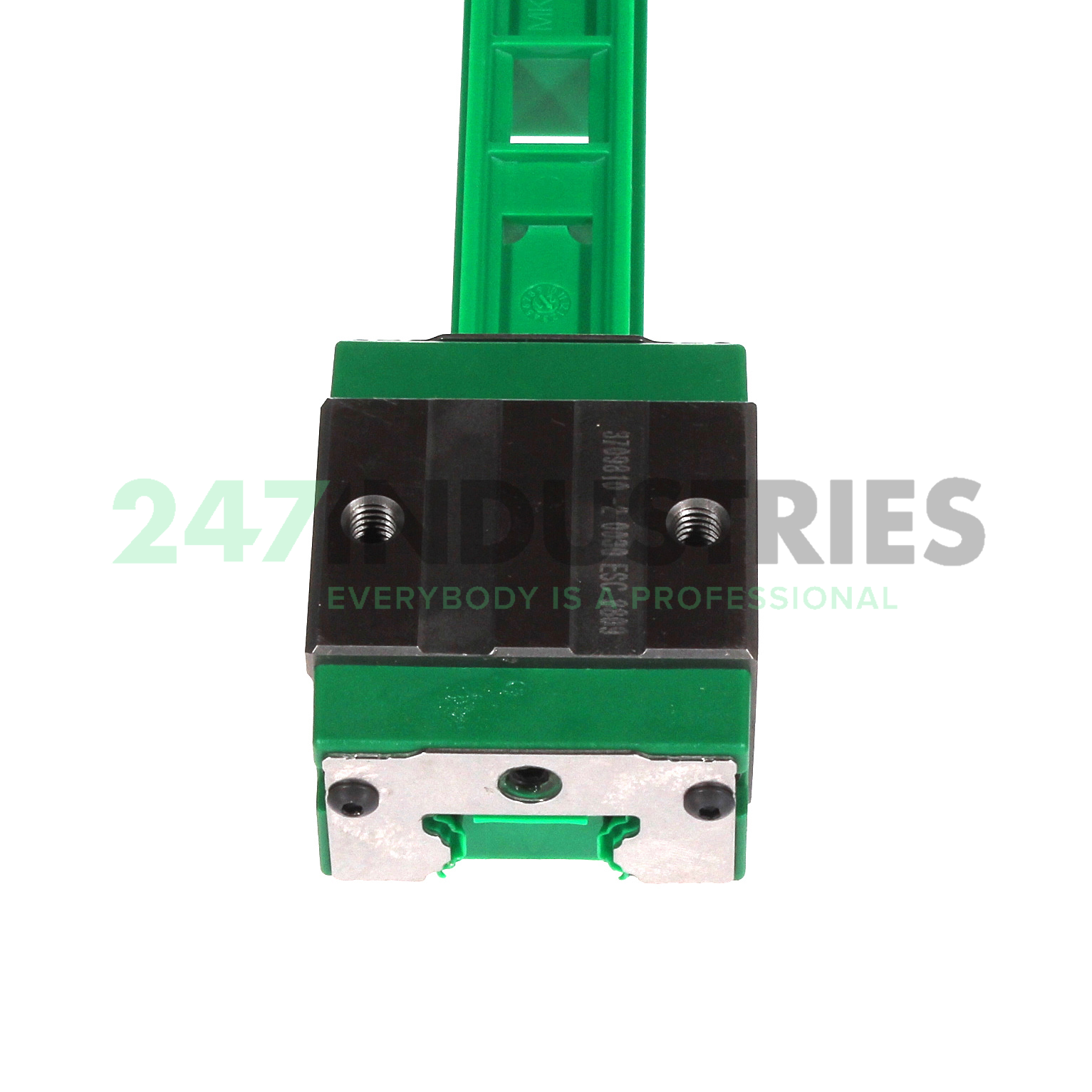

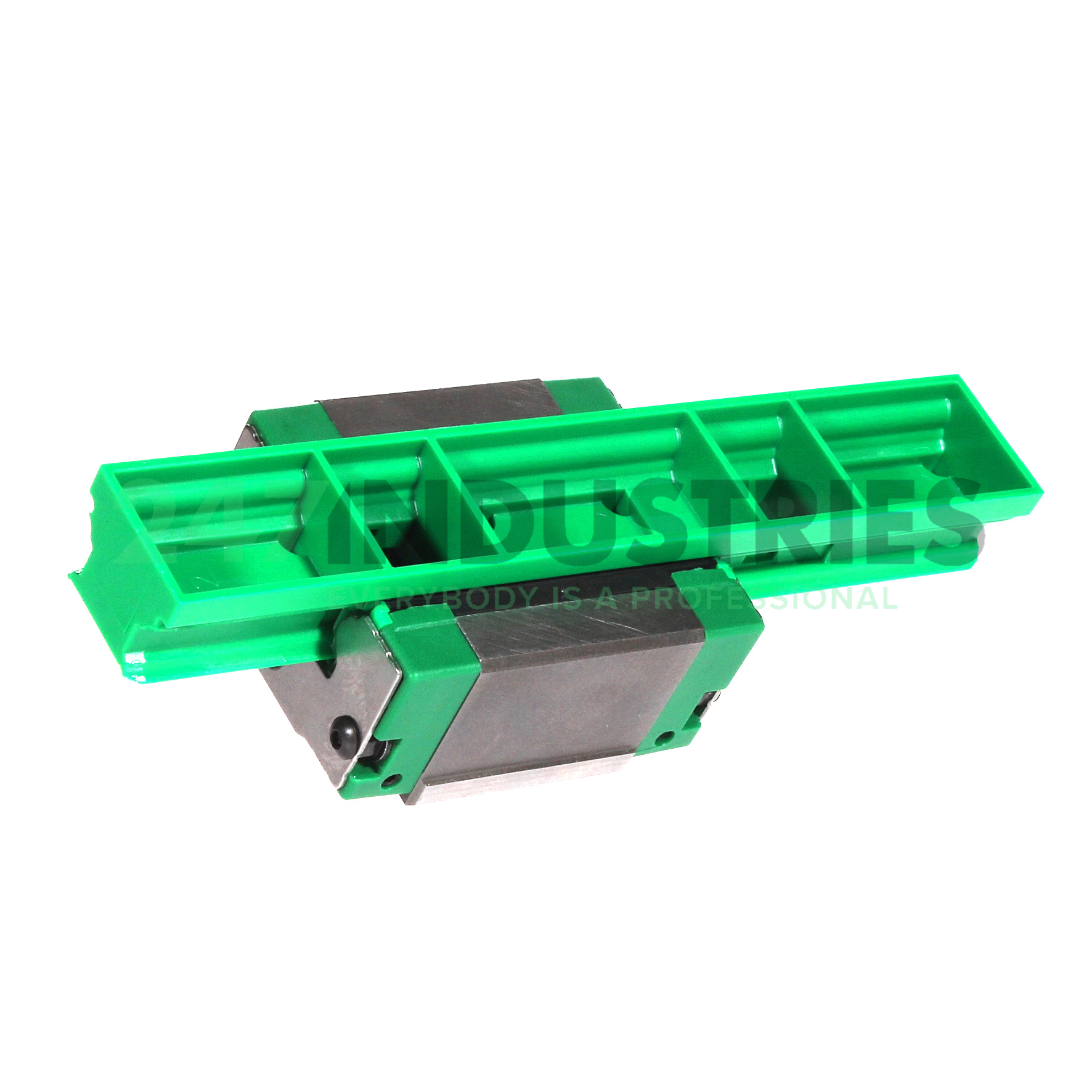

KWVE25-B-ESC-V2-G2 INA

All dimensions

1. Inner (d) MM 23
2. Outer (D) MM 48
3. Width (B) MM 58,2
4. Inner (d) Inch 0.9055
5. Outer (D) Inch 1.8898
6. Width (B) Inch 2.2913
7. Width carriage (B) mm 48
8. Overall length carriage (L) mm 58,2

Suffix description

1. B Version
2. ESC Expanded Design, Short, Narrow Carriage
3. V2 Preload Class 2
4. G2 Precision Class 2

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number KWVE25-B-ESC-V2-G2 INA
4. Also known as 0116942110330
   KWVE25-B-ESC-G2-V2

5. EAN 4054362979845
6. Category Linear Plain Bearing Unit

Weight and Dimensions

1. Weight (kg) 0.3

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Dynamic load rating (C) 12500
2. Static load rating (C 0) 22200
3. Static moment rating about X axis (M 0x) 305
4. Static moment rating about Y axis (M 0y) 155
5. Static moment rating about Z axis (M 0z) 155
6. ECLASS number 23-30-04-90
7. ECLASS2 number 23-30-04-90
8. Medias description Carriages KWVE..-B-ESC, narrow, short carriage, four-row, full complement ball set
