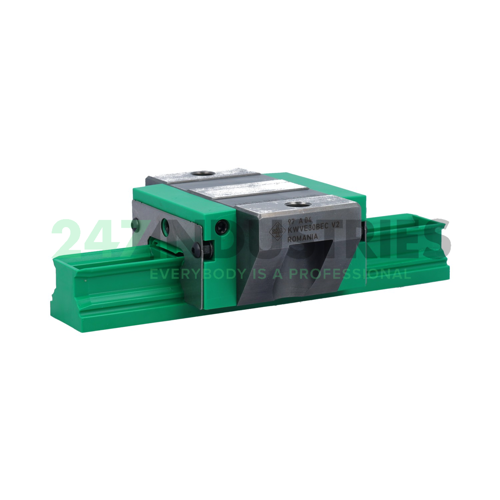

KWVE30-B-EC-V2-G1 INA

All dimensions

1. Inner (d) MM 28
2. Outer (D) MM 90
3. Width (B) MM 69
4. Inner (d) Inch 1.1024
5. Outer (D) Inch 3.5433
6. Width (B) Inch 2.7165
7. Width carriage (B) mm 90
8. Overall length carriage (L) mm 69

Suffix description

1. B Version
2. EC Expanded Design, Short Carriage (Carriage Without Screw Threads)
3. V2 Preload Class 2
4. G1 Precision Class 1

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number KWVE30-B-EC-V2-G1 INA
4. Also known as 0200283500320
   KWVE30-B-EC-G1-V2

5. EAN 4054362993803
6. Category Linear Plain Bearing Unit

Weight and Dimensions

1. Weight (kg) 0.75

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Dynamic load rating (C) 18700
2. Static load rating (C 0) 31500
3. Static moment rating about X axis (M 0x) 554
4. Static moment rating about Y axis (M 0y) 248
5. Static moment rating about Z axis (M 0z) 248
6. ECLASS number 23-30-04-90
7. ECLASS2 number 23-30-04-90
8. Medias description Carriages KWVE..-B-EC, expanded interchangeability, short carriage, four-row
