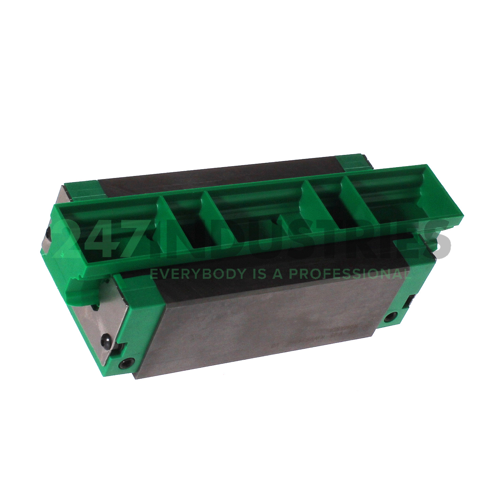

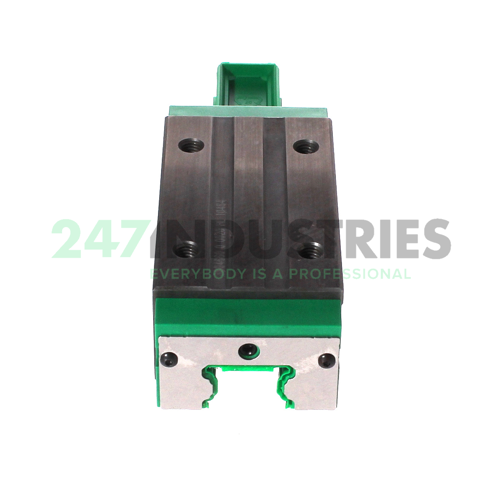

KWVE30-B-HL-V0-G1 INA

All dimensions

1. Inner (d) MM 28
2. Outer (D) MM 60
3. Width (B) MM 127
4. Inner (d) Inch 1.1024
5. Outer (D) Inch 2.3622
6. Width (B) Inch 5
7. Width carriage (B) mm 60
8. Overall length carriage (L) mm 127

Suffix description

1. B Version
2. HL High, Long Carriage
3. V0 Little To No Preload
4. G1 Precision Class 1

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number KWVE30-B-HL-V0-G1 INA
4. Also known as 0199905530120
   KWVE30-B-HL-G1-V0

5. EAN 4054366337306
6. Category Linear Plain Bearing Unit

Weight and Dimensions

1. Weight (kg) 1.43

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Dynamic load rating (C) 34500
2. Static load rating (C 0) 74000
3. Static moment rating about X axis (M 0x) 1310
4. Static moment rating about Y axis (M 0y) 1240
5. Static moment rating about Z axis (M 0z) 1240
6. ECLASS number 23-30-04-90
7. ECLASS2 number 23-30-04-90
8. Medias description Carriages KWVE..-B-HL, high, narrow, long carriage, four-row
