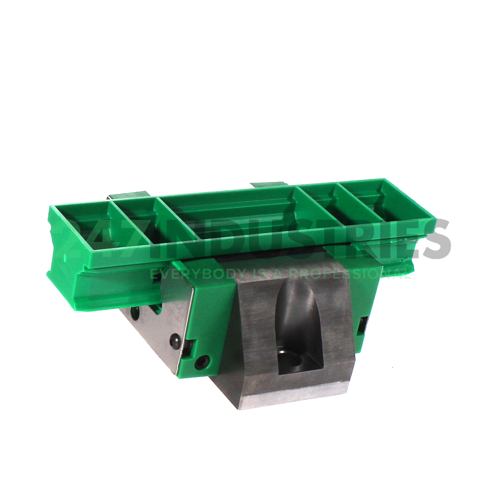

KWVE35-B-EC-V0-G2 INA

All dimensions

1. Inner (d) MM 34
2. Outer (D) MM 100
3. Width (B) MM 76,2
4. Inner (d) Inch 1.3386
5. Outer (D) Inch 3.937
6. Width (B) Inch 3
7. Width carriage (B) mm 100
8. Overall length carriage (L) mm 76,2

Suffix description

1. B Version
2. EC Expanded Design, Short Carriage (Carriage Without Screw Threads)
3. V0 Little To No Preload
4. G2 Precision Class 2

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number KWVE35-B-EC-V0-G2 INA
4. Also known as 0200582760130
   KWVE35-B-EC-G2-V0

5. EAN 4054366341495
6. Category Linear Plain Bearing Unit

Weight and Dimensions

1. Weight (kg) 1.04

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Dynamic load rating (C) 24600
2. Static load rating (C 0) 39000
3. Static moment rating about X axis (M 0x) 790
4. Static moment rating about Y axis (M 0y) 330
5. Static moment rating about Z axis (M 0z) 330
6. ECLASS number 23-30-04-90
7. ECLASS2 number 23-30-04-90
8. Medias description Carriages KWVE..-B-EC, expanded interchangeability, short carriage, four-row
