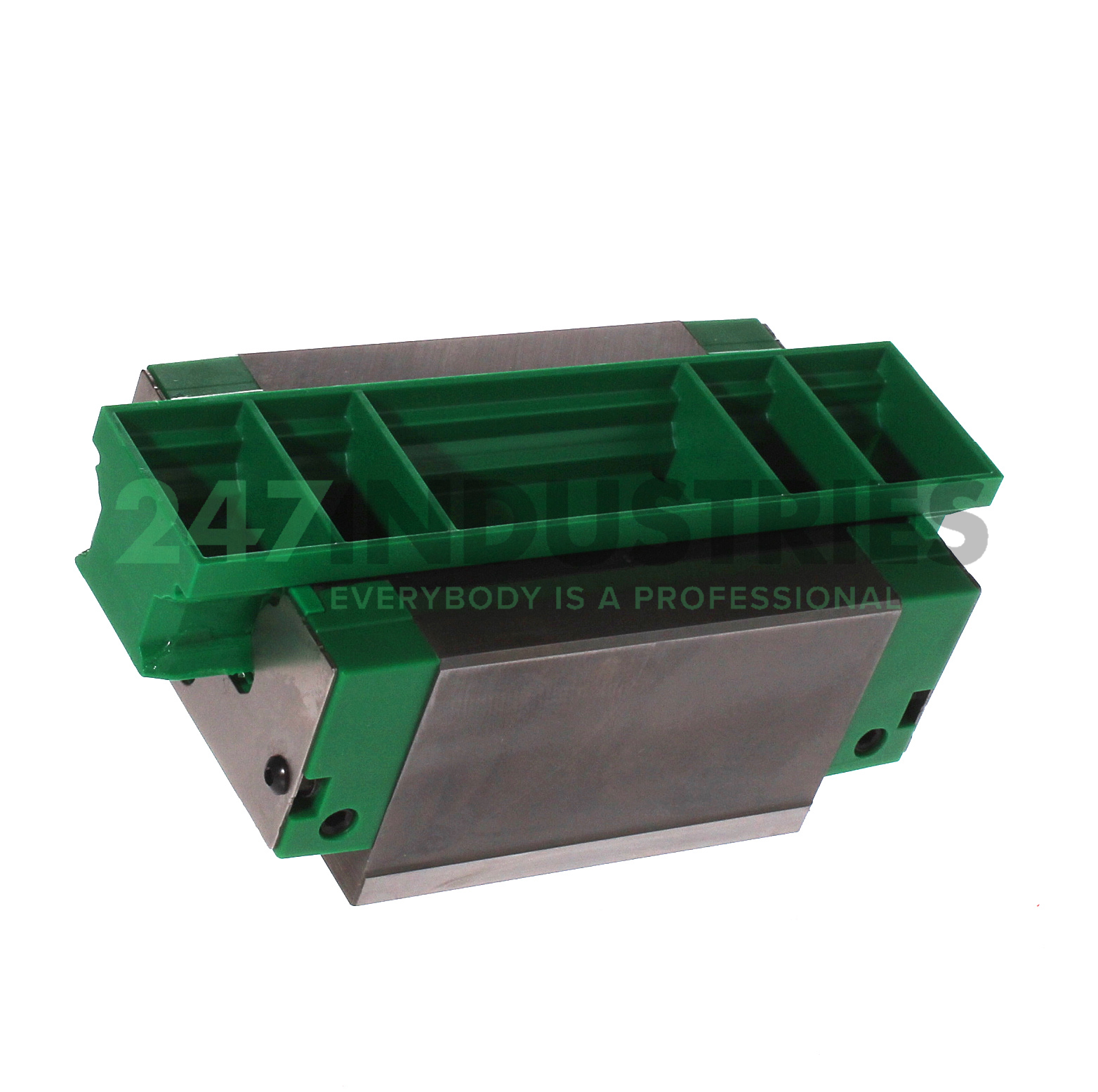

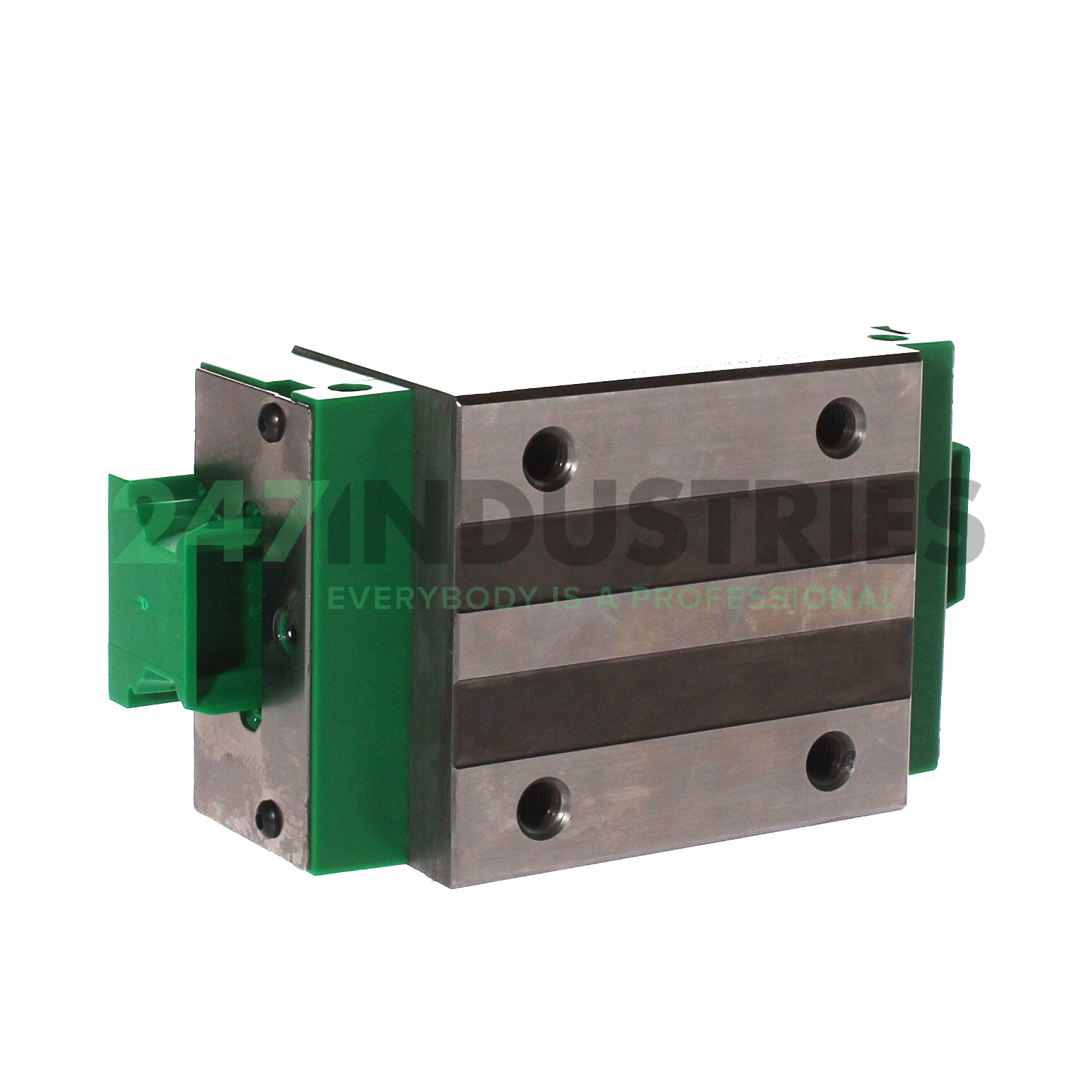

KWVE35-B-H-V2-G3 INA

All dimensions

1. Inner (d) MM 34
2. Outer (D) MM 70
3. Width (B) MM 112
4. Inner (d) Inch 1.3386
5. Outer (D) Inch 2.7559
6. Width (B) Inch 4.4094
7. Width carriage (B) mm 70
8. Overall length carriage (L) mm 112

Suffix description

1. B Version
2. H High Carriage
3. V2 Preload Class 2
4. G3 Precision Class 3

Technical details

1. Availability 12 pcs
2. Brand INA
3. Item number KWVE35-B-H-V2-G3 INA
4. Also known as 0200371980340
   KWVE35-B-H-G3-V2

5. EAN 4054366338624
6. Category Linear Plain Bearing Unit

Weight and Dimensions

1. Weight (kg) 1.71

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Dynamic load rating (C) 38000
2. Static load rating (C 0) 72000
3. Static moment rating about X axis (M 0x) 1465
4. Static moment rating about Y axis (M 0y) 1020
5. Static moment rating about Z axis (M 0z) 1020
6. ECLASS number 23-30-04-90
7. ECLASS2 number 23-30-04-90
8. Medias description Carriages KWVE..-B-H, high, narrow carriage, four-row
