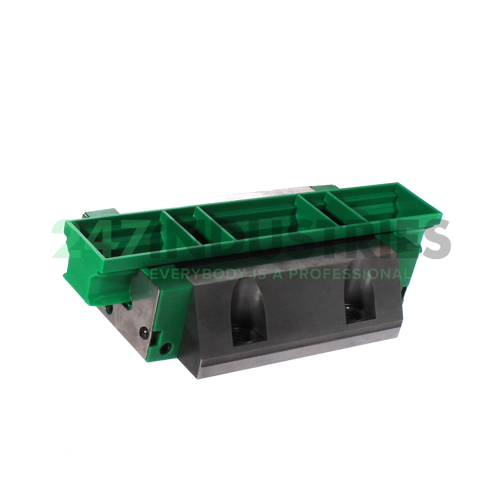

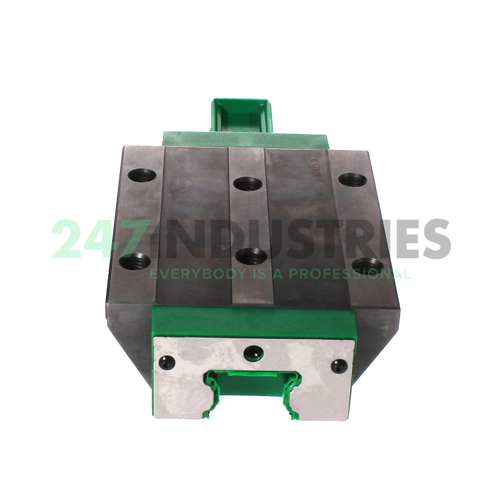

KWVE35-B-NL-V0-G1 INA

All dimensions

1. Inner (d) MM 34
2. Outer (D) MM 100
3. Width (B) MM 145
4. Inner (d) Inch 1.3386
5. Outer (D) Inch 3.937
6. Width (B) Inch 5.7087
7. Width carriage (B) mm 100
8. Overall length carriage (L) mm 145

Suffix description

1. B Version
2. NL Low, Long Carriage
3. V0 Little To No Preload
4. G1 Precision Class 1

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number KWVE35-B-NL-V0-G1 INA
4. Also known as 0200410120120
   KWVE35-B-NL-G1-V0

5. EAN 4054366339539
6. Category Linear Plain Bearing Unit

Weight and Dimensions

1. Weight (kg) 2.23

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Dynamic load rating (C) 47500
2. Static load rating (C 0) 100000
3. Static moment rating about X axis (M 0x) 2625
4. Static moment rating about Y axis (M 0y) 1890
5. Static moment rating about Z axis (M 0z) 1890
6. ECLASS number 23-30-04-90
7. ECLASS2 number 23-30-04-90
8. Medias description Carriages KWVE..-B-NL, low, long carriage, four-row
