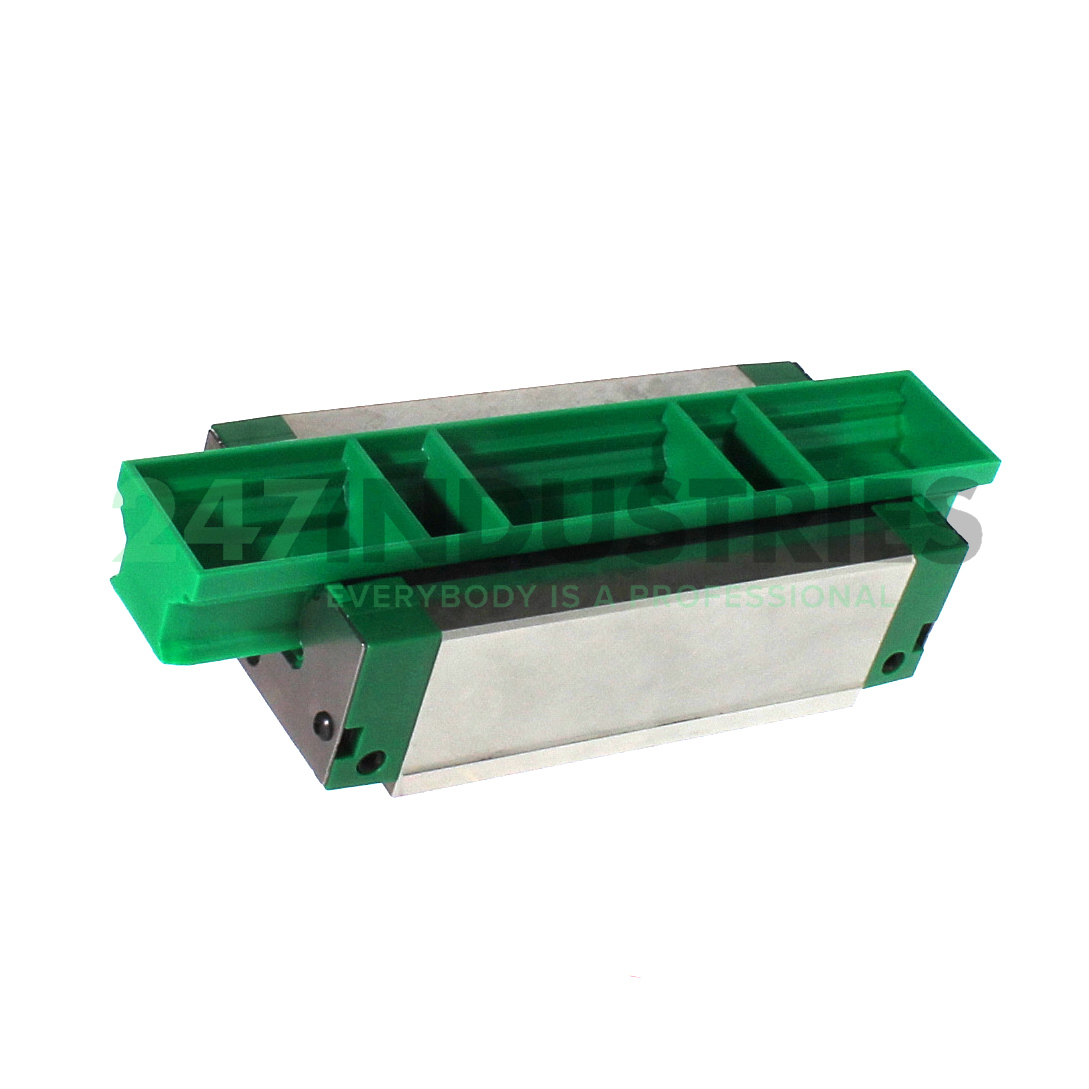

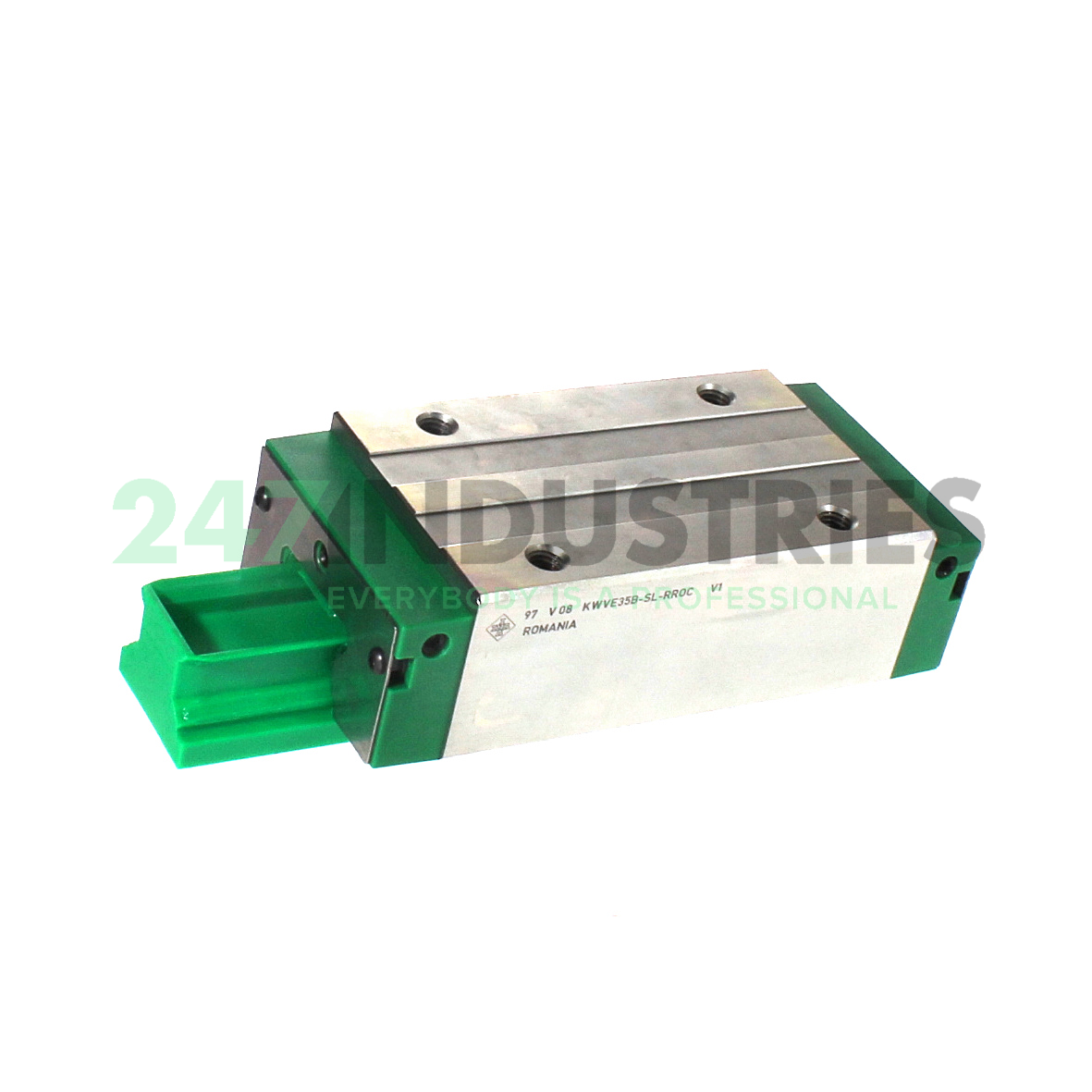

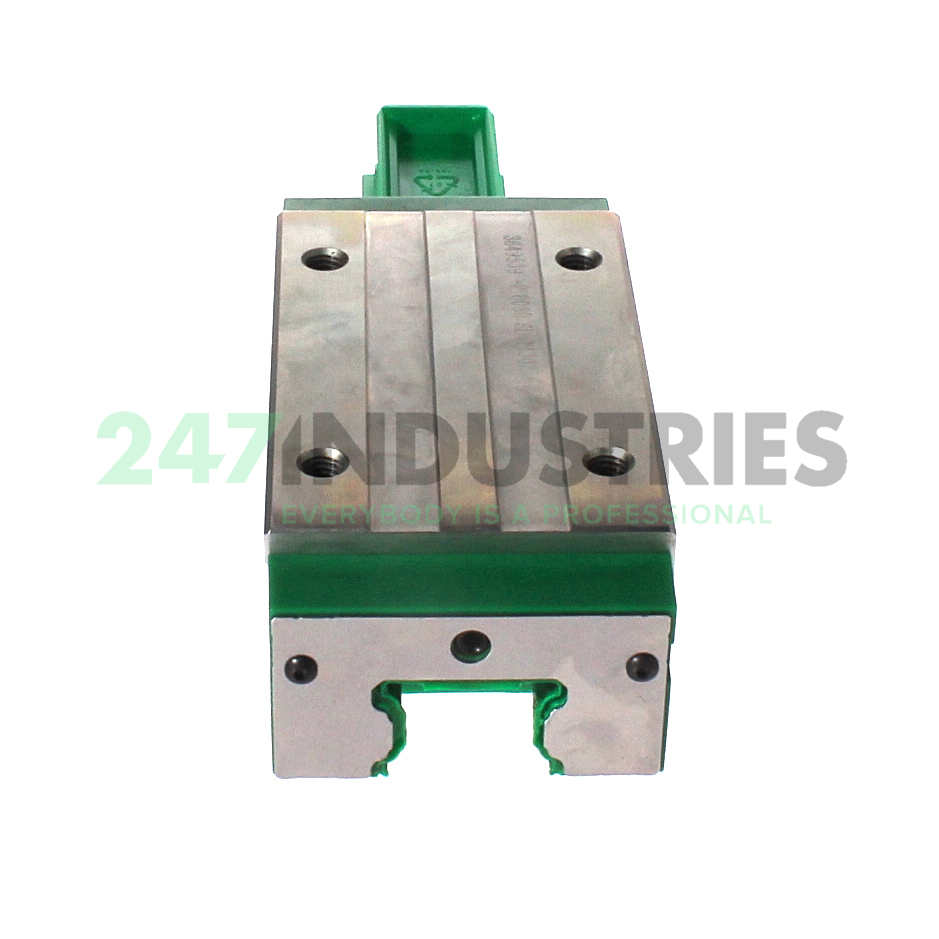

KWVE35-B-SL-RROC-V1-G3 INA

All dimensions

1. Inner (d) MM 34
2. Outer (D) MM 70
3. Width (B) MM 145
4. Inner (d) Inch 1.3386
5. Outer (D) Inch 2.7559
6. Width (B) Inch 5.7087
7. Width carriage (B) mm 70
8. Overall length carriage (L) mm 145

Suffix description

1. B Version
2. SL Narrow, Long Carriage
3. RROC Protected Against Corrosion By Corrotect® Special Coating - Cr(VI)-Free
4. V1 Slight Preload
5. G3 Precision Class 3

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number KWVE35-B-SL-RROC-V1-G3 INA
4. Also known as 0782398420240

5. EAN 4054364011536
6. Category Linear Plain Bearing Unit

Weight and Dimensions

1. Weight (kg) 1.81

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Dynamic load rating (C) 47500
2. Static load rating (C 0) 100000
3. Static moment rating about X axis (M 0x) 2625
4. Static moment rating about Y axis (M 0y) 1890
5. Static moment rating about Z axis (M 0z) 1890
