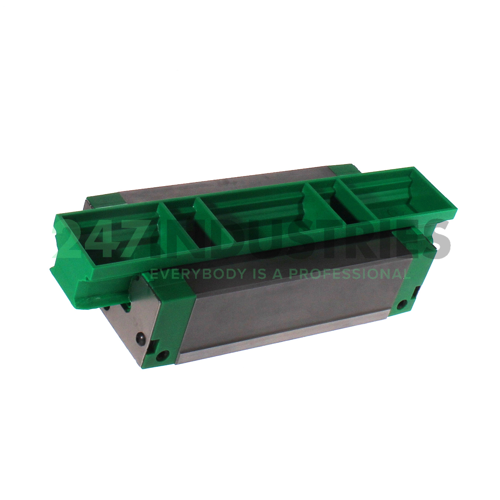

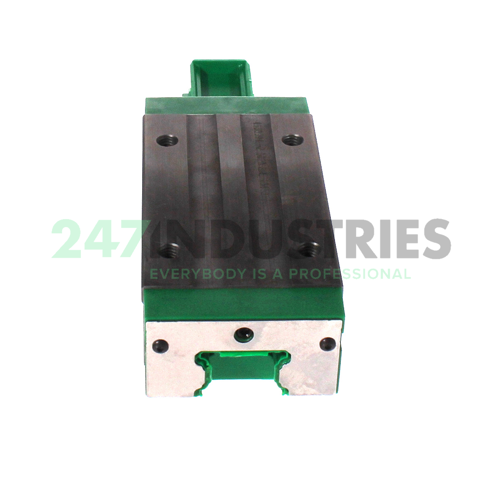

KWVE35-B-SNL-V2-G1 INA

All dimensions

1. Inner (d) MM 34
2. Outer (D) MM 70
3. Width (B) MM 145
4. Inner (d) Inch 1.3386
5. Outer (D) Inch 2.7559
6. Width (B) Inch 5.7087
7. Width carriage (B) mm 70
8. Overall length carriage (L) mm 145

Suffix description

1. B Version
2. SNL Narrow, Low, Long Carriage
3. V2 Preload Class 2
4. G1 Precision Class 1

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number KWVE35-B-SNL-V2-G1 INA
4. Also known as 0200516970320
   KWVE35-B-SNL-G1-V2

5. EAN 4054366340214
6. Category Linear Plain Bearing Unit

Weight and Dimensions

1. Weight (kg) 1.72

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Dynamic load rating (C) 47500
2. Static load rating (C 0) 100000
3. Static moment rating about X axis (M 0x) 2625
4. Static moment rating about Y axis (M 0y) 1890
5. Static moment rating about Z axis (M 0z) 1890
6. ECLASS number 23-30-04-90
7. ECLASS2 number 23-30-04-90
8. Medias description Carriages KWVE..-B-SNL, narrow, low, long carriage, four-row
