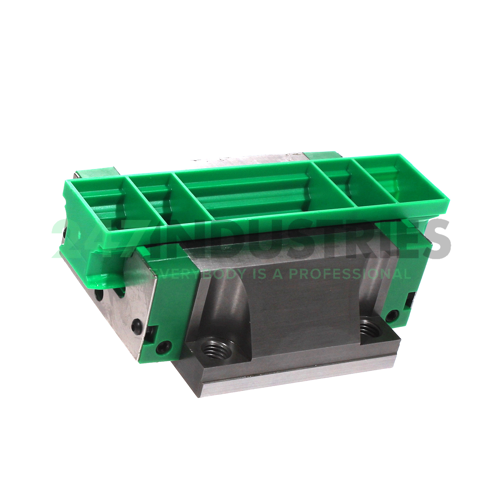

KWVE35-B-V0-G3 INA

All dimensions

1. Inner (d) MM 34
2. Outer (D) MM 100
3. Width (B) MM 112
4. Inner (d) Inch 1.3386
5. Outer (D) Inch 3.937
6. Width (B) Inch 4.4094
7. Width carriage (B) mm 100
8. Overall length carriage (L) mm 112

Suffix description

1. B Version
2. V0 Little To No Preload
3. G3 Precision Class 3

Technical details

1. Availability 20 pcs
2. Brand INA
3. Item number KWVE35-B-V0-G3 INA
4. Also known as 0174205550140
   KWVE35-B-G3-V0

5. EAN 4054364003685
6. Category Linear Plain Bearing Unit

Weight and Dimensions

1. Weight (kg) 1.75

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Dynamic load rating (C) 38000
2. Static load rating (C 0) 72000
3. Static moment rating about X axis (M 0x) 1465
4. Static moment rating about Y axis (M 0y) 1020
5. Static moment rating about Z axis (M 0z) 1020
6. ECLASS number 23-30-04-90
7. ECLASS2 number 23-30-04-90
8. Medias description Carriages KWVE..-B, standard carriage, four-row, full complement ball set
