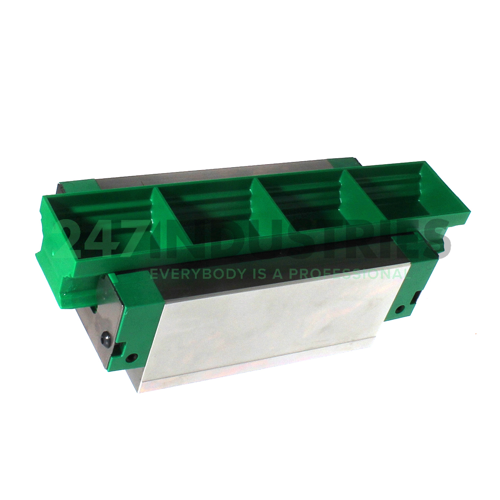

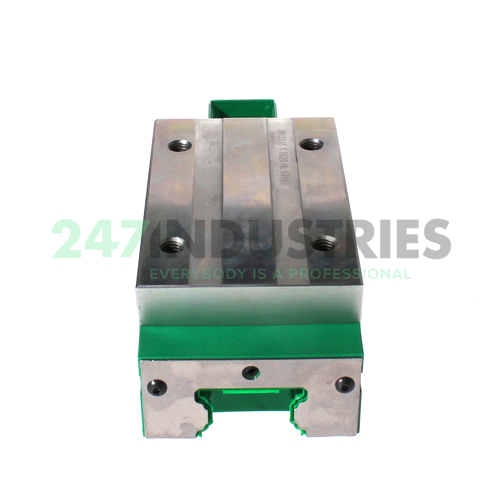

KWVE45-B-HL-RROC-V1-G3 INA

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 86
3. Width (B) MM 172,7
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.3858
6. Width (B) Inch 6.7992
7. Width carriage (B) mm 86
8. Overall length carriage (L) mm 172,7

Suffix description

1. B Version
2. HL High, Long Carriage
3. RROC Protected Against Corrosion By Corrotect® Special Coating - Cr(VI)-Free
4. V1 Slight Preload
5. G3 Precision Class 3

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number KWVE45-B-HL-RROC-V1-G3 INA
4. Also known as 0782214470240

5. EAN 4054366882769
6. Category Linear Plain Bearing Unit

Weight and Dimensions

1. Weight (kg) 4.27

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Dynamic load rating (C) 82000
2. Static load rating (C 0) 181000
3. Static moment rating about X axis (M 0x) 4635
4. Static moment rating about Y axis (M 0y) 4000
5. Static moment rating about Z axis (M 0z) 4000
