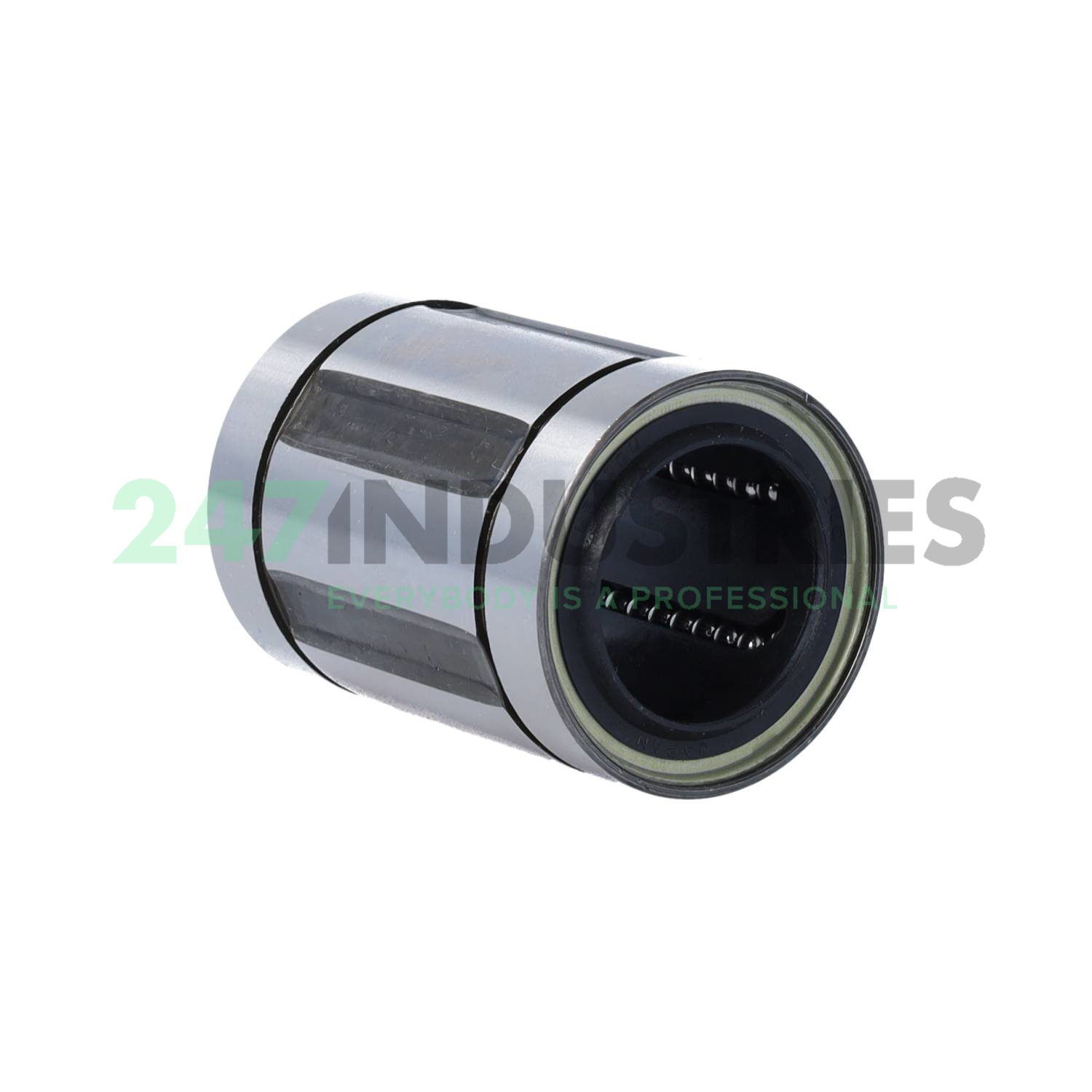

LBD30UU IKO

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 45
3. Width (B) MM 64
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 1.7717
6. Width (B) Inch 2.5197

Suffix description

1. UU The Two Seal Types Incorporate Seals With Superior Dust Protection Performance At Both Ends Of The External Cylinder For Preventing Intrusion Of Foreign Matter. The Maximum Allowable Temperature For Seals Is 120°C

Technical details

1. Availability 1 pc
2. Brand IKO
3. Item number LBD30UU IKO
4. Category Linear Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.22

Product Properties

1. Seal 2RS - Rubber Seal on Two Sides
